Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11055
11055
11065
11065
13107
13107
13107A
13107A
13234
13234
14091
14091
14091A
14091A
39112
39112
39112A
39112A
39145
39145
43058
43058
52014
52014
52014
52014
52014A
52014A
59136
59136
59255
59255
59266
59266
59366
59366
59476
59476
59477
59477
59496
59496
92002
92002
92002
92002
92002A
92002A
92002A
92002A
92009
92009
92015
92015
92022
92022
92022A
92022A
92022A
92022A
92033
92033
92045
92045
92045
92045
92045A
92045A
92049
92049
92049
92049
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92093
92093
92122
92122
92139
92139
92139A
92139A
92139A
92139A
92139A
92139A
92150
92150
410
410
410A
410A
410B
410B
92150A
92150A
92150B
92150B
92150B
92150B
92150B
92150B
92150B
92150B
92151
92151
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92153
92153
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154D
92154D
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92210
92210

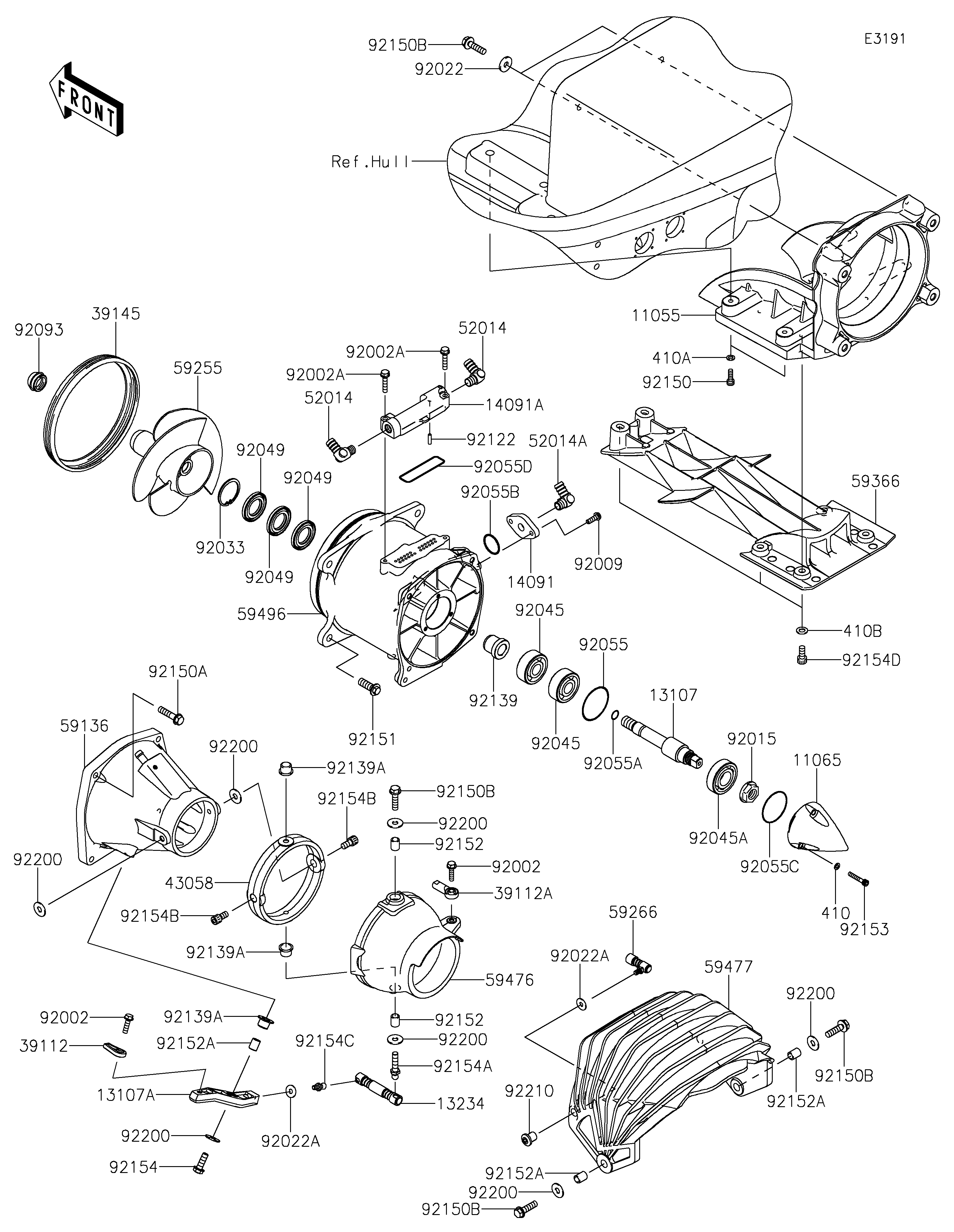

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,PUMP | 11055 | 11055-3710 | 1 | ||
| CAP | 11065 | 11065-0888 | 1 | ||
| SHAFT | 13107 | 13107-0764 | 1 | ||
| SHAFT | 13107A | 13107-3804 | 1 | ||
| SHAFT-COMP | 13234 | 13234-3712 | 1 | ||
| COVER,COOLING TUBE | 14091 | 14091-3808 | 1 | ||
| COVER,VANE GUIDE | 14091A | 14091-3817 | 1 | ||
| RODEND-TIE | 39112 | 39112-3703 | 1 | ||
| RODEND-TIE | 39112A | 39112-3707 | 1 | ||
| TRIM-SEAL | 39145 | 39145-3809 | 1 | ||
| RING | 43058 | 43058-3735 | 1 | ||
| ELBOW | 52014 | 52014-3711 | 2 | ||
| ELBOW | 52014A | 52014-3727 | 1 | ||
| NOZZLE-PUMP | 59136 | 59136-3768 | 1 | ||
| IMPELLER-COMP | 59255 | 59255-0001 | 1 | ||
| JOINT-BALL | 59266 | 59266-3710 | 1 | ||
| GRATE | 59366 | 59366-3724 | 1 | ||
| NOZZLE-STRG | 59476 | 59476-0063 | 1 | ||
| BUCKET-REVERSE | 59477 | 59477-0001 | 1 | ||
| VANE-GUIDE | 59496 | 59496-3767 | 1 | ||
| BOLT,6X25 | 92002 | 92002-3714 | 2 | ||
| BOLT,6X30 | 92002A | 92002-3726 | 2 | ||
| SCREW,6X20 | 92009 | 92009-3848 | 2 | ||
| NUT,18MM | 92015 | 92015-1512 | 1 | ||
| WASHER,8.4X23X2.5 | 92022 | 92022-3744 | 2 | ||
| WASHER | 92022A | 92022-567 | 2 | ||
| RING-SNAP | 92033 | 92033-3730 | 1 | ||
| BEARING-BALL,6303R-6 | 92045 | 92045-3740 | 2 | ||
| BEARING-BALL,62/222RS | 92045A | 92045-3743 | 1 | ||
| SEAL-OIL | 92049 | 92049-3739 | 3 | ||
| RING-O,49.7X2.4 | 92055 | 92055-0183 | 1 | ||
| RING-O,12X1.5 | 92055A | 92055-025 | 1 | ||
| RING-O,27.7X1.9 | 92055B | 92055-1272 | 1 | ||
| RING-O | 92055C | 92055-3741 | 1 | ||
| RING-O,66.5X2.0 | 92055D | 92055-3784 | 1 | ||
| SEAL | 92093 | 92093-3749 | 1 | ||
| ROLLER | 92122 | 92122-0044 | 1 | ||
| BUSHING | 92139 | 92139-0767 | 1 | ||
| BUSHING | 92139A | 92139-3720 | 3 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-3775 | 4 | ||
| W-PLAIN-S,5MM | 410 | 410S0500 | 3 | ||
| WASHER-PLAIN-SMALL,6MM | 410A | 410S0600 | 4 | ||
| WASHER-PLAIN-SMALL,8MM | 410B | 410S0800 | 6 | ||
| BOLT,8X35 | 92150A | 92150-3792 | 4 | ||
| BOLT,FLANGED,8X30 | 92150B | 92150-3803 | 5 | ||
| BOLT,10X30 | 92151 | 92151-3706 | 4 | ||
| COLLAR,8.2X11.8X13.5 | 92152 | 92152-1694 | 2 | ||
| COLLAR,8.2X11.8X15 | 92152A | 92152-3703 | 3 | ||
| BOLT,SOCKET,5X30 | 92153 | 92153-3742 | 3 | ||
| BOLT,FLANGED,8X25 | 92154 | 92154-3705 | 1 | ||
| BOLT,BALL,8X30 | 92154A | 92154-3706 | 1 | ||
| BOLT,SOCKET,8X15 | 92154B | 92154-3707 | 2 | ||
| BOLT,BALL,6MM | 92154C | 92154-3710 | 1 | ||
| BOLT,SOCKET,8X18 | 92154D | 92154-3711 | 6 | ||
| WASHER,8.0X22.0X1.5 | 92200 | 92200-0174 | 7 | ||
| NUT,6MM | 92210 | 92210-3789 | 1 |
