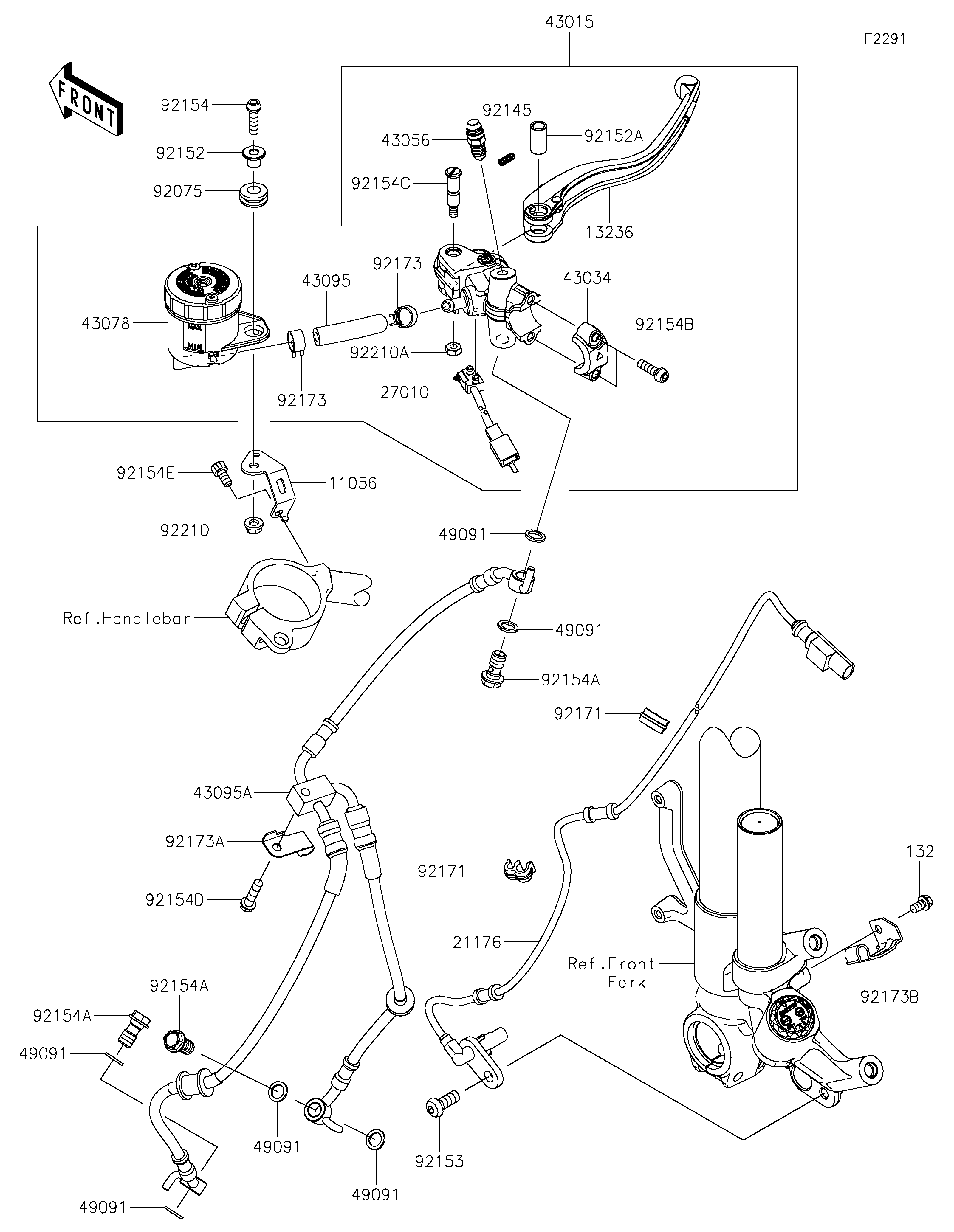

2019 NINJA® ZX™-10R - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11056
132
13236
21176
27010
43015
43034
43056
43078
43095
43095A
49091
49091
49091
49091
49091
49091
92075
92145
92152
92152A
92153
92154
92154A
92154A
92154A
92154B
92154C
92154D
92154E
92171
92171
92173
92173
92173A
92173B
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR TANK 11056 11056-7023 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
LEVER-COMP,BRAKE 13236 13236-0770 1
SENSOR,FR WHEEL 21176 21176-0813 1
SWITCH,BRAKE 27010 27010-0831 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0668 1
HOLDER-BRAKE 43034 43034-0121 1
BREATHER-BRAKE 43056 43056-0019 1
RESERVOIR 43078 43078-0577 1
HOSE-BRAKE 43095 43095-0908 1
HOSE-BRAKE,M/CYL.-CALIPER 43095A 43095-0922 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 6
DAMPER 92075 92075-1028 1
SPRING 92145 92145-1683 1
COLLAR,6X16X10.6 92152 92152-2110 1
COLLAR,LEVER 92152A 92152-2151 1
BOLT,SOCKET,8X20 92153 92153-0912 1
BOLT,SOCKET,6X22 92154 92154-1456 1
BOLT,BANJO,10X19 92154A 92154-1554 3
BOLT,SOCKET,6X20 92154B 92154-1644 2
BOLT,LEVER 92154C 92154-1809 1
BOLT,FLANGED-SMALL,6X25 92154D 92154-1836 1
BOLT,SOCKET,6X12 92154E 92154-1978 1
CLAMP 92171 92171-0921 2
CLAMP,HOSE 92173 92173-1498 2
CLAMP,UNDER BRACKET 92173A 92173-1507 1
CLAMP,AXLE,LH 92173B 92173-1887 1
NUT,6MM 92210 92210-0991 1
NUT,U 92210A 92210-1424 1
