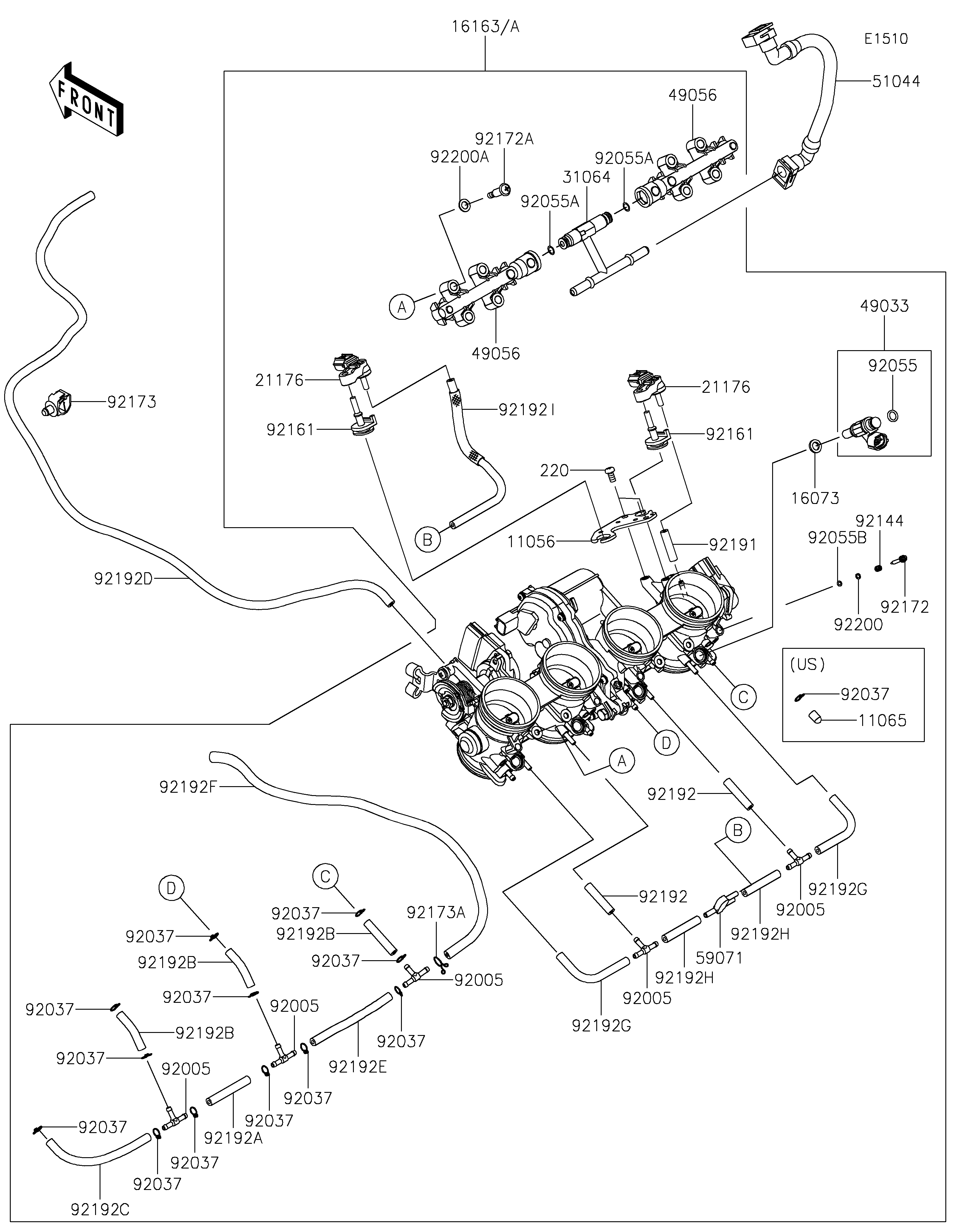

Parts Diagrams |
11056
11056
11065
11065
16073
16073
16163
16163
16163A
16163A
21176
21176
21176
21176
31064
31064
49033
49033
49056
49056
49056
49056
51044
51044
59071
59071
92005
92005
92005
92005
92005
92005
92005
92005
92005
92005
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92055
92055
92055A
92055A
92055A
92055A
92055B
92055B
92144
92144
92161
92161
92161
92161
92172
92172
92172A
92172A
92173
92173
92173A
92173A
92191
92191
92192
92192
92192
92192
92192A
92192A
92192B
92192B
92192B
92192B
92192B
92192B
92192C
92192C
92192D
92192D
220
220
92192E
92192E
92192F
92192F
92192G
92192G
92192G
92192G
92192H
92192H
92192H
92192H
92192I
92192I
92200
92200
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11056 | 11056-7844 | 1 | ||
| CAP | 11065 | 11065-0072 | 4 | US | |
| INSULATOR | 16073 | 16073-0848 | 4 | ||
| THROTTLE-ASSY | 16163 | 16163-0986 | 1 | CA | |
| THROTTLE-ASSY | 16163A | 16163-0987 | 1 | US | |
| SENSOR,PRESSURE | 21176 | 21176-0111 | 2 | ||
| PIPE-COMP | 31064 | 31064-0686 | 1 | ||
| NOZZLE-INJECTION | 49033 | 49033-0564 | 4 | ||
| PIPE-INJECTION | 49056 | 49056-0046 | 2 | ||
| TUBE-ASSY,FUEL | 51044 | 51044-0859 | 1 | ||
| JOINT | 59071 | 59071-0022 | 1 | ||
| FITTING | 92005 | 92005-1380 | 5 | CA | |
| CLAMP,TUBE | 92037 | 92037-1124 | 12 | CA 1 | |
| RING-O,INJECTION NOZZLE | 92055 | 92055-0124 | 4 | ||
| RING-O | 92055A | 92055-0761 | 2 | ||
| RING-O | 92055B | 92055-0840 | 4 | ||
| SPRING,THROTTLE STOP SCREW | 92144 | 92144-1674 | 4 | ||
| DAMPER | 92161 | 92161-0673 | 2 | ||
| SCREW | 92172 | 92172-0156 | 4 | ||
| SCREW,PIPE INJECTION | 92172A | 92172-0828 | 4 | ||
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 1 | ||
| CLAMP | 92173A | 92173-1568 | 1 | CA | |
| TUBE,3.2X7.4X30 | 92191 | 92191-1550 | 1 | ||
| TUBE,3.2X7.4X35 | 92192 | 92192-1234 | 2 | ||
| TUBE,3.5X7.5X55 | 92192A | 92192-1349 | 1 | CA | |
| TUBE,3.5X7.5X40 | 92192B | 92192-1494 | 3 | CA | |
| TUBE,3.5X7.5X125 | 92192C | 92192-1497 | 1 | CA | |
| TUBE | 92192D | 92192-1499 | 1 | ||
| SCREW-PAN-CROS,5X10 | 220 | 220AA0510 | 2 | ||
| TUBE,3.5X7.5X100 | 92192E | 92192-1521 | 1 | CA | |
| TUBE,L=450 | 92192F | 92192-1612 | 1 | CA | |
| TUBE,3.2X7.4X85 | 92192G | 92192-1616 | 2 | ||
| TUBE,3.2X7.4X45 | 92192H | 92192-1617 | 2 | ||
| TUBE,3.2X7.4X200 | 92192I | 92192-1618 | 1 | ||
| WASHER,PILOT AIR SCREW | 92200 | 92200-1564 | 4 | ||
| WASHER | 92200A | 92200-3807 | 4 | ||
| FITTING | 92005 | 92005-1380 | 2 | US | |
| CLAMP,TUBE | 92037 | 92037-1124 | 4 | US |
| BRACKET | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | US |
| REMARKS | |
| INSULATOR | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| THROTTLE-ASSY | |
| REF # | 16163 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| THROTTLE-ASSY | |
| REF # | 16163A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| SENSOR,PRESSURE | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP | |
| REF # | 31064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE-INJECTION | |
| REF # | 49033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIPE-INJECTION | |
| REF # | 49056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY,FUEL | |
| REF # | 51044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | CA 1 |
| REMARKS | |
| RING-O,INJECTION NOZZLE | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE STOP SCREW | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,PIPE INJECTION | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,12MM DIA. | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,3.2X7.4X30 | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,3.2X7.4X35 | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,3.5X7.5X55 | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,3.5X7.5X40 | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,3.5X7.5X125 | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,5X10 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,3.5X7.5X100 | |
| REF # | 92192E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,L=450 | |
| REF # | 92192F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,3.2X7.4X85 | |
| REF # | 92192G |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,3.2X7.4X45 | |
| REF # | 92192H |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,3.2X7.4X200 | |
| REF # | 92192I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PILOT AIR SCREW | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | US |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | US |
| REMARKS | |
