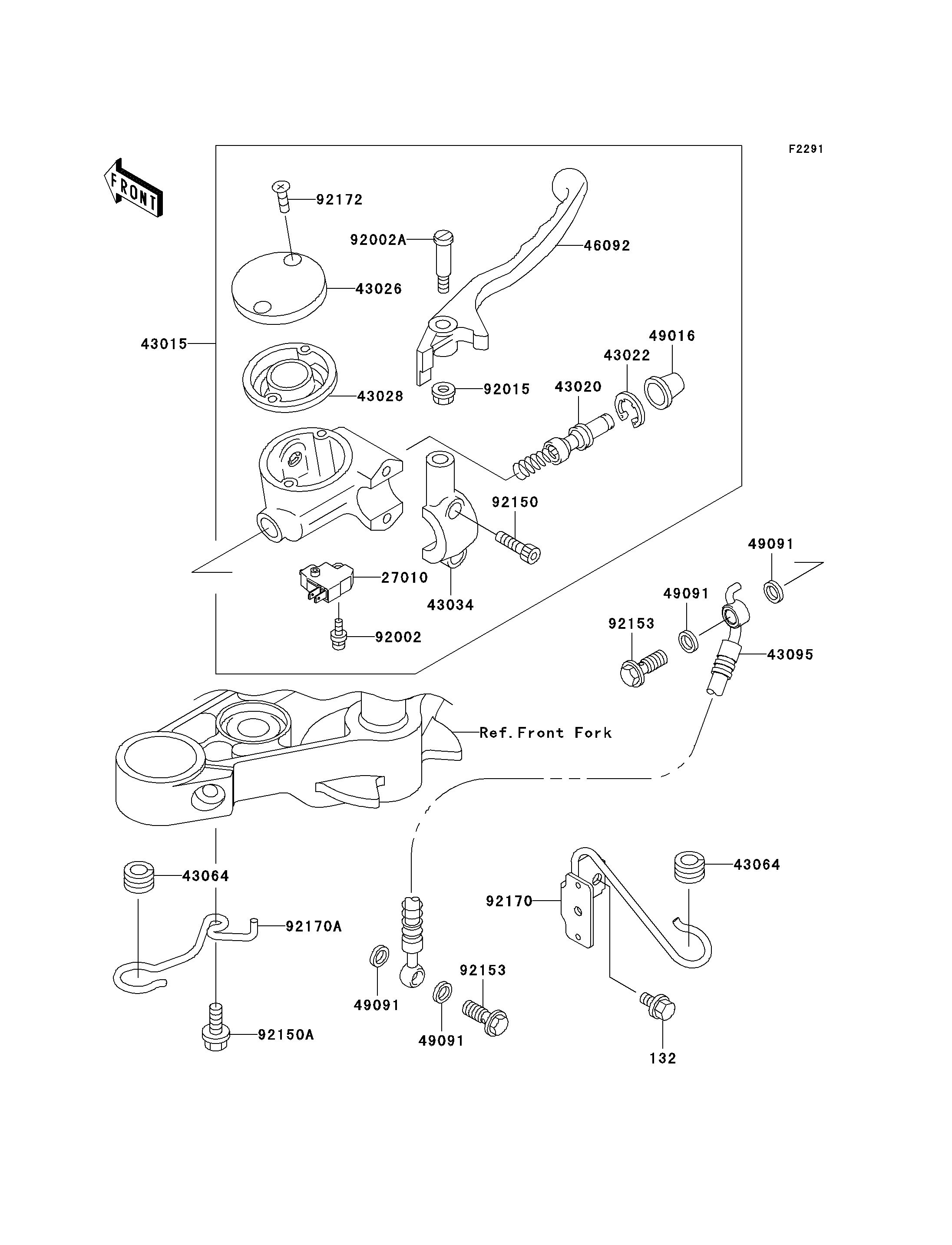

2009 Vulcan® 500 LTD - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
27010
43015
43020
43022
43026
43028
43034
43064
43064
43095
46092
49016
49091
49091
49091
49091
92002
92002A
92015
92150
92150A
92153
92153
92170
92170A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X10 132 132E0610 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0054 1
PISTON-COMP-BRAKE 43020 43020-1098 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE,SILVER 43026 43026-1078 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1071 1
HOLDER-BRAKE,SILVER 43034 43034-1102 1
GROMMET,HOSE CLAMP 43064 43064-006 2
HOSE-BRAKE,FR 43095 43095-0196 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1172 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT,LEVER SET 92002A 92002-1561 1
NUT,FLANGED,6MM 92015 92015-1528 1
BOLT,SOCKET,6MM 92150 92150-1025 2
BOLT,6X14 92150A 92150-1340 1
BOLT,OIL,L=23 92153 92153-0627 2
CLAMP,HOSE 92170 92170-1611 1
CLAMP,HOSE 92170A 92170-1647 1
SCREW,5MM 92172 92172-0089 2
