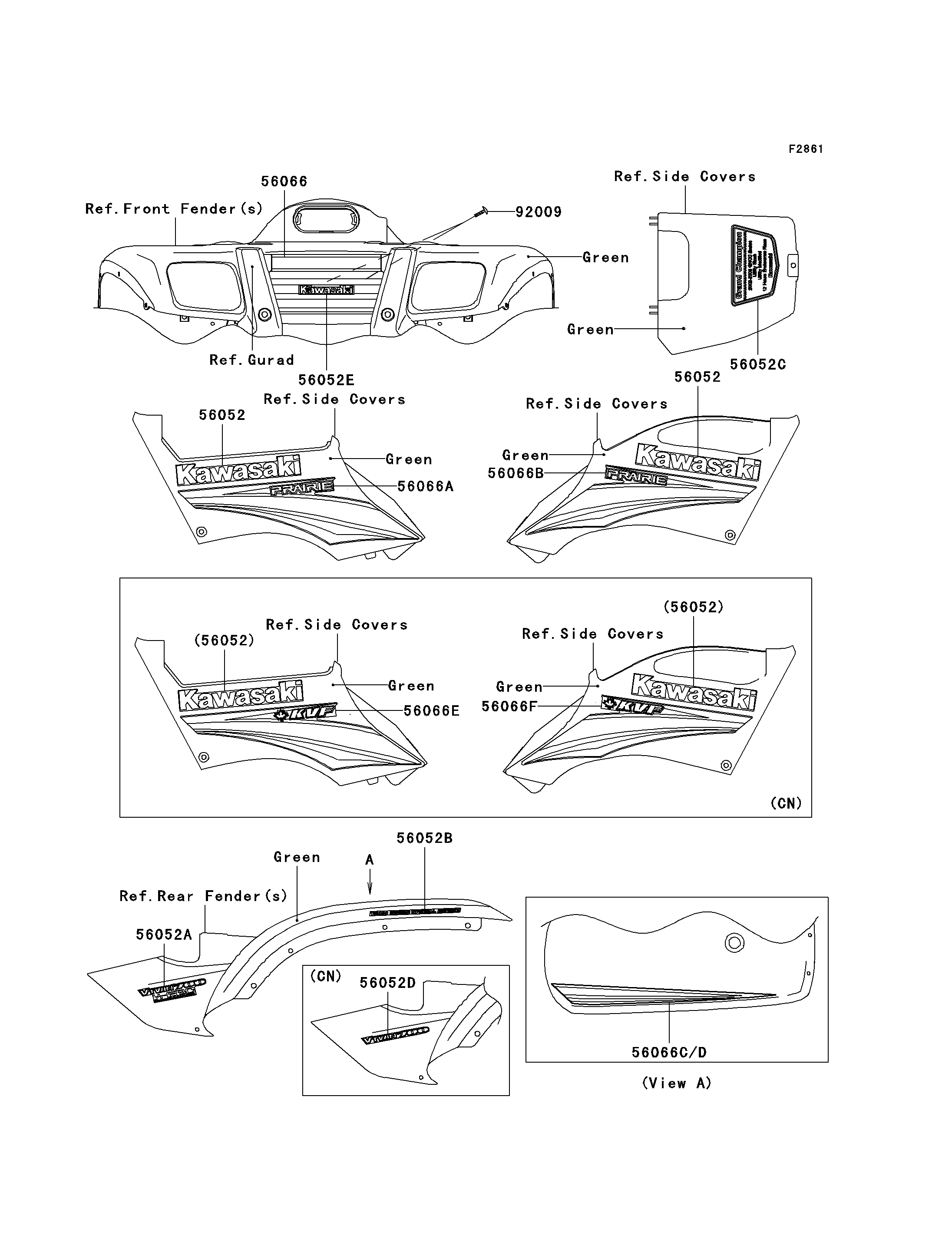

2005 Prairie 700 4x4 Team Green Special Edition - Decals(Green)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK COVER,KAWASAKI | 56052 | 56052-0455 | 2 | ||
| MARK,RR FENDER | 56052B | 56052-0457 | 2 | ||
| MARK,FUEL TANK COVER | 56052C | 56052-0476 | 1 | ||
| MARK,FR FENDER,KAWASAKI | 56052E | 56052-1201 | 1 | ||
| PATTERN,FRONT GUARD | 56066 | 56066-1653 | 1 | ||
| PATTERN,RR FENDER,LH | 56066C | 56066-1741 | 1 | ||
| PATTERN,RR FENDER,RH | 56066D | 56066-1742 | 1 | ||
| SCREW,TAPPING,4X12 | 92009 | 92009-1444 | 2 | ||
| MARK,RR FENDER,V TWIN 700 | 56052A | 56052-0456 | 2 | US | |
| MARK,RR FENDER,V TWIN 700 | 56052D | 56052-0551 | 2 | CN | |
| PATTERN,FUEL TANK COVER,LH | 56066A | 56066-1739 | 1 | US | |
| PATTERN,FUEL TANK COVER,RH | 56066B | 56066-1740 | 1 | US | |
| PATTERN,FUEL TANK COVER,LH | 56066E | 56066-1743 | 1 | CN | |
| PATTERN,FUEL TANK COVER,RH | 56066F | 56066-1744 | 1 | CN |
| MARK,FUEL TANK COVER,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,RR FENDER | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK COVER | |
| REF # | 56052C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FR FENDER,KAWASAKI | |
| REF # | 56052E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FRONT GUARD | |
| REF # | 56066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56066C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56066D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X12 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,RR FENDER,V TWIN 700 | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | US |
| REMARKS | |
| MARK,RR FENDER,V TWIN 700 | |
| REF # | 56052D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK COVER,LH | |
| REF # | 56066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,FUEL TANK COVER,RH | |
| REF # | 56066B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,FUEL TANK COVER,LH | |
| REF # | 56066E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK COVER,RH | |
| REF # | 56066F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
