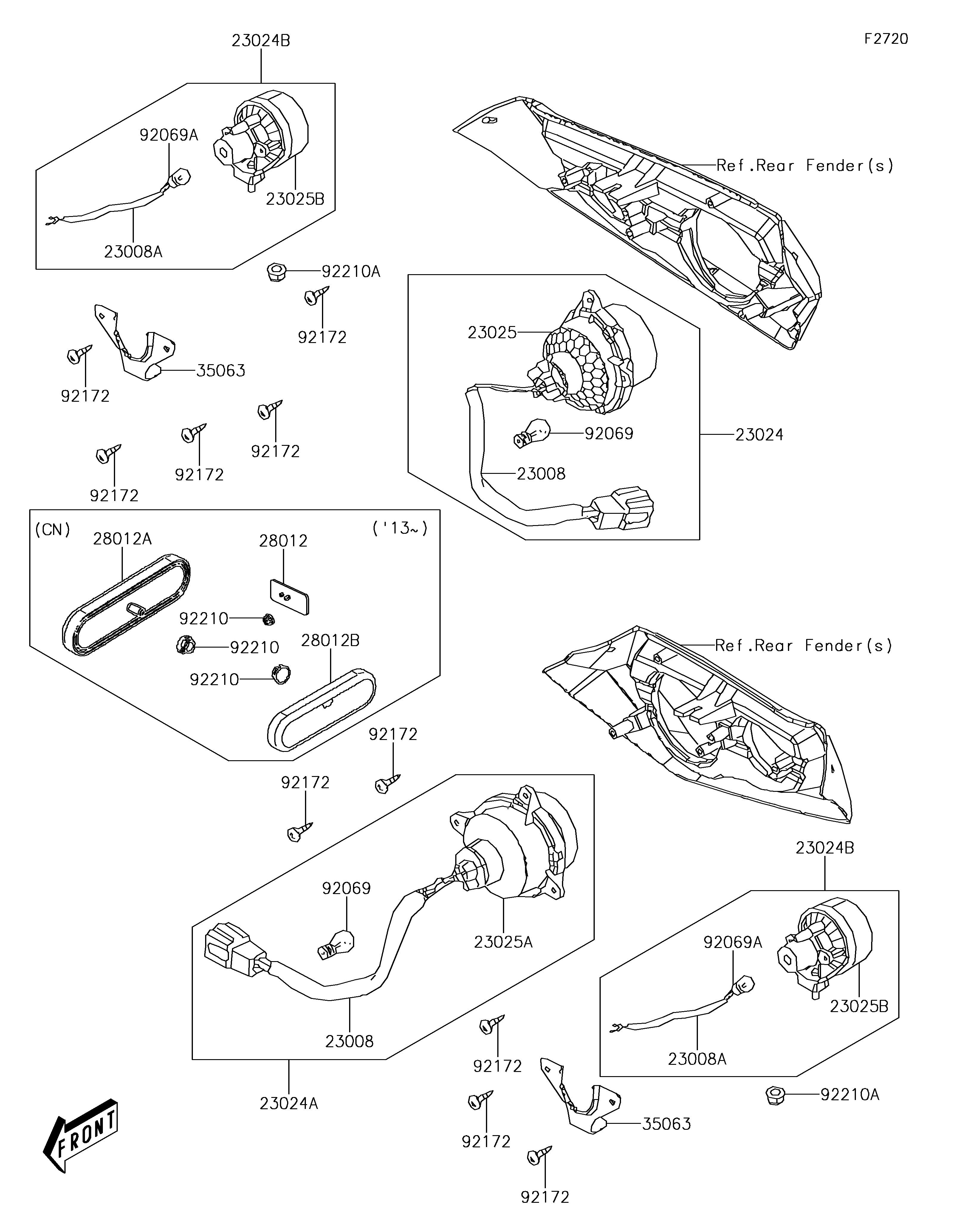

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SOCKET-ASSY,TAIL LAMP | 23008 | 23008-Y004 | 2 | ||
| SOCKET-ASSY | 23008A | 23008-Y005 | 2 | ||
| LAMP-ASSY-TAIL,RH | 23024 | 23024-Y001 | 1 | ||
| LAMP-ASSY-TAIL,LH | 23024A | 23024-Y002 | 1 | ||
| LAMP-ASSY-TAIL | 23024B | 23024-Y003 | 2 | ||
| LAMP-TAIL,RH | 23025 | 23025-Y003 | 1 | ||
| LAMP-TAIL,LH | 23025A | 23025-Y004 | 1 | ||
| LAMP-TAIL | 23025B | 23025-Y005 | 2 | ||
| STAY,TAIL LAMP | 35063 | 35063-Y009 | 2 | ||
| BULB | 92069 | 92069-Y001 | 2 | ||
| BULB,12V 5W | 92069A | 92069-Y004 | 2 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-Y020 | 10 | ||
| NUT,FLANGE,5MM | 92210A | 92210-Y053 | 2 |
