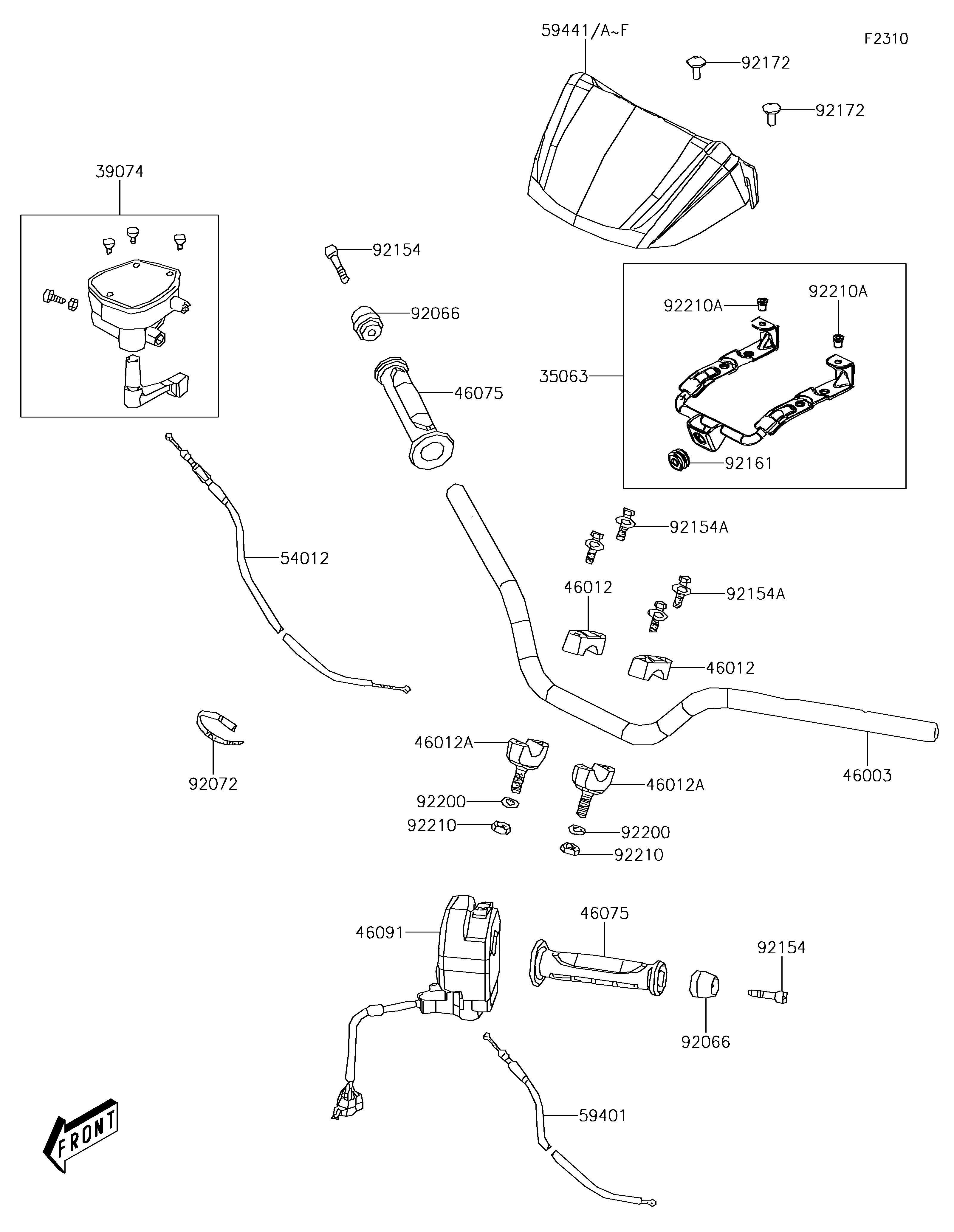

2012 BRUTE FORCE® 300 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
35063
39074
46003
46012
46012
46012A
46012A
46075
46075
46091
54012
59401
59441
59441A
92066
92066
92072
92154
92154
92154A
92154A
92161
92172
92172
92200
92200
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAY,HANDLE COVER 35063 35063-Y006 1
LEVER-ASSY-THROTTLE 39074 39074-Y001 1
HANDLE,BLACK 46003 46003-Y002-935 1
HOLDER-HANDLE,UPP 46012 46012-Y004 2
HOLDER-HANDLE,LWR 46012A 46012-Y005 2
GRIP,HANDLE 46075 46075-Y004 2
HOUSING-ASSY-CONTROL,LH 46091 46091-Y002 1
CABLE-THROTTLE 54012 54012-Y003 1
CABLE-CHOKE 59401 59401-Y001 1
COVER-HANDLE,S.BLACK 59441 59441-Y001-933 1 _________________________________________US
COVER-HANDLE,A.RED 59441A 59441-Y001-946 1
PLUG,HANDLE 92066 92066-Y010 2
BAND 92072 92072-Y001 1
BOLT,8X42 92154 92154-Y017 2
BOLT,8X35 92154A 92154-Y018 4
DAMPER 92161 92161-Y006 1
SCREW,5X16 92172 92172-Y039 2
WASHER,10MM 92200 92200-Y020 2
NUT,10MM 92210 92210-Y042 2
NUT,5MM 92210A 92210-Y056 2
