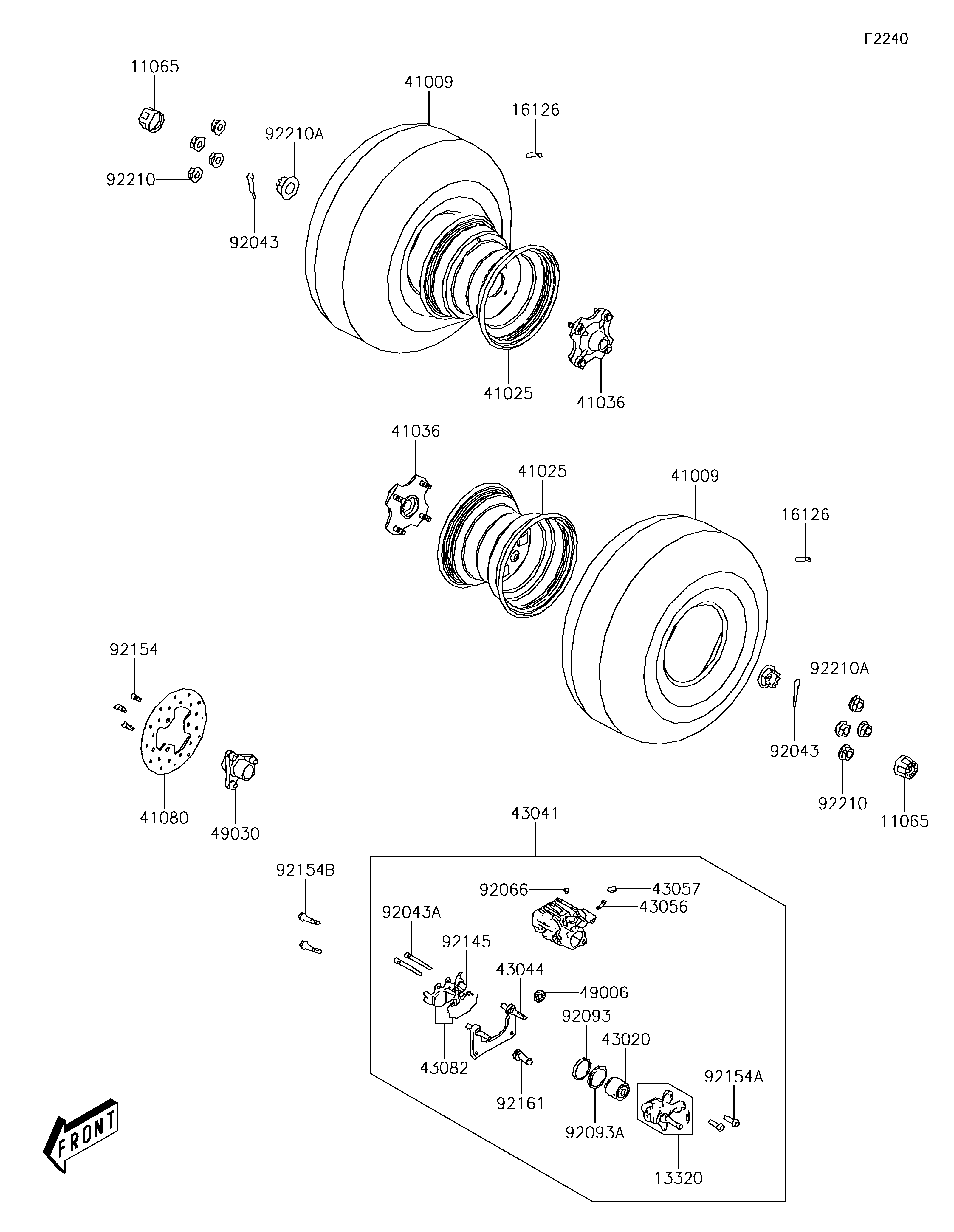

2012 BRUTE FORCE® 300 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13320
16126
16126
41009
41009
41025
41025
41036
41036
41080
43020
43041
43044
43056
43057
43082
49006
49030
92043
92043
92043A
92066
92093
92093A
92145
92154
92154A
92154B
92161
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,WHEEL 11065 11065-Y015 2
LEVER-ASSY,ADJUSTABLE 13320 13320-Y001 1
VALVE,RIM 16126 16126-Y001 2
TIRE,RR 41009 41009-Y005 2
RIM,RR,BLACK 41025 41025-Y005-935 2
HUB-ASSY,RR 41036 41036-Y005 2
DISC 41080 41080-Y003 1
PISTON-COMP-BRAKE 43020 43020-Y002 1
CALIPER-ASSY,RR 43041 43041-Y004 1
HOLDER-COMP-CALIPER,RR 43044 43044-Y002 1
BREATHER-BRAKE 43056 43056-0006 1
CAP-BREATHER 43057 43057-Y002 1
PAD-ASSY-BRAKE 43082 43082-Y004 1
BOOT,CALIPER 49006 49006-Y005 1
HUB,BRAKE DISK 49030 49030-Y002 1
PIN,3X25 92043 92043-Y011 2
PIN,HANGER 92043A 92043-Y023 2
PLUG 92066 92066-Y012 1
SEAL,DUST 92093 92093-0613 1
PACKING,PISTON SEAL 92093A 92093-Y006 1
SPRING,PAD 92145 92145-Y035 1
BOLT,8X24 92154 92154-Y025 3
BOLT,FLANGE 92154A 92154-Y028 2
BOLT,FLANGE,8X20 92154B 92154-Y226 2
DAMPER 92161 92161-Y012 1
NUT,10MM 92210 92210-Y044 8
NUT,CASTEL,18MM 92210A 92210-Y046 2
