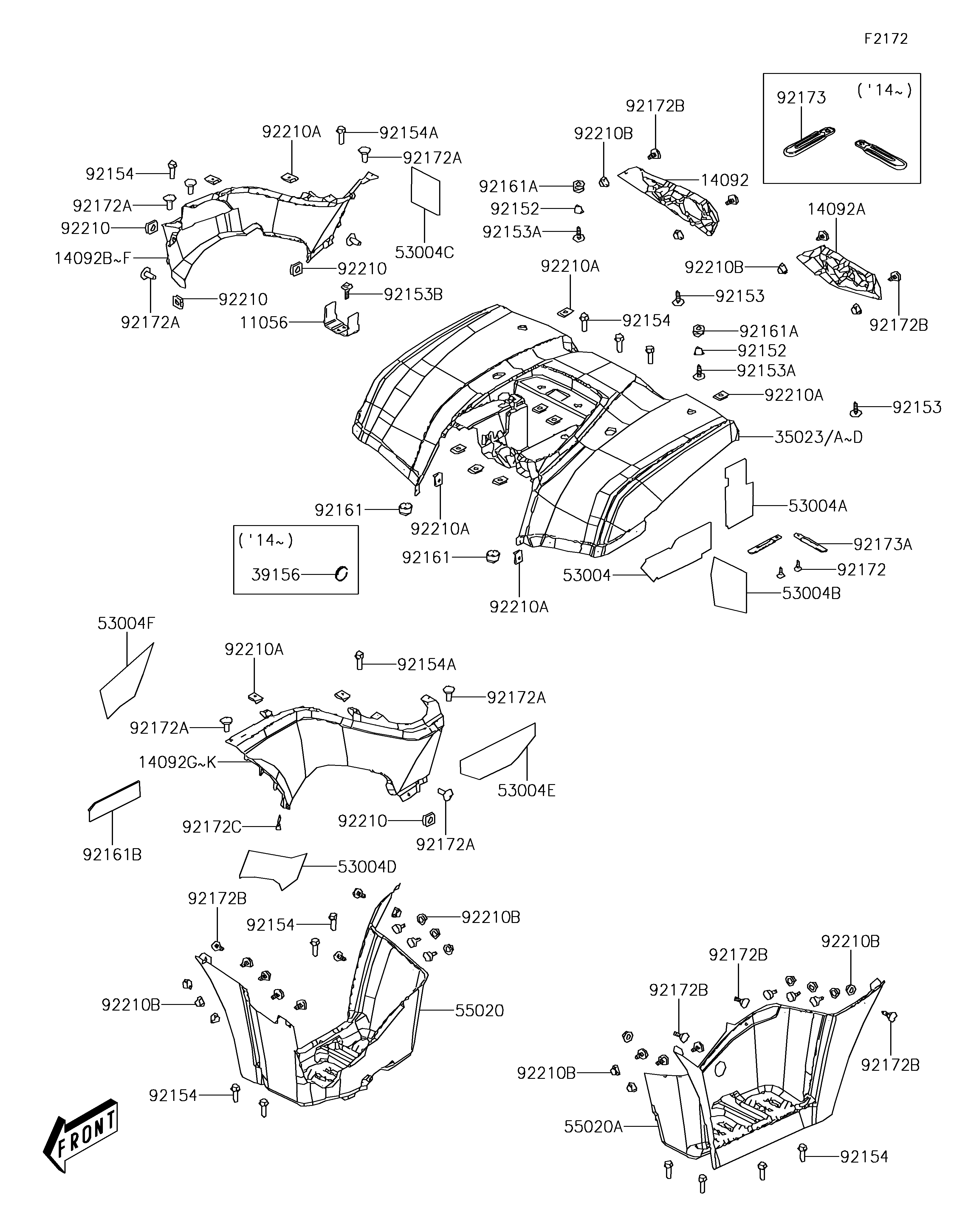

2012 BRUTE FORCE® 300 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
14092
14092
14092A
14092A
14092C
14092C
14092D
14092D
14092H
14092H
14092I
14092I
35023A
35023A
35023B
35023B
53004
53004
53004A
53004A
53004B
53004B
53004C
53004C
53004D
53004D
53004E
53004E
53004F
53004F
55020
55020
55020A
55020A
92152
92152
92152
92152
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172C
92172C
92173A
92173A
92210
92210
92210
92210
92210
92210
92210
92210
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,IGNITION SWITCH 11056 11056-Y004 1
COVER,TAIL TAMP,RH,S.BLACK 14092 14092-Y013-933 1
COVER,TAIL TAMP,LH,S.BLACK 14092A 14092-Y014-933 1
COVER,SIDE,RH,S.BLACK 14092C 14092-Y015-933 1 _________________________________________US
COVER,SIDE,RH,A.RED 14092D 14092-Y015-946 1
COVER,SIDE,LH,S.BLACK 14092H 14092-Y016-933 1 _________________________________________US
COVER,SIDE,LH,A.RED 14092I 14092-Y016-946 1
FENDER-REAR,S.BLACK 35023A 35023-Y002-933 1 _________________________________________US
FENDER-REAR,A.RED 35023B 35023-Y002-946 1
MAT,LH,LWR 53004 53004-Y001 1
MAT,LH,UPP 53004A 53004-Y002 1
MAT,RR 53004B 53004-Y003 1
MAT,RR 53004C 53004-Y004 1
MAT,LH 53004D 53004-Y005 1
MAT,LH 53004E 53004-Y006 1
MAT,FRONT,LH 53004F 53004-Y007 1
GUARD,FOOTREST,RH,S.BLACK 55020 55020-Y005-933 1
GUARD,FOOTREST,LH,S.BLACK 55020A 55020-Y006-933 1
COLLAR 92152 92152-Y018 2
BOLT,5X16 92153 92153-Y013 2
BOLT,6X20 92153A 92153-Y019 2
BOLT,FLANGED,5X12 92153B 92153-1991 1
BOLT,FLANGE,6MM 92154 92154-Y023 12
BOLT,6X16 92154A 92154-Y054 2
DAMPER 92161 92161-Y005 2
DAMPER 92161A 92161-Y011 2
DAMPER,FUEL TANK GUARD 92161B 92161-Y019 1
SCREW,4X12 92172 92172-Y019 2
SCREW,5X16 92172A 92172-Y039 8
SCREW,6X20 92172B 92172-Y041 23
SCREW,5MM 92172C 92172-Y043 1
CLAMP,2X70 92173A 92173-Y011 2
NUT,6MM 92210 92210-Y011 4
NUT,5MM 92210A 92210-Y016 13
NUT 92210B 92210-Y031 18
