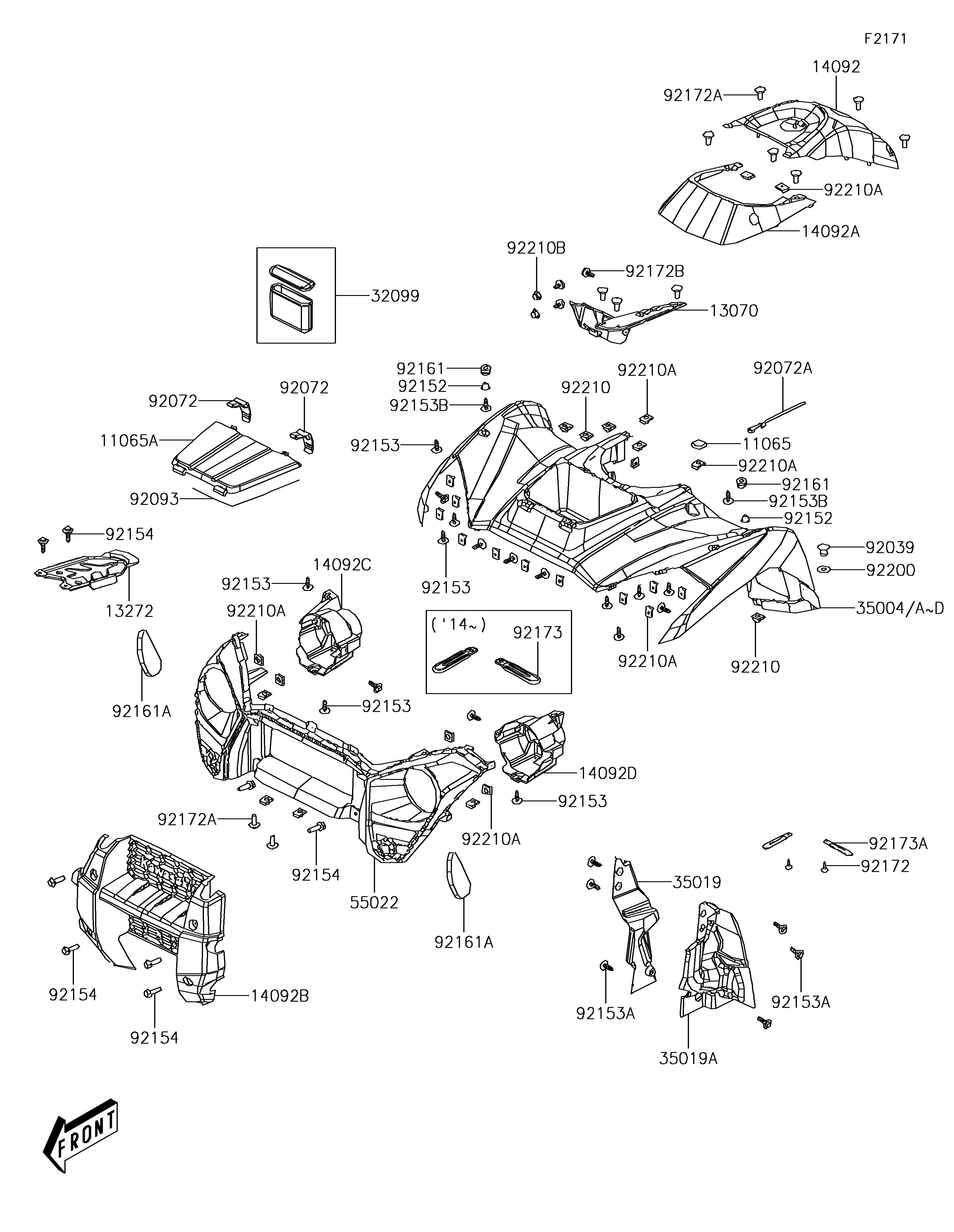

2012 BRUTE FORCE® 300 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11065
11065A
13070
13272
14092
14092A
14092B
14092C
14092D
32099
35004A
35004B
35019
35019A
55022
92039
92072
92072
92072A
92093
92152
92152
92153
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92154
92154
92154
92154
92161
92161
92161A
92161A
92172
92172A
92172A
92172B
92173A
92200
92210
92210
92210A
92210A
92210A
92210A
92210A
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,TOOL BOX 11065 11065-Y009 1
CAP,STORAGE BOX,S.BLACK 11065A 11065-Y010-933 1
GUIDE,COVER SHIFT LEVER,BLACK 13070 13070-Y003-933 1
PLATE,S.BLACK 13272 13272-Y010-933 1
COVER,S.BLACK 14092 14092-Y008-933 1
COVER,FRONT FENDER,S.BLACK 14092A 14092-Y009-933 1
COVER,FRONT BUMPER,S.BLACK 14092B 14092-Y010-933 1
COVER,RIGHT HEAD LAMP,S.BLACK 14092C 14092-Y011-933 1
COVER,LEFT HEAD LAMP,S.BLACK 14092D 14092-Y012-933 1
CASE,OWNERS MANUAL 32099 32099-Y006 1
FENDER-FRONT,S.BLACK 35004A 35004-Y002-933 1 _________________________________________US
FENDER-FRONT,A.RED 35004B 35004-Y002-946 1
FLAP,RH,S.BLACK 35019 35019-Y001-933 1
FLAP,LH,S.BLACK 35019A 35019-Y002-933 1
COVER-HEAD LAMP,S.BLACK 55022 55022-Y001-933 1
RIVET,3.2X9.8 92039 92039-Y001 6
BAND,CAP STORAGE BOX 92072 92072-Y006 2
BAND 92072A 92072-Y007 1
SEAL 92093 92093-Y012 1
COLLAR 92152 92152-Y018 2
BOLT,5X16 92153 92153-Y013 17
BOLT,6X16 92153A 92153-Y018 6
BOLT,6X20 92153B 92153-Y019 2
BOLT,FLANGE,6MM 92154 92154-Y023 8
DAMPER 92161 92161-Y011 2
DAMPER,FRONT BUMPER COVER 92161A 92161-Y020 2
SCREW,4X12 92172 92172-Y019 2
SCREW,5X16 92172A 92172-Y039 8
SCREW,6X20 92172B 92172-Y041 6
CLAMP,2X70 92173A 92173-Y011 2
WASHER,3MM 92200 92200-Y017 6
NUT,6MM 92210 92210-Y011 4
NUT,5MM 92210A 92210-Y016 25
NUT 92210B 92210-Y031 2
