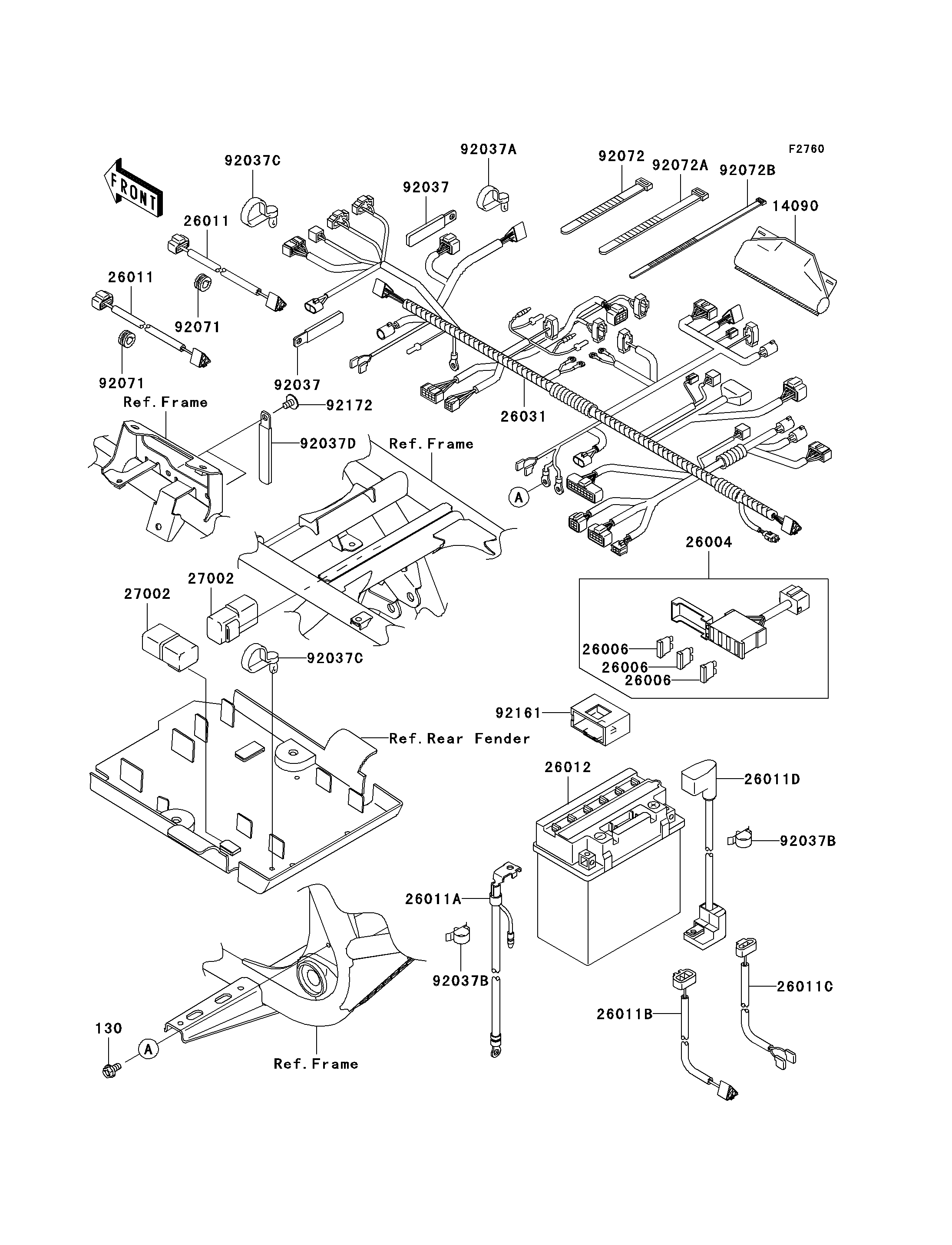

2006 Prairie 700 4x4 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
14090
26004
26006
26006
26006
26011
26011
26011A
26011B
26011C
26011D
26012
26031
27002
27002
92037
92037
92037A
92037B
92037B
92037C
92037C
92037D
92071
92071
92072
92072A
92072B
92161
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130B0612 1
COVER,COUPLER 14090 14090-1331 2
FUSE-ASSY 26004 26004-0010 1
FUSE,10A-R 26006 26006-1007 3
WIRE-LEAD,HEAD LAMP 26011 26011-1741 2
WIRE-LEAD,BATTERY(-) 26011A 26011-1752 1
WIRE-LEAD,SPEED SENSOR 26011B 26011-1801 1
WIRE-LEAD,FRONT BRAKE 26011C 26011-1802 1
WIRE-LEAD,BATTERY(+) 26011D 26011-1827 1
BATTERY,MF,KMX14-BS,12V 12AH 26012 26012-1414 1
HARNESS,MAIN 26031 26031-0216 1
RELAY-ASSY 27002 27002-1086 2
CLAMP,L=60 92037 92037-1069 2
CLAMP,SPEED,L=58 92037A 92037-1163 2
CLAMP,HARNESS 92037B 92037-1878 2
CLAMP,SPEED,L=80.5 92037C 92037-1903 4
CLAMP 92037D 92037-1993 2
GROMMET 92071 92071-1128 2
BAND,L=123 92072 92072-030 2
BAND,L=149 92072A 92072-031 2
BAND,L=188 92072B 92072-1239 25
DAMPER,FUSE 92161 92161-1136 1
SCREW,6X10 92172 92172-0005 2
