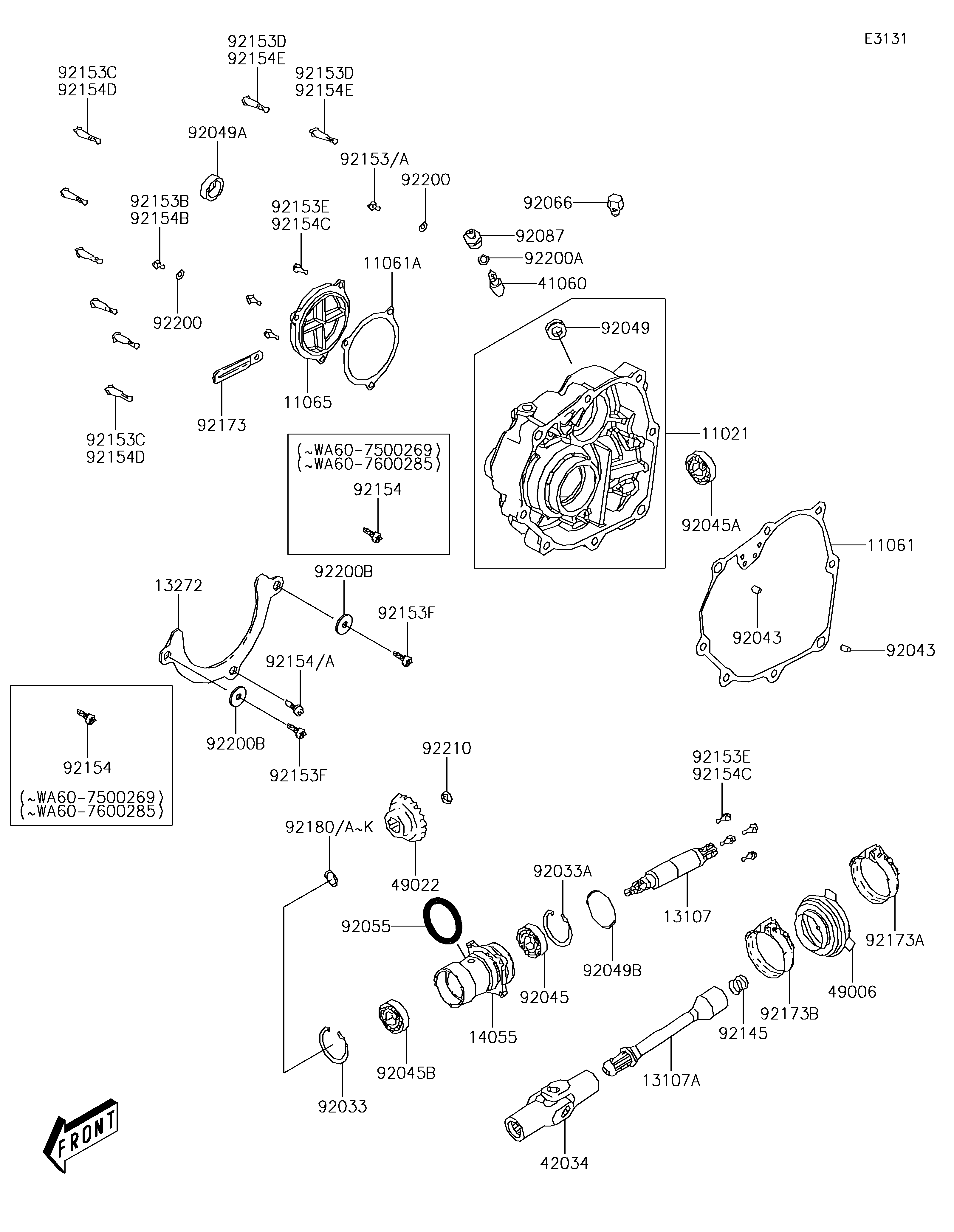

2012 BRUTE FORCE® 300 - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
11021
11021
11061
11061
11061A
11061A
11065
11065
13107
13107
13107A
13107A
13272
13272
14055
14055
41060
41060
42034
42034
49006
49006
49022
49022
92033
92033
92033A
92033A
92043
92043
92043
92043
92045
92045
92045A
92045A
92045B
92045B
92049
92049
92049A
92049A
92049B
92049B
92055
92055
92066
92066
92087
92087
92145
92145
92153
92153
92153C
92153C
92153C
92153C
92153D
92153D
92153D
92153D
92153E
92153E
92153E
92153E
92154
92154
92154
92154
92154
92154
92154B
92154B
92173
92173
92173A
92173A
92173B
92173B
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
92180D
92180D
92180E
92180E
92180F
92180F
92180G
92180G
92180H
92180H
92180I
92180I
92180J
92180J
92180K
92180K
92200
92200
92200
92200
92200A
92200A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,MISSION 11021 11021-Y001 1
GASKET,MISSION CASE 11061 11061-Y030 1
GASKET,CAP 11061A 11061-Y031 1
CAP 11065 11065-Y012 1
SHAFT,FINAL 13107 13107-Y009 1
SHAFT,PROPELLER 13107A 13107-Y010 1
PLATE 13272 13272-Y008 1
CASE-GEAR 14055 14055-Y003 1
GEAR-METER SCREW 41060 41060-Y001 1
COUPLING 42034 42034-Y001 1
BOOT 49006 49006-Y003 1
GEAR-BEVEL,DRIVEN 49022 49022-Y001 1
RING-SNAP 92033 92033-Y020 1
RING-SNAP 92033A 92033-Y021 1
PIN,10X16 92043 92043-Y013 2
BEARING-BALL,62/28 92045 92045-Y021 1
BEARING-BALL,6009 92045A 92045-Y022 1
BEARING-BALL,63/22 92045B 92045-0139 1
SEAL-OIL,12X18X3 92049 92049-Y013 1
SEAL-OIL,14X28X7 92049A 92049-Y014 1
SEAL-OIL,28X59X7 92049B 92049-Y015 1
RING-O 92055 92055-Y026 1
PLUG,DRAIN 92066 92066-Y003 1
BUSHING-METER GEAR 92087 92087-Y001 1
SPRING,PROPELLER SHAFT 92145 92145-Y028 1
BOLT,FLANGE,8X12 92153 92153-Y001 1
BOLT,FLANGE,8X40 92153C 92153-Y035 6
BOLT,FLANGE,8X45 92153D 92153-Y036 2
BOLT,FLANGE,6X20 92153E 92153-Y049 7
BOLT,SOCKET,6X10 92154 92154-Y003 3 ( - WA60-7500269)
BOLT,FLANGE,8X16 92154B 92154-Y052 1
CLAMP 92173 92173-Y004 1
CLAMP 92173A 92173-Y006 1
CLAMP 92173B 92173-Y007 1
SHIM,DRIVE,A,T=0.6 92180 92180-Y001 AR
SHIM,DRIVE,B,T=0.65 92180A 92180-Y002 AR
SHIM,DRIVE,C,T=0.7 92180B 92180-Y003 AR
SHIM,DRIVE,D,T=0.75 92180C 92180-Y004 AR
SHIM,DRIVE,E,T=0.8 92180D 92180-Y005 AR
SHIM,DRIVE,F,T=0.85 92180E 92180-Y006 AR
SHIM,DRIVE,G,T=0.9 92180F 92180-Y007 AR
SHIM,DRIVE,H,T=0.95 92180G 92180-Y008 AR
SHIM,DRIVE,I,T=1.0 92180H 92180-Y009 AR
SHIM,DRIVE,J,T=1.05 92180I 92180-Y010 AR
SHIM,DRIVE,K,T=1.1 92180J 92180-Y011 AR
SHIM,DRIVE,L,T=1.15 92180K 92180-Y012 AR
WASHER,8MM 92200 92200-Y010 2
WASHER,8MM 92200A 92200-Y027 1
NUT 92210 92210-Y040 1
