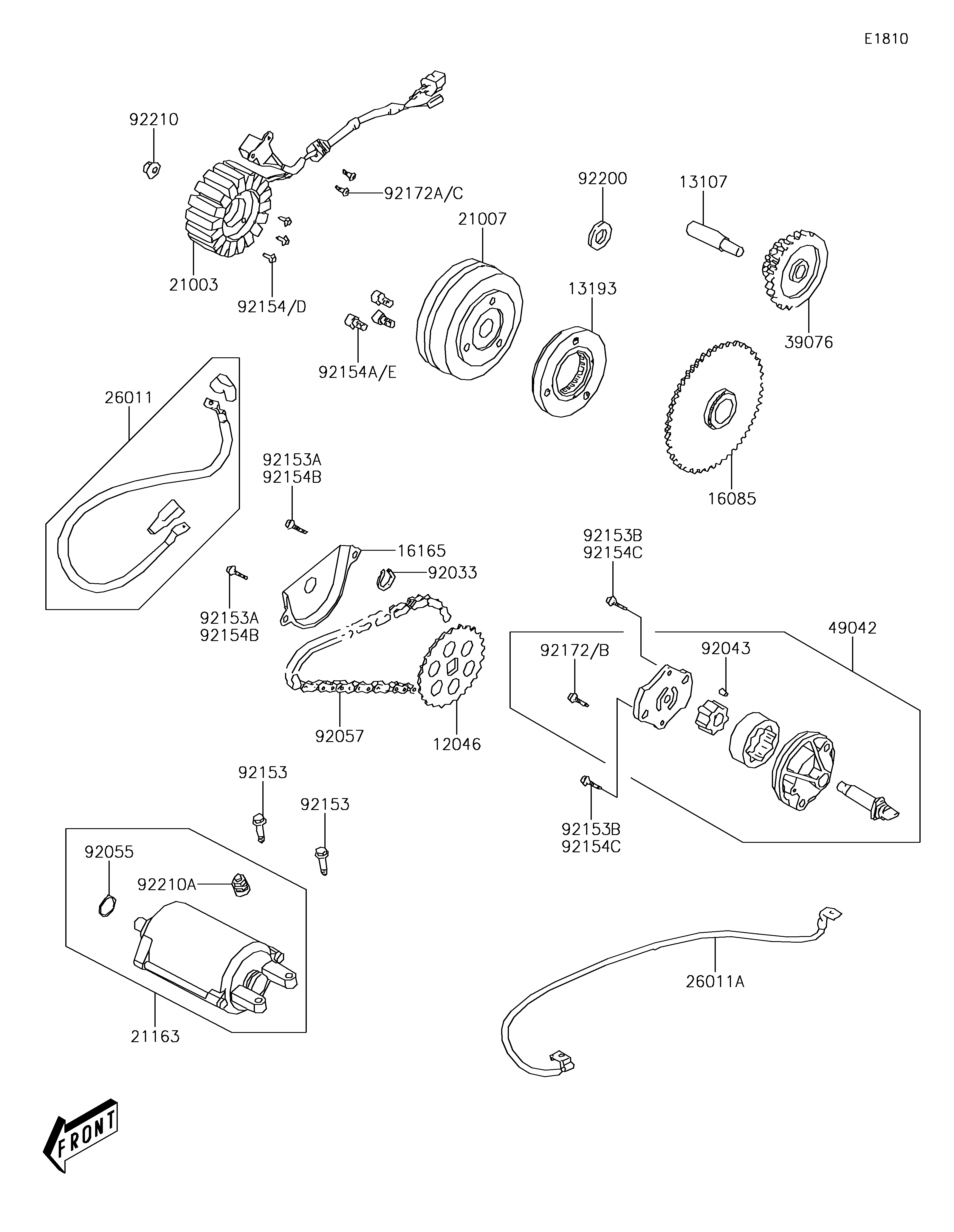

2012 BRUTE FORCE® 300 - Generator

DOWNLOAD PDF
SELECT A NEW PART
12046
13107
13193
16085
16165
21003
21007
21163
26011
26011A
39076
49042
92033
92043
92055
92057
92153
92153
92153A
92153A
92153B
92153B
92154
92154A
92172
92172A
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,OIL PUMP DRIVEN 12046 12046-Y001 1
SHAFT,STARTER REDUCTION 13107 13107-Y008 1
CLUTCH-ASSY-ONEWAY 13193 13193-Y002 1
GEAR,STARTER 16085 16085-Y009 1
SEPARATOR,OIL 16165 16165-Y003 1
STATOR 21003 21003-Y007 1
ROTOR 21007 21007-Y007 1
STARTER-ELECTRIC 21163 21163-Y003 1
WIRE-LEAD,STARTER CABLE 26011 26011-Y001 1
WIRE-LEAD,EARTH 26011A 26011-Y002 1
LIMITER,STARTER REDUCTION 39076 39076-Y002 1
PUMP-OIL 49042 49042-Y003 1
RING-SNAP,10MM 92033 92033-Y019 1
PIN,DOWEL,4X65 92043 92043-Y015 1
RING-O,24.4X3.1 92055 92055-Y025 1
CHAIN,OIL PUMP 92057 92057-Y006 1
BOLT,FLANGE,6X22 92153 92153-Y003 2
BOLT,FLANGE,6X12 92153A 92153-Y046 2
BOLT,FLANGE,6X28 92153B 92153-Y052 2
BOLT,HEX,5X32 92154 92154-Y015 3
BOLT,SOCKET,8X15 92154A 92154-Y016 3
SCREW,3X10 92172 92172-Y006 1
SCREW,5X16 92172A 92172-Y010 2
WASHER,14X28X2 92200 92200-Y026 1
NUT,FLANGE,14MM 92210 92210-Y038 1
NUT,6MM 92210A 92210-Y039 1
