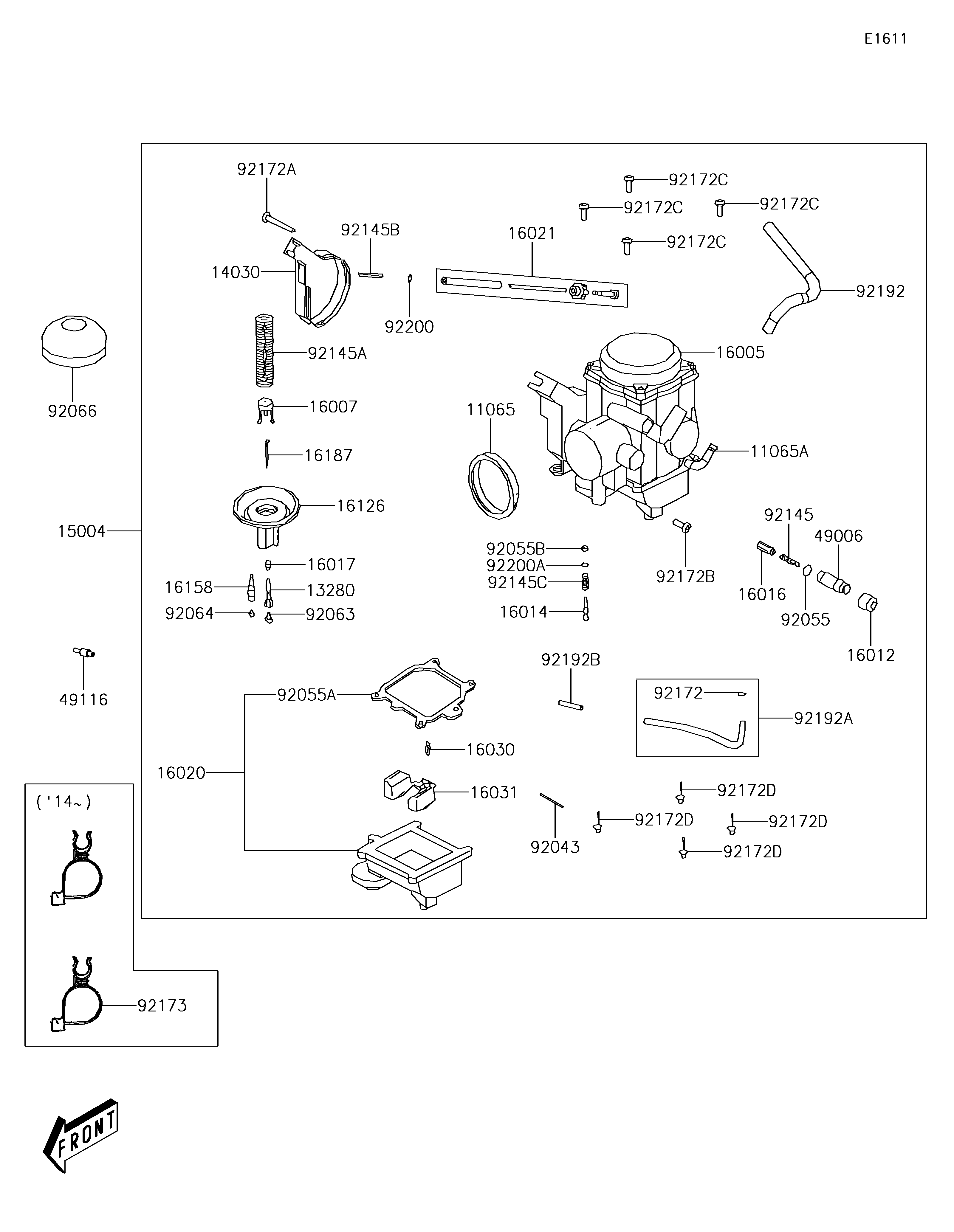

Parts Diagrams |
11065
11065
11065A
11065A
13280
13280
14030
14030
15004
15004
16005
16005
16007
16007
16012
16012
16014
16014
16016
16016
16017
16017
16020
16020
16021
16021
16030
16030
16031
16031
16126
16126
16158
16158
16187
16187
49006
49006
49116
49116
92043
92043
92055
92055
92055A
92055A
92055B
92055B
92063
92063
92064
92064
92066
92066
92145
92145
92145A
92145A
92145B
92145B
92145C
92145C
92172
92172
92172A
92172A
92172B
92172B
92172C
92172C
92172C
92172C
92172C
92172C
92172C
92172C
92172D
92172D
92172D
92172D
92172D
92172D
92172D
92172D
92192
92192
92192A
92192A
92192B
92192B
92200
92200
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-Y013 | 1 | ||
| CAP | 11065A | 11065-Y014 | 1 | ||
| HOLDER | 13280 | 13280-Y014 | 1 | ||
| COVER-CARBURETOR | 14030 | 14030-Y001 | 1 | ||
| CARBURETOR-ASSY | 15004 | 15004-Y004 | 1 | ||
| TOP-CHAMBER | 16005 | 16005-Y003 | 1 | ||
| SEAT-SPRING | 16007 | 16007-Y003 | 1 | ||
| CAP-STARTER PLUNGER | 16012 | 16012-Y001 | 1 | ||
| SCREW-PILOT AIR | 16014 | 16014-Y002 | 1 | ||
| PLUNGER,STARTER | 16016 | 16016-Y002 | 1 | ||
| JET-NEEDLE | 16017 | 16017-Y004 | 1 | ||
| CHAMBER-FLOAT | 16020 | 16020-Y005 | 1 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-Y003 | 1 | ||
| VALVE-FLOAT | 16030 | 16030-Y003 | 1 | ||
| FLOAT | 16031 | 16031-Y002 | 1 | ||
| VALVE,VACUUM | 16126 | 16126-Y003 | 1 | ||
| JET-SLOW | 16158 | 16158-Y003 | 1 | ||
| NEEDLE-JET | 16187 | 16187-Y003 | 1 | ||
| BOOT,STARTER PLUNGER | 49006 | 49006-Y004 | 1 | ||
| VALVE-ASSY | 49116 | 49116-1126 | 1 | ||
| PIN,FLOAT | 92043 | 92043-Y017 | 1 | ||
| RING-O,STARTER PLUNGER | 92055 | 92055-Y027 | 1 | ||
| RING-O,FLOAT CHAMBER | 92055A | 92055-Y028 | 1 | ||
| RING-O | 92055B | 92055-Y029 | 1 | ||
| JET-MAIN,#108 | 92063 | 92063-Y005 | 1 | ||
| JET-PILOT,#60 | 92064 | 92064-Y002 | 1 | ||
| PLUG | 92066 | 92066-Y008 | 1 | ||
| SPRING,PLUNGER | 92145 | 92145-Y031 | 1 | ||
| SPRING,VACUUM VALVE | 92145A | 92145-Y032 | 1 | ||
| SPRING,THROTTLE STOP SCREW | 92145B | 92145-Y033 | 1 | ||
| SPRING | 92145C | 92145-Y034 | 1 | ||
| CLAMP | 92172 | 92172-Y023 | 1 | ||
| SCREW,PAN | 92172A | 92172-Y033 | 1 | ||
| SCREW,DRAIN | 92172B | 92172-Y034 | 1 | ||
| SCREW,PAN,4X8 | 92172C | 92172-Y035 | 4 | ||
| SCREW,PAN,4X14 | 92172D | 92172-Y036 | 4 | ||
| TUBE | 92192 | 92192-Y014 | 1 | ||
| TUBE,ASSY | 92192A | 92192-Y024 | 1 | ||
| TUBE,PINK | 92192B | 92192-Y028 | 1 | ||
| WASHER | 92200 | 92200-Y037 | 1 | ||
| WASHER | 92200A | 92200-Y038 | 1 |
