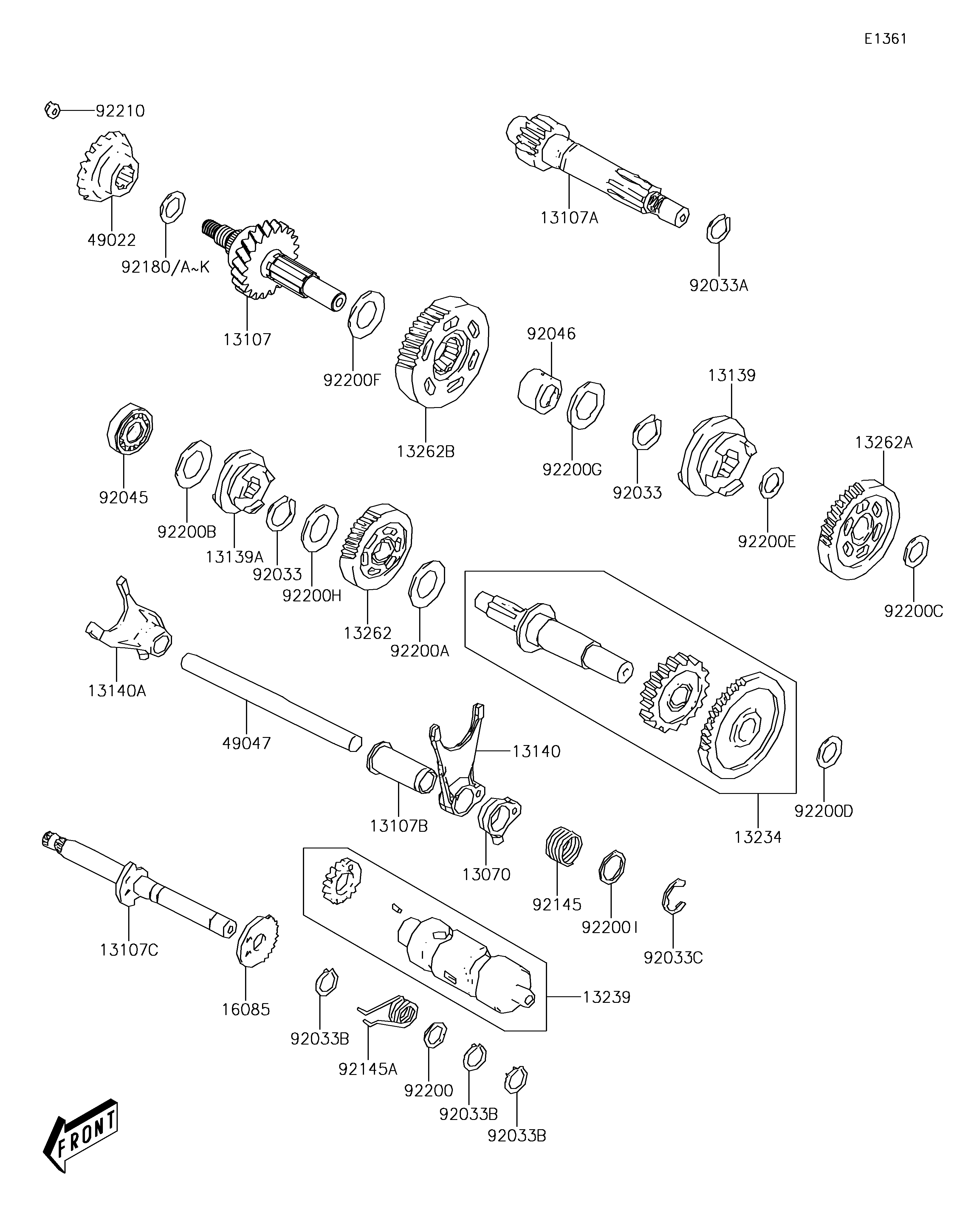

2012 BRUTE FORCE® 300 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13070
13070
13107
13107
13107A
13107A
13107B
13107B
13107C
13107C
13139
13139
13139A
13139A
13140
13140
13140A
13140A
13234
13234
13239
13239
13262
13262
13262A
13262A
13262B
13262B
16085
16085
49022
49022
49047
49047
92033
92033
92033
92033
92033A
92033A
92033B
92033B
92033B
92033B
92033B
92033B
92033C
92033C
92045
92045
92046
92046
92145
92145
92145A
92145A
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
92180D
92180D
92180E
92180E
92180F
92180F
92180G
92180G
92180H
92180H
92180I
92180I
92180J
92180J
92180K
92180K
92200
92200
92200A
92200A
92200B
92200B
92200C
92200C
92200D
92200D
92200E
92200E
92200F
92200F
92200G
92200G
92200H
92200H
92200I
92200I
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,FORK-SHIFT,RH 13070 13070-Y002 1
SHAFT,MAIN 13107 13107-Y011 1
SHAFT,DRIVE 13107A 13107-Y012 1
SHAFT,SHIFT FORK 13107B 13107-Y013 1
SHAFT,CHANGE DRUM 13107C 13107-Y014 1
SHIFTER,REVERSE & LOWER 13139 13139-Y001 1
SHIFTER,FORWARD 13139A 13139-Y002 1
FORK-SHIFT,RH 13140 13140-Y001 1
FORK-SHIFT,LH 13140A 13140-Y002 1
SHAFT-COMP,COUNTER 13234 13234-Y003 1
DRUM-ASSY-CHANGE 13239 13239-Y001 1
GEAR,FORWARD 13262 13262-Y001 1
GEAR,BACKWARD 13262A 13262-Y002 1
GEAR,LOWER DRIVEN 13262B 13262-Y003 1
GEAR,CHANGE LEVER 16085 16085-Y010 1
GEAR-BEVEL,DRIVE 49022 49022-Y003 1
ROD-SHIFT 49047 49047-Y001 1
RING-SNAP,28MM 92033 92033-Y022 2
RING-SNAP,25MM 92033A 92033-Y023 1
RING-SNAP,12MM 92033B 92033-Y024 3
RING-SNAP,15MM 92033C 92033-Y025 1
BEARING-BALL,6303 92045 92045-Y023 1
BEARING-NEEDLE,20X26X16 92046 92046-Y006 1
SPRING,DRUM 92145 92145-Y029 1
SPRING,RETURN 92145A 92145-Y030 1
SHIM,DRIVEN,A,T=0.6 92180 92180-Y013 AR
SHIM,DRIVEN,B,T=0.65 92180A 92180-Y014 AR
SHIM,DRIVEN,C,T=0.7 92180B 92180-Y015 AR
SHIM,DRIVEN,D,T=0.75 92180C 92180-Y016 AR
SHIM,DRIVEN,E,T=0.8 92180D 92180-Y017 AR
SHIM,DRIVEN,F,T=0.85 92180E 92180-Y018 AR
SHIM,DRIVEN,G,T=0.9 92180F 92180-Y019 AR
SHIM,DRIVEN,H,T=0.95 92180G 92180-Y020 AR
SHIM,DRIVEN,I,T=1.0 92180H 92180-Y021 AR
SHIM,DRIVEN,J,T=1.05 92180I 92180-Y022 AR
SHIM,DRIVEN,K,T=1.1 92180J 92180-Y023 AR
SHIM,DRIVEN,L,T=1.15 92180K 92180-Y024 AR
WASHER,14X28X2 92200 92200-Y026 1
WASHER,25MM 92200A 92200-Y028 1
WASHER,17.2MM 92200B 92200-Y029 1
WASHER,20MM 92200C 92200-Y030 1
WASHER,20MM 92200D 92200-Y031 1
WASHER,30X20X3 92200E 92200-Y032 1
WASHER,25MM 92200F 92200-Y033 1
WASHER,25MM 92200G 92200-Y034 1
WASHER,25X31X1.6 92200H 92200-Y035 1
WASHER,17X22 92200I 92200-Y036 1
NUT,18MM 92210 92210-Y041 1
