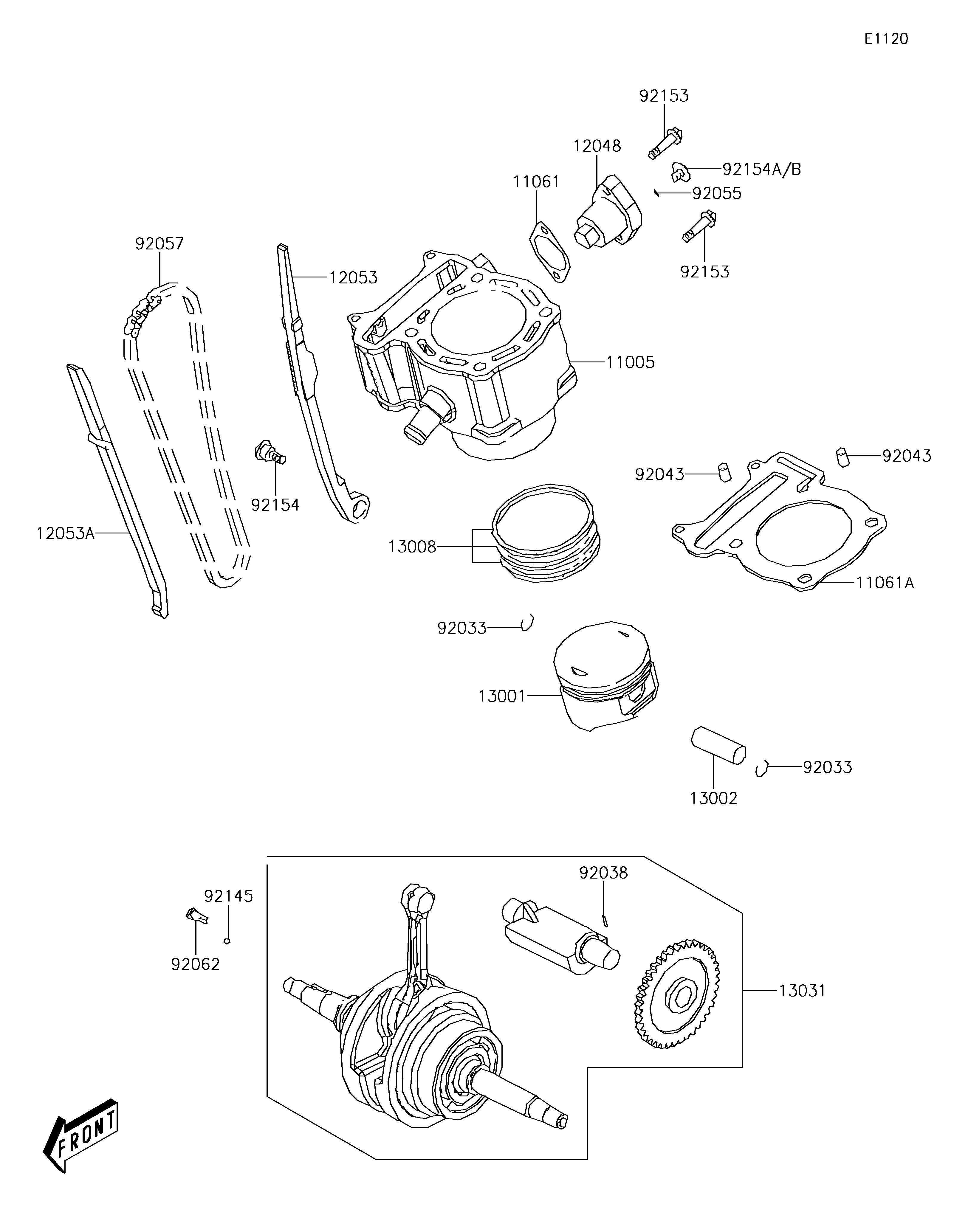

2012 BRUTE FORCE® 300 - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
11005
11061
11061A
12048
12053
12053A
13001
13002
13008
13031
92033
92033
92038
92043
92043
92055
92057
92062
92145
92153
92153
92154
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-Y003 1
GASKET 11061 11061-Y012 1
GASKET,CYLINDER BASE 11061A 11061-Y027 1
TENSIONER-ASSY 12048 12048-Y001 1
GUIDE-CHAIN,TENSIONER 12053 12053-Y005 1
GUIDE-CHAIN 12053A 12053-Y006 1
PISTON-ENGINE 13001 13001-Y003 1
PIN-PISTON 13002 13002-Y003 1
RING-SET-PISTON 13008 13008-Y003 1
CRANKSHAFT-COMP 13031 13031-Y003 1
RING-SNAP 92033 92033-Y014 2
KEY,WOODRUFF 92038 92038-Y002 1
PIN,10X16 92043 92043-Y013 2
RING-O,1.5X9.5 92055 92055-Y010 1
CHAIN,CAM 92057 92057-Y005 1
NOZZLE 92062 92062-Y001 1
SPRING 92145 92145-Y025 1
BOLT,FLANGE,6X22 92153 92153-Y003 2
BOLT,TENSIONER 92154 92154-Y011 1
BOLT,6X6 92154A 92154-Y012 1
