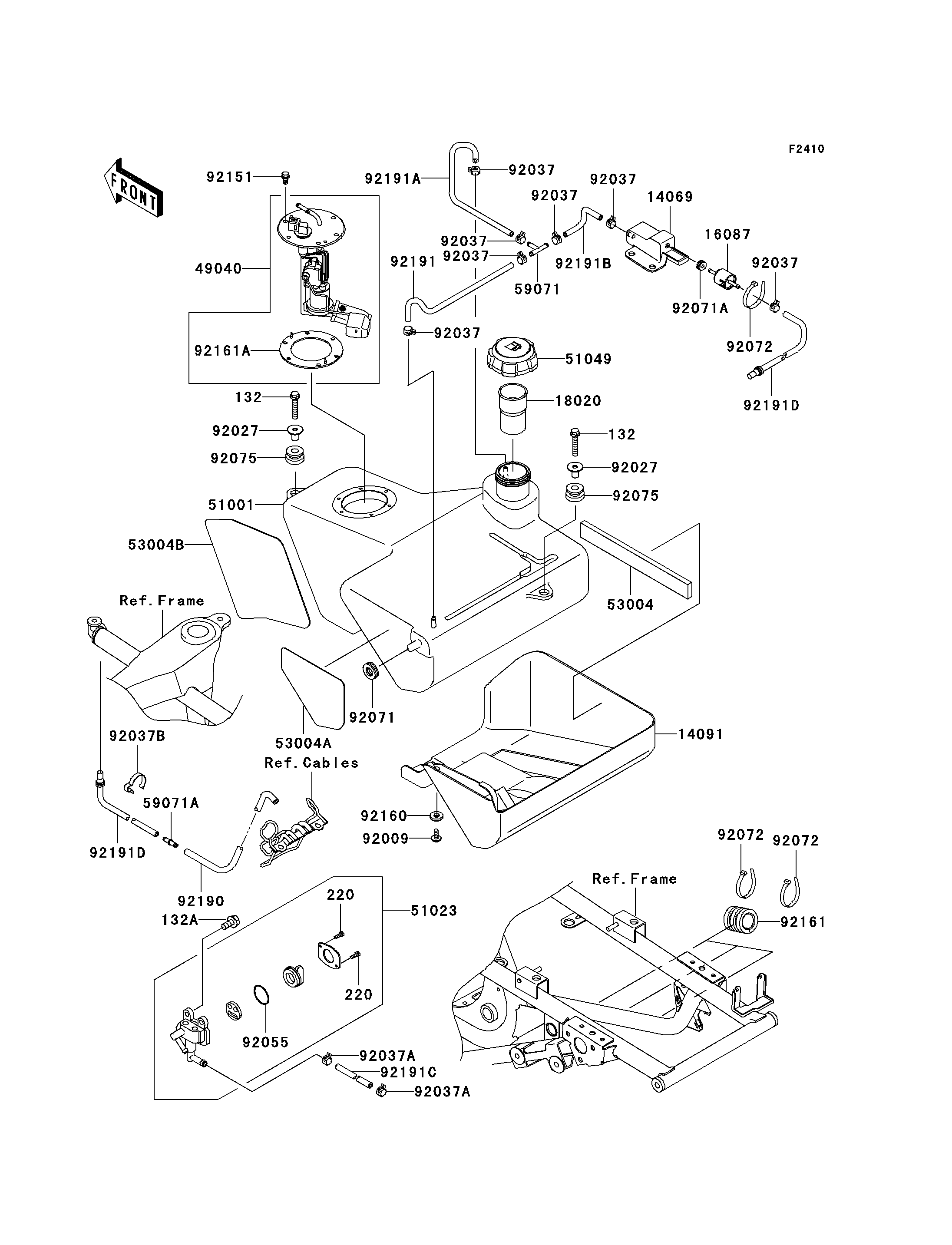

2006 Prairie 700 4x4 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
220
220
14069
14091
16087
18020
49040
51001
51023
51049
53004
53004A
53004B
59071
59071A
92009
92027
92027
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037B
92055
92071
92071A
92072
92072
92072
92075
92075
92151
92160
92161
92161A
92190
92191
92191A
92191B
92191C
92191D
92191D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X30 132 132G0630 2
BOLT-FLANGED-SMALL,6X12 132A 132J0612 2
SCREW-PAN-CROS,3X8 220 220B0308 2
BREATHER,TANK 14069 14069-1069 1
COVER,FUEL TANK 14091 14091-1404 1
VALVE-CHECK 16087 16087-0003 1
BAFFLE,FUEL TANK CAP 18020 18020-1278 1
PUMP-FUEL 49040 49040-0006 1
TANK-COMP-FUEL 51001 51001-1638 1
TAP-ASSY,FUEL 51023 51023-0002 1
CAP-TANK,FUEL 51049 51049-1128 1
MAT,FUEL TANK COVER 53004 53004-1161 1
MAT,FUEL TANK 53004A 53004-1164 1
MAT,FUEL TANK 53004B 53004-1165 1
JOINT 59071 59071-3705 1
JOINT 59071A 59071-3717 1
SCREW,6X12 92009 92009-1480 1
COLLAR,L=16.1 92027 92027-1847 2
CLAMP,TUBE 92037 92037-1461 7
CLAMP,TUBE 92037A 92037-1505 2
CLAMP,HOSE 92037B 92037-1552 1
RING-O 92055 92055-0017 1
GROMMET,AIR SUCTION VALVE 92071 92071-1249 1
GROMMET 92071A 92071-1266 1
BAND,L=188 92072 92072-1239 7
DAMPER 92075 92075-1787 2
BOLT,FLANGED,5X11.5 92151 92151-1754 6
DAMPER 92160 92160-1017 1
DAMPER,FUEL TANK,RR 92161 92161-1111 3
DAMPER,FUEL PUMP 92161A 92161-1272 1
TUBE,5X9X530 92190 92190-1256 1
TUBE,TANK-FRONT 92191 92191-1639 1
TUBE,TANK-REAR 92191A 92191-1640 1
TUBE,5X9X160 92191B 92191-1641 1
TUBE,5.3X10.5X425 92191C 92191-1665 1
TUBE,TANK BREATHER 92191D 92191-1666 2
