Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

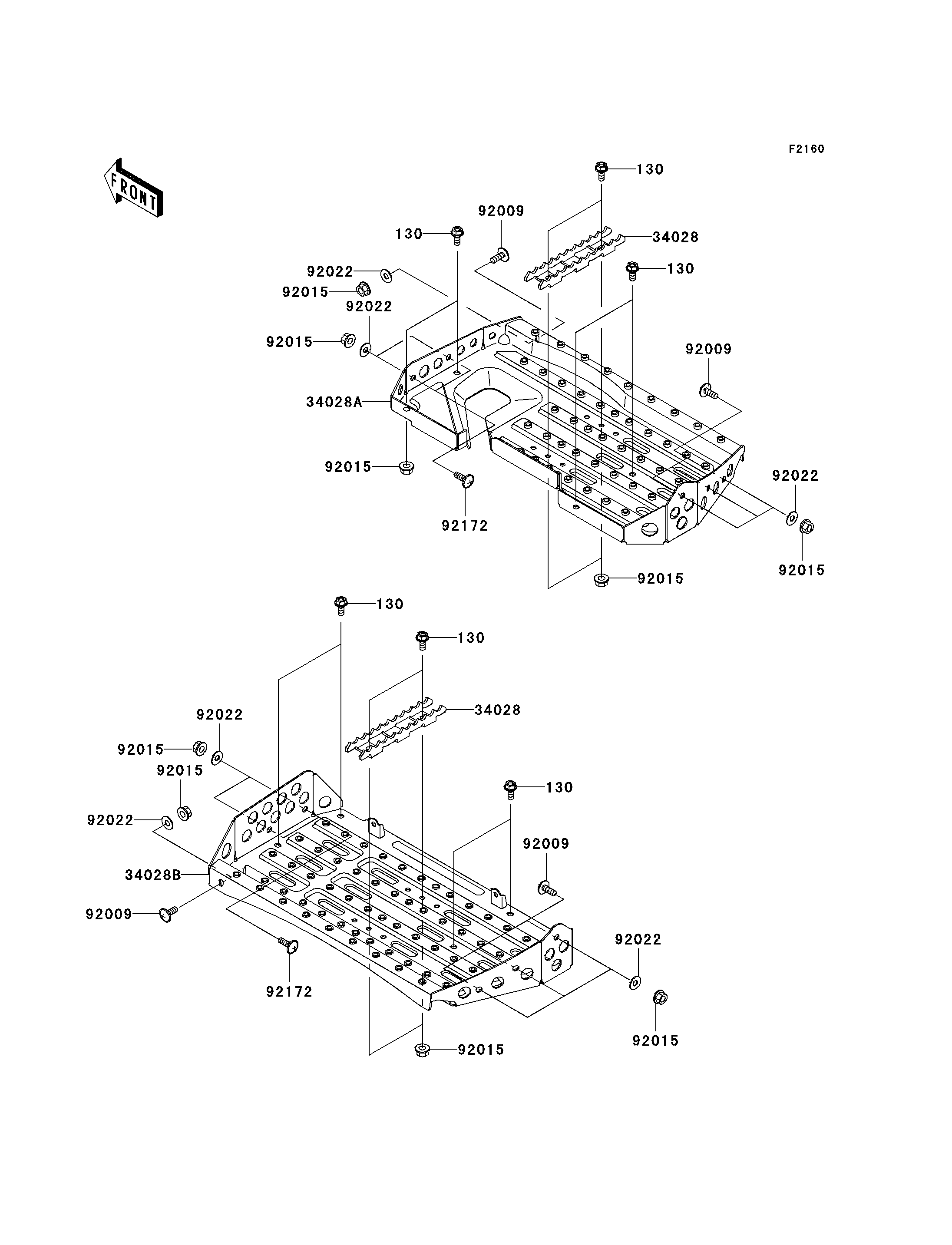

130
130
130
130
130
130
34028
34028
34028A
34028B
92009
92009
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14 | 130 | 130J0614 | 12 | ||
| STEP,FOOT PEG,BLACK | 34028 | 34028-1487-10 | 2 | ||
| STEP,RH,BLACK | 34028A | 34028-1513-10 | 1 | ||
| STEP,LH,BLACK | 34028B | 34028-1521-10 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 8 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 17 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 12 | ||
| SCREW,6X18 | 92172 | 92172-0002 | 4 |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| STEP,FOOT PEG,BLACK | |
| REF # | 34028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STEP,RH,BLACK | |
| REF # | 34028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STEP,LH,BLACK | |
| REF # | 34028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 17 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1.0 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X18 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
