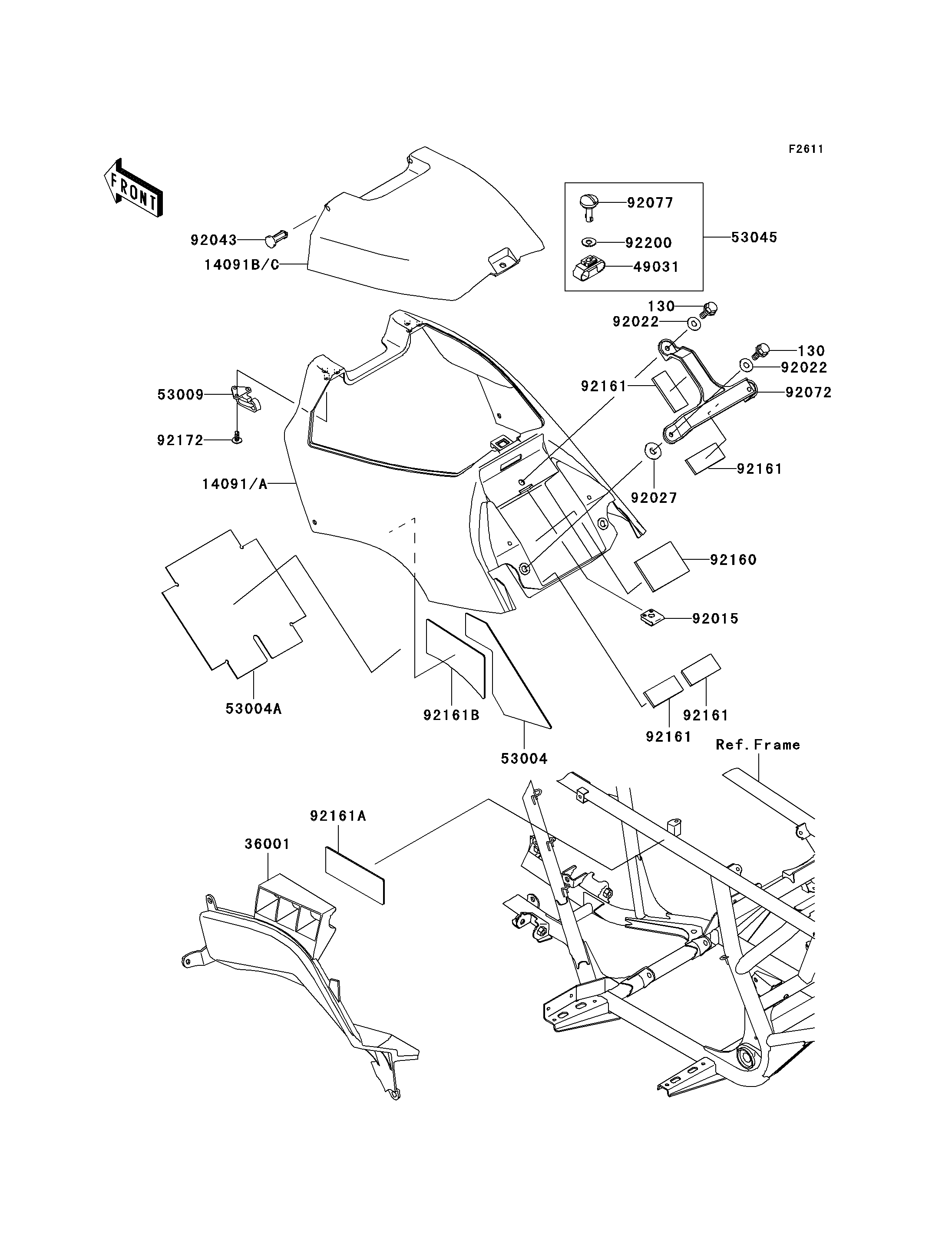

2005 Prairie 700 4x4 - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
130
130
14091
14091A
14091B
14091C
36001
49031
53004
53004A
53009
53045
92015
92022
92022
92027
92043
92072
92077
92160
92161
92161
92161
92161
92161A
92161B
92172
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130J0618 3
COVER,FUEL TANK,A.RED 14091 14091-1423-260 1
COVER,FUEL TANK,H.GREEN 14091A 14091-1423-6A 1
COVER,FUEL TANK,UPP,A.RED 14091B 14091-1424-260 1
COVER,FUEL TANK,UPP,H.GREEN 14091C 14091-1424-6A 1
COVER-SIDE 36001 36001-1647 1
LATCH 49031 49031-1060 1
MAT,FUEL TANK COVER 53004 53004-1148 1
MAT,BATTERY CASE 53004A 53004-1172 1
HINGE,FUEL TANK COVER,FR 53009 53009-1110 2
HOOK-ASSY,FUEL TANK COVER,RR 53045 53045-1070 1
NUT,CLAMP,6MM 92015 92015-1678 1
WASHER,6.5X16X1.0 92022 92022-1093 3
COLLAR,L=4.7 92027 92027-1964 2
PIN,HINGE 92043 92043-1623 2
BAND,BATTERY 92072 92072-1406 1
KNOB 92077 92077-1129 1
DAMPER,BATTERY 92160 92160-1897 1
DAMPER 92161 92161-1127 4
DAMPER,SIDE COVER 92161A 92161-1201 1
DAMPER,FUEL TANK COVER 92161B 92161-1202 1
SCREW,TAPPING,5X10 92172 92172-1061 6
WASHER 92200 92200-1578 1
