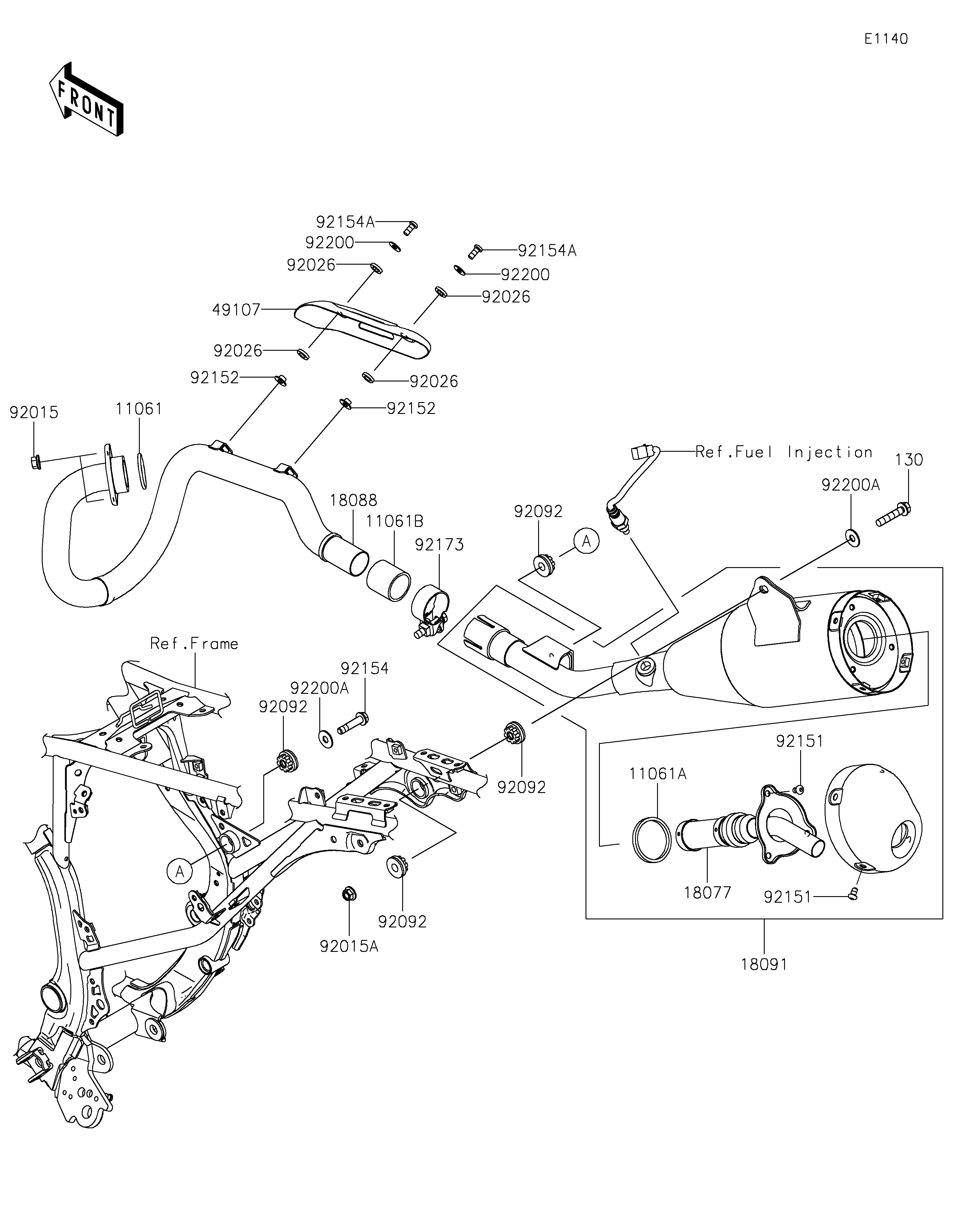

2020 KLX®230R - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
130
18077
18088
18091
49107
92015
92015A
92026
92026
92026
92026
92092
92092
92092
92092
92151
92151
92152
92152
92154
92154A
92154A
92173
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EX PIPE 11061 11061-0027 1
GASKET,J/P-SILENCER 11061A 11061-0174 1
GASKET,EXHAUST PIPE CONNECTING 11061B 11061-1055 1
BOLT-FLANGED,8X40 130 130CA0840 1
ARRESTER-SPARK 18077 18077-0046 1
PIPE-EXHAUST 18088 18088-1453 1
BODY-COMP-MUFFLER 18091 18091-1164 1
COVER-EXHAUST PIPE 49107 49107-0813 1
NUT,8MM 92015 92015-1143 2
NUT,8MM 92015A 92015-1432 1
SPACER,8.7X15.2X3 92026 92026-0868 4
BUSHING-RUBBER 92092 92092-0018 4
BOLT,SOCKET,6X10 92151 92151-1449 7
COLLAR,6.3X8.3X6.2 92152 92152-2586 2
BOLT,FLANGED,8X36 92154 92154-1301 1
BOLT,6X14 92154A 92154-3955 2
CLAMP 92173 92173-2189 1
WASHER,6.5X16X1 92200 92200-1974 2
WASHER,8.5X22X1.5 92200A 92200-1975 2
