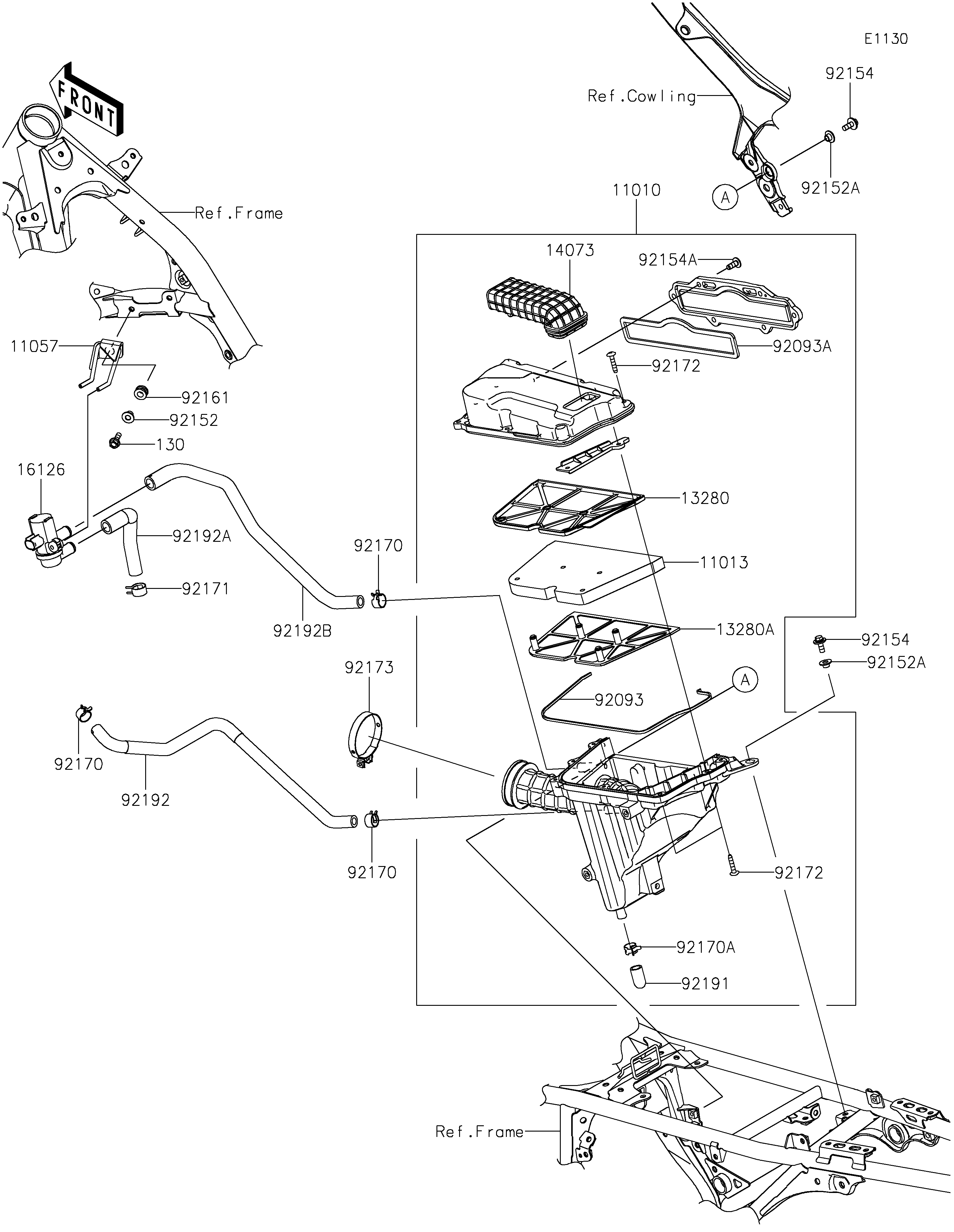

2020 KLX®230R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
11057
130
13280
13280A
14073
16126
92093
92093A
92152
92152A
92152A
92154
92154
92154A
92161
92170
92170
92170
92170A
92171
92172
92172
92173
92191
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0899 1
ELEMENT-AIR FILTER 11013 11013-0790 1
BRACKET,ASWV 11057 11057-2432 1
BOLT-FLANGED,6X18 130 130BA0618 1
HOLDER,UPP 13280 13280-0945 1
HOLDER,LWR 13280A 13280-0946 1
DUCT,IN 14073 14073-0928 1
VALVE,AIR SWITCH 16126 16126-0750 1
SEAL 92093 92093-0727 1
SEAL 92093A 92093-0728 1
COLLAR,6.3X8.3X9.2 92152 92152-1725 1
COLLAR,6.3X8.3X6.2 92152A 92152-2586 2
BOLT,FLANGED-SMALL,6X16 92154 92154-1183 2
BOLT,6X16 92154A 92154-3970 6
DAMPER 92161 92161-0031 1
CLAMP 92170 92170-1434 3
CLAMP 92170A 92170-1938 1
CLAMP 92171 92171-0533 1
SCREW 92172 92172-1291 7
CLAMP 92173 92173-2191 1
TUBE 92191 92191-1704 1
TUBE,BLOW-BY 92192 92192-1929 1
TUBE,ASWV-HEAD 92192A 92192-1930 1
TUBE,A/C-ASWV 92192B 92192-1931 1
