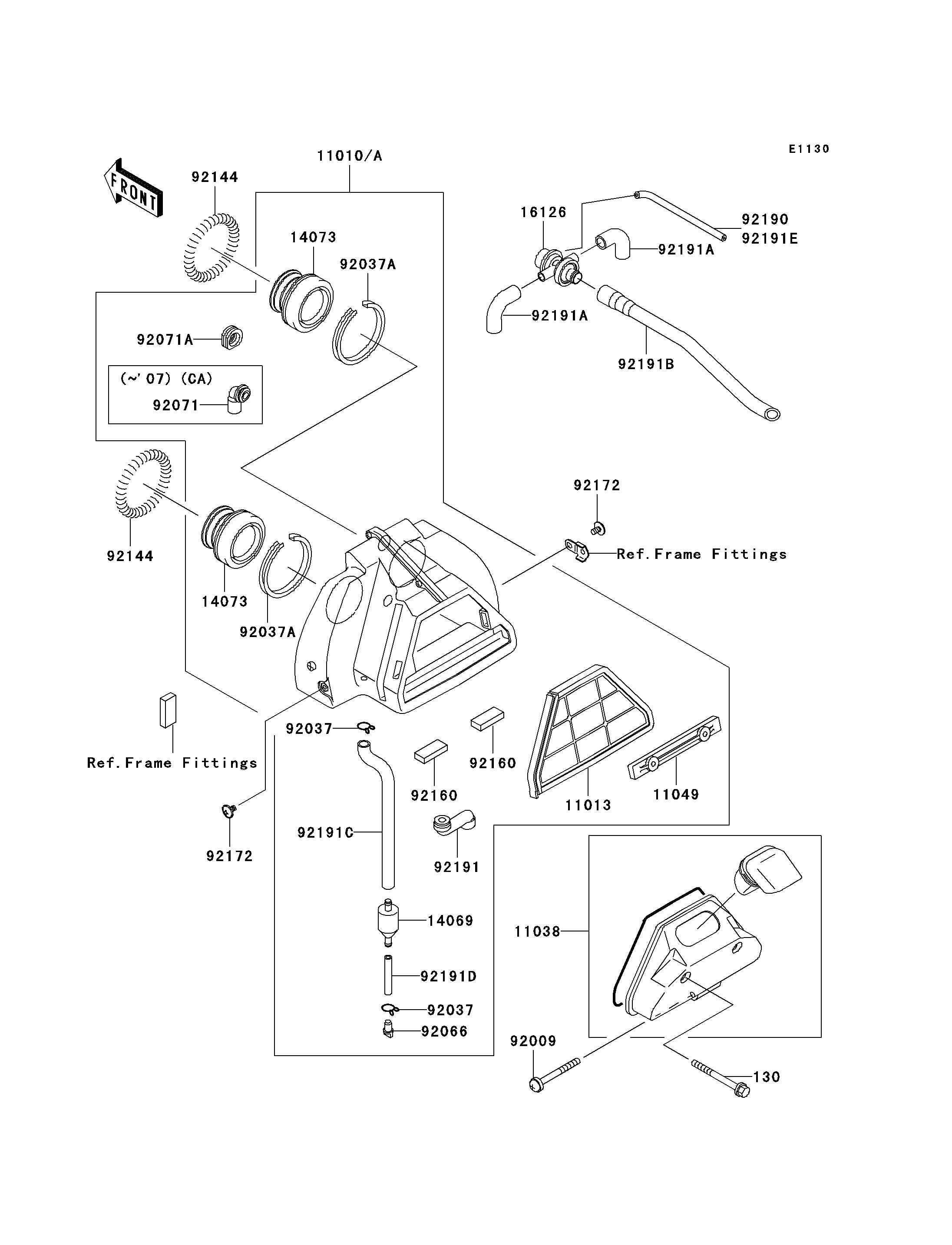

Parts Diagrams |
130
11010A
11013
11038
11049
14069
14073
14073
16126
92009
92037
92037
92037A
92037A
92066
92071A
92144
92144
92160
92160
92172
92172
92190
92191
92191A
92191A
92191B
92191C
92191D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X60 | 130 | 130BA0660 | 2 | ||
| FILTER-ASSY-AIR | 11010A | 11010-1744 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1250 | 1 | ||
| CASE-ASSY-AIR FILTER | 11038 | 11038-1107 | 1 | ||
| BRACKET | 11049 | 11049-1456 | 1 | ||
| BREATHER | 14069 | 14069-1051 | 1 | ||
| DUCT,AIR FILTER | 14073 | 14073-1651 | 2 | ||
| VALVE,AIR SWITCH | 16126 | 16126-1318 | 1 | ||
| SCREW,6X56 | 92009 | 92009-1829 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 2 | ||
| CLAMP,69MM | 92037A | 92037-1631 | 2 | ||
| PLUG,DRAIN | 92066 | 92066-1211 | 1 | ||
| GROMMET | 92071A | 92071-1165 | 1 | ||
| SPRING,AIR FILTER DUCT | 92144 | 92144-1771 | 2 | ||
| DAMPER | 92160 | 92160-1689 | 2 | ||
| SCREW,6X10 | 92172 | 92172-0005 | 2 | ||
| TUBE,4X9X336 | 92190 | 92190-1444 | 1 | ||
| TUBE,BREATHER | 92191 | 92191-1044 | 1 | ||
| TUBE | 92191A | 92191-1045 | 2 | ||
| TUBE | 92191B | 92191-1046 | 1 | ||
| TUBE,AIR FILTER | 92191C | 92191-1074 | 1 | ||
| TUBE,6X10X60 | 92191D | 92191-1075 | 1 |
