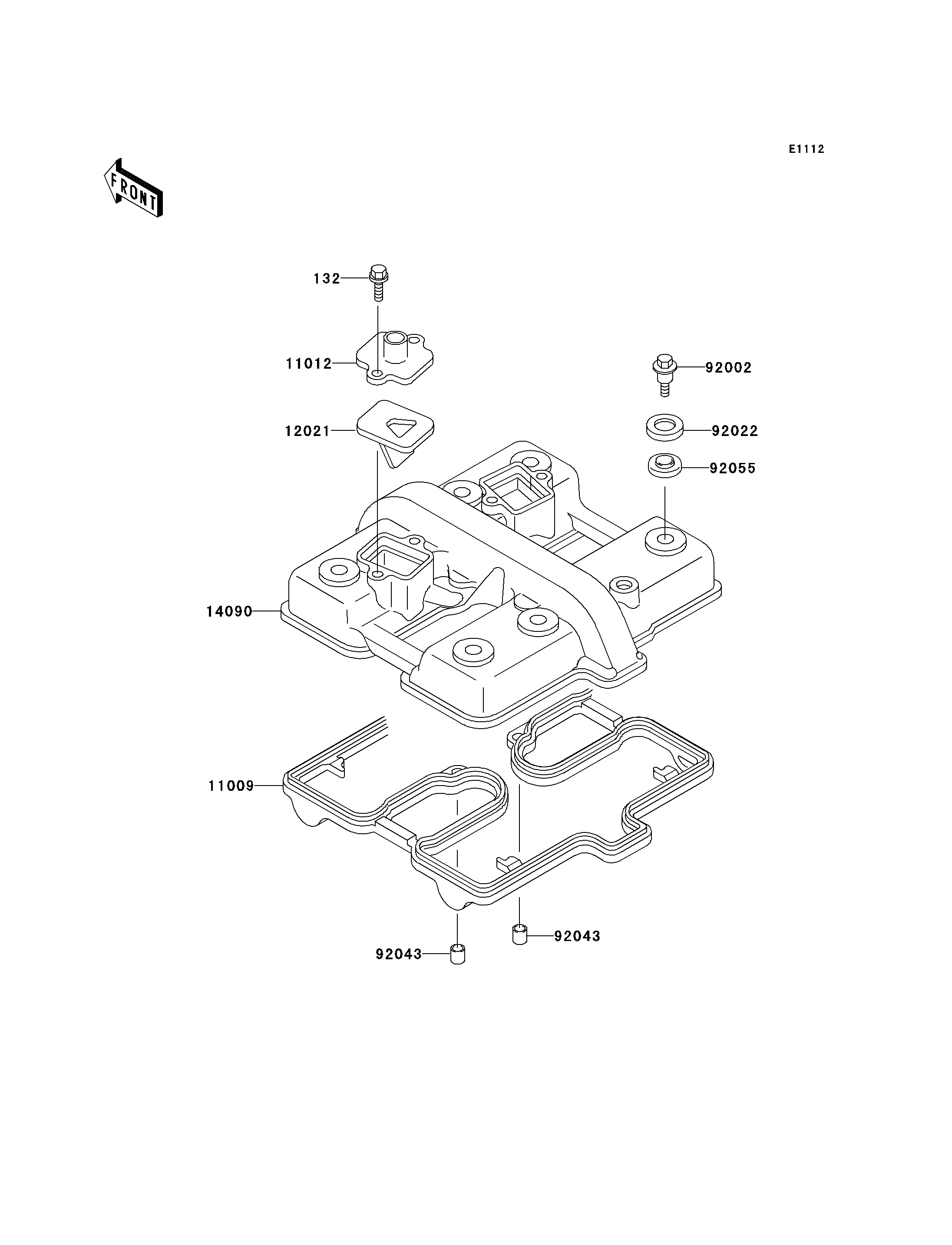

2009 Vulcan® 500 LTD - Cylinder Head Cover
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X16 | 132 | 132BD0616 | 4 | ||
| GASKET,CYLINDER HEAD COVER | 11009 | 11009-1483 | 1 | ||
| CAP,REED VALVE | 11012 | 11012-1949 | 2 | ||
| VALVE-ASSY-REED | 12021 | 12021-1026 | 2 | ||
| COVER,HEAD | 14090 | 14090-1660 | 1 | ||
| BOLT,FLANGED,6X14X13.5 | 92002 | 92002-1595 | 6 | ||
| WASHER,HEAD COVER BOLT | 92022 | 92022-1637 | 6 | ||
| PIN,DOWEL,8X10 | 92043 | 92043-1302 | 2 | ||
| RING-O,HEAD COVER BOLT | 92055 | 92055-1225 | 6 |
| BOLT-FLANGED-SMALL,6X16 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER HEAD COVER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,REED VALVE | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,HEAD | |
| REF # | 14090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X14X13.5 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,HEAD COVER BOLT | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,8X10 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,HEAD COVER BOLT | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
