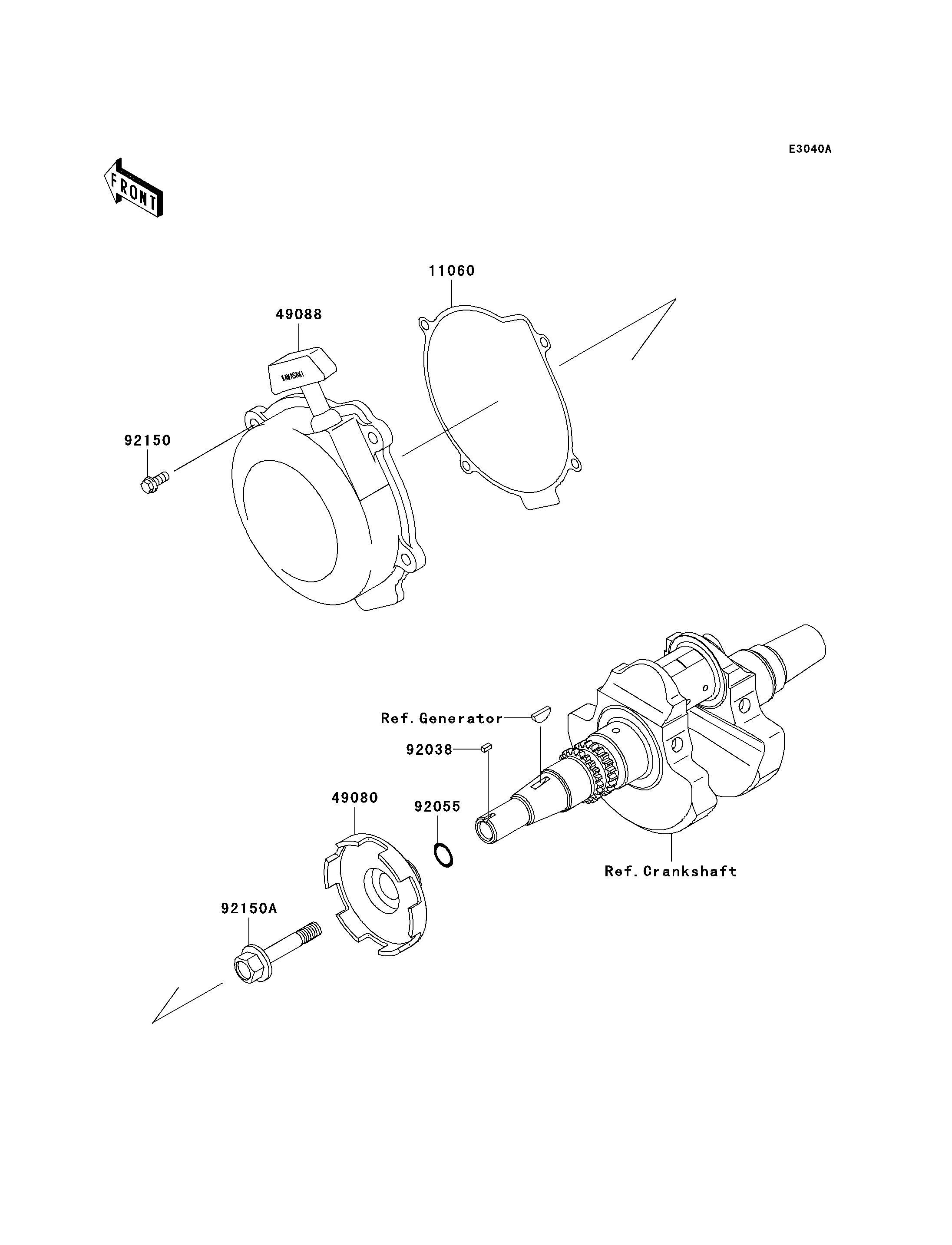

2009 Brute Force 650 4x4i Hardwoods Green HD - Recoil Starter(VF650AE640352-)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,BLANK | 11060 | 11060-1717 | 1 | ||
| PULLEY-STARTING | 49080 | 49080-1057 | 1 | ||
| STARTER-RECOIL | 49088 | 49088-1056 | 1 | ||
| KEY,SUNK | 92038 | 92038-1051 | 1 | ||
| RING-O,19.8X2.2 | 92055 | 92055-1215 | 1 | ||
| BOLT,6X14 | 92150 | 92150-1916 | 4 | ||
| BOLT,12X65 | 92150A | 92150-1987 | 1 |
