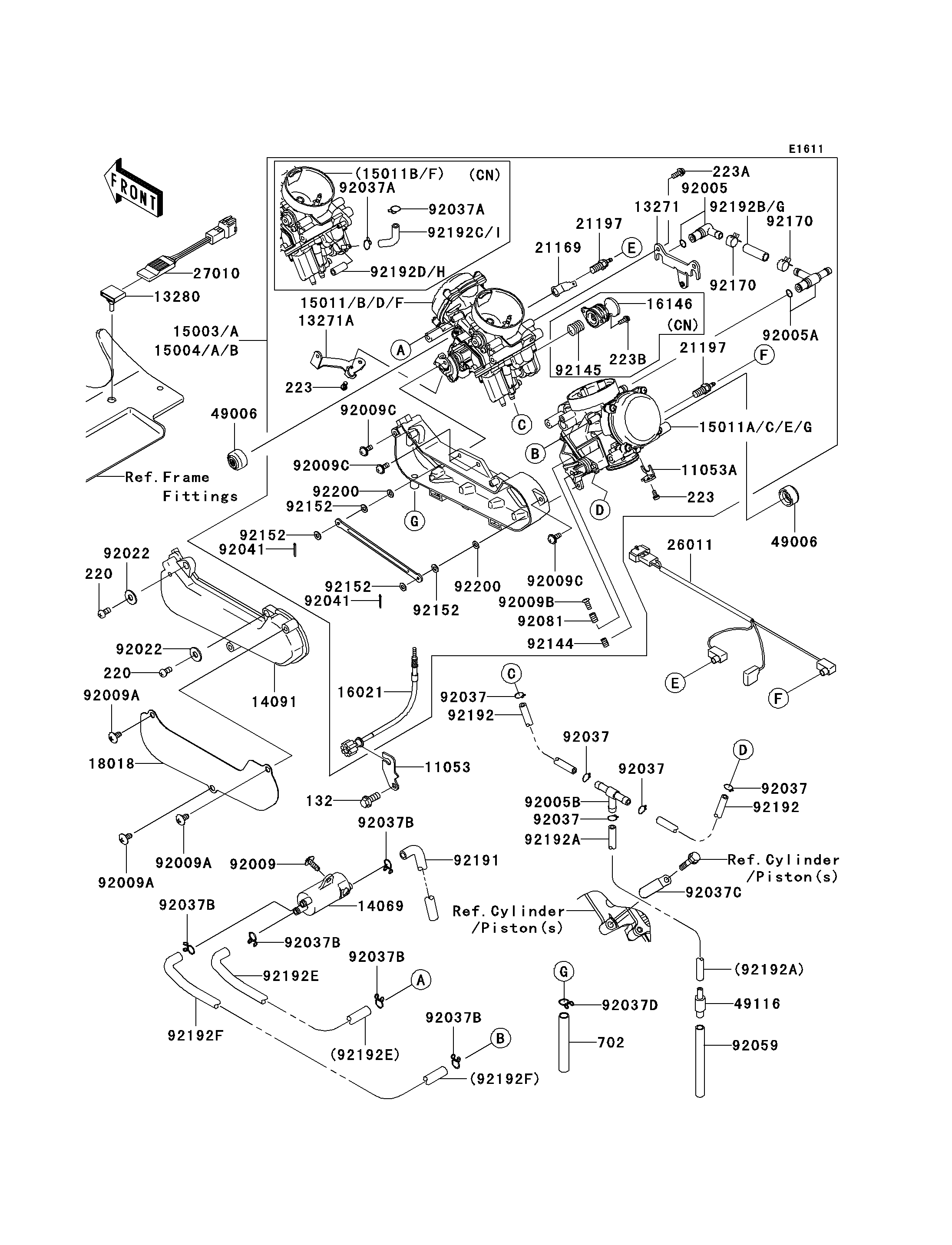

2009 Brute Force 650 4x4i Hardwoods Green HD - Carburetor
11053
11053
11053
11053A
11053A
11053A
13271
13271
13271
13271A
13271A
13271A
13280
13280
13280
14069
14069
14069
14091
14091
14091
16021
16021
16021
18018
18018
18018
21169
21169
21169
21197
21197
21197
21197
21197
21197
26011
26011
26011
27010
27010
27010
49006
49006
49006
49006
49006
49006
132
132
132
220
220
220
220
220
220
49116
49116
49116
92005
92005
92005
92005A
92005A
92005A
92005B
92005B
92005B
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009C
92009C
92009C
92009C
92009C
92009C
92009C
92009C
92009C
92022
92022
92022
92022
92022
92022
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037C
92037C
92037C
92037D
92037D
92037D
92041
92041
92041
92041
92041
92041
92059
92059
92059
92081
92081
92081
92144
92144
92144
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92170
92170
92170
92170
92170
92170
92191
92191
92191
92192
92192
92192
92192
92192
92192
92192A
92192A
92192A
92192E
92192E
92192E
92192F
92192F
92192F
92192G
92192G
92192G
92200
92200
92200
92200
92200
92200
223
223
223
223
223
223
223A
223A
223A
702
702
702
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11053 | 11053-1299 | 1 | ||
| BRACKET | 11053A | 11053-1606 | 1 | ||
| PLATE | 13271 | 13271-0750 | 1 | ||
| PLATE | 13271A | 13271-0751 | 1 | ||
| HOLDER,CARBURETOR | 13280 | 13280-1253 | 1 | ||
| BREATHER | 14069 | 14069-0002 | 1 | ||
| COVER | 14091 | 14091-0360 | 1 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-0011 | 1 | ||
| PLATE-HEAT GUARD | 18018 | 18018-0004 | 1 | ||
| TERMINAL | 21169 | 21169-0001 | 1 | ||
| HEATER | 21197 | 21197-1006 | 2 | ||
| WIRE-LEAD | 26011 | 26011-0030 | 1 | ||
| SWITCH | 27010 | 27010-0013 | 1 | ||
| BOOT,STARTER CABLE | 49006 | 49006-1353 | 2 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BD0614 | 1 | ||
| SCREW-PAN-CROS,4X8 | 220 | 220AA0408 | 2 | ||
| VALVE-ASSY | 49116 | 49116-1126 | 1 | ||
| FITTING | 92005 | 92005-0029 | 1 | ||
| FITTING | 92005A | 92005-0030 | 1 | ||
| FITTING,TUBE,T-TYPE | 92005B | 92005-1017 | 1 | ||
| SCREW,TAPPING | 92009 | 92009-1113 | 1 | ||
| SCREW,6X12 | 92009A | 92009-1480 | 3 | ||
| SCREW,SYNCHRONIZE | 92009B | 92009-1858 | 1 | ||
| SCREW | 92009C | 92009-1878 | 4 | ||
| WASHER,5.2X13X1 | 92022 | 92022-1380 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-010 | 5 | ||
| CLAMP,TUBE | 92037B | 92037-147 | 5 | ||
| CLAMP,L=45 | 92037C | 92037-1539 | 1 | ||
| CLAMP,TUBE | 92037D | 92037-1972 | 1 | ||
| COTTER | 92041 | 92041-1061 | 2 | ||
| TUBE,7X10X100 | 92059 | 92059-1736 | 1 | ||
| SPRING | 92081 | 92081-1620 | 1 | ||
| SPRING | 92144 | 92144-1451 | 1 | ||
| COLLAR | 92152 | 92152-0268 | 4 | ||
| CLAMP,TUBE | 92170 | 92170-1051 | 2 | ||
| TUBE,7X11X470 | 92191 | 92191-1531 | 1 | ||
| TUBE,4.5X8X120 | 92192 | 92192-0141 | 2 | ||
| TUBE,4.5X8X370 | 92192A | 92192-0142 | 1 | ||
| TUBE,AIR-VENT,FR | 92192E | 92192-0276 | 1 | ||
| TUBE,AIR-VENT,RR | 92192F | 92192-0277 | 1 | ||
| TUBE | 92192G | 92192-0606 | 1 | ||
| WASHER,LINK ARM,PLASTIC | 92200 | 92200-1432 | 2 | ||
| SCREW-PAN-WS-CROS,4X8 | 223 | 223AA0408 | 2 | ||
| SCREW-PAN-WS-CROS,5X14 | 223A | 223AA0514 | 2 | ||
| TUBE-RUBBER | 702 | 702A09080 | 1 | ||
| CARBURETOR-ASSY,CVKR34 | 15004A | 15004-0036 | 1 | US | |
| CARBURETOR-ASSY,CVKR34 | 15004B | 15004-0039 | 1 | CN | |
| CARBURETOR,FR | 15011D | 15011-0114 | 1 | US | |
| CARBURETOR,RR | 15011E | 15011-0115 | 1 | US | |
| CARBURETOR,FR | 15011F | 15011-0118 | 1 | CN | |
| CARBURETOR,RR | 15011G | 15011-0119 | 1 | CN | |
| COVER-ASSY,PRIMING | 16146 | 16146-1225 | 1 | CN | |
| CLAMP,TUBE | 92037A | 92037-1201 | 2 | CN | |
| SPRING,PRIMING | 92145 | 92145-1451 | 1 | CN | |
| TUBE | 92192H | 92192-0607 | 1 | CN | |
| TUBE | 92192I | 92192-0608 | 1 | CN | |
| SCREW-PAN-WS-CROS,4X12 | 223B | 223AB0412 | 2 | CN |
