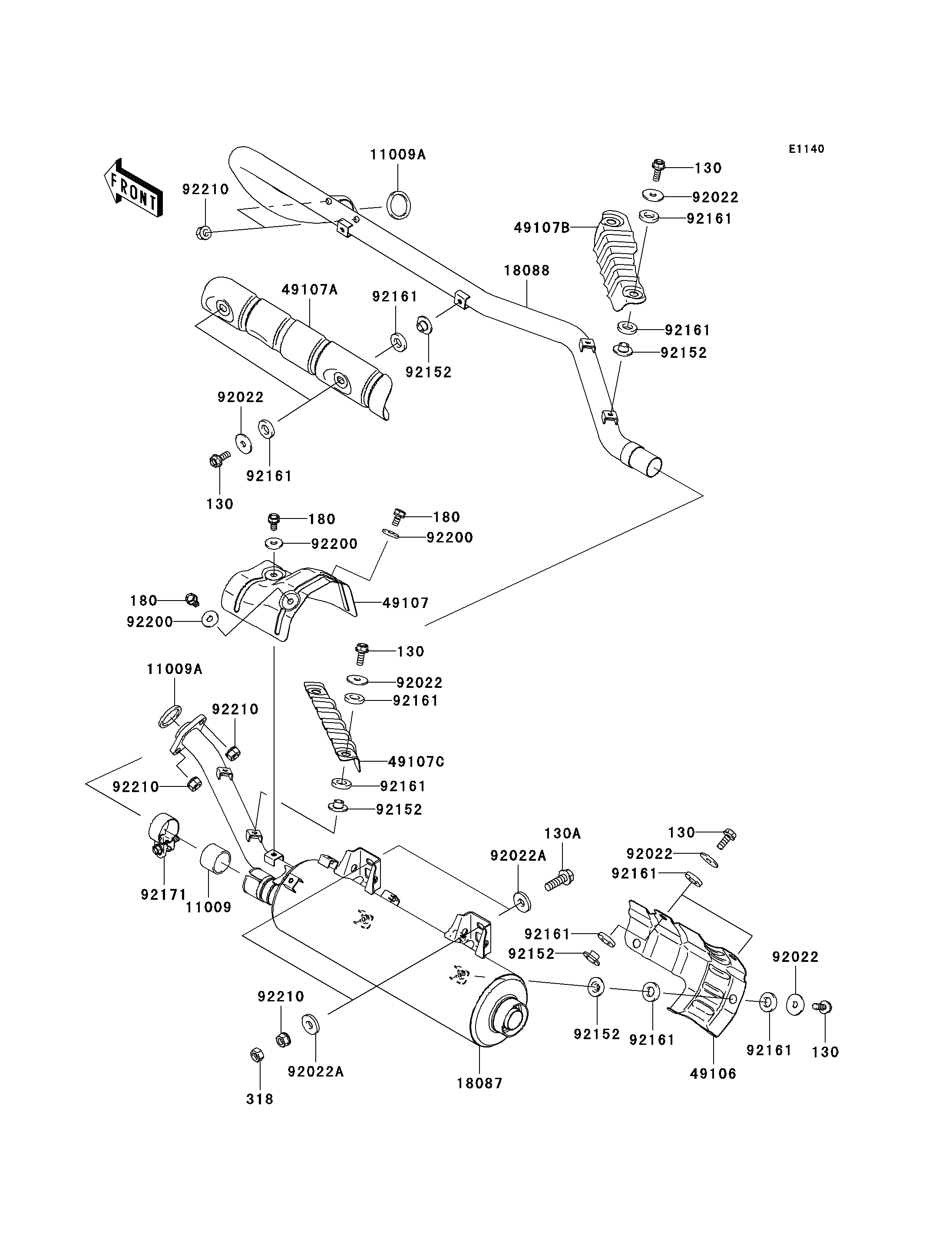

2009 Brute Force 650 4x4i Hardwoods Green HD - Muffler(s)
130
130
130
130
130
130A
180
180
180
318
11009
11009A
11009A
18087
18088
49106
49107
49107A
49107B
49107C
92022
92022
92022
92022
92022
92022A
92022A
92152
92152
92152
92152
92152
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92171
92200
92200
92200
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130BD0616 | 10 | ||
| BOLT-FLANGED,8X25 | 130A | 130CD0825 | 2 | ||
| BOLT-UPSET-WS,6X12 | 180 | 180BD0612 | 3 | ||
| NUT-HEX-SMALL,8MM | 318 | 318BA0800 | 2 | ||
| GASKET,MUFFLER CONNECTING | 11009 | 11009-1865 | 1 | ||
| GASKET,EXHAUST HOLDER | 11009A | 11009-1894 | 2 | ||
| MUFFLER | 18087 | 18087-0167 | 1 | ||
| PIPE-EXHAUST | 18088 | 18088-0379 | 1 | ||
| COVER-MUFFLER | 49106 | 49106-0048 | 1 | ||
| COVER-EXHAUST PIPE,RR | 49107 | 49107-0050 | 1 | ||
| COVER-EXHAUST PIPE,FR | 49107A | 49107-0065 | 1 | ||
| COVER-EXHAUST PIPE,MIDDLE LH | 49107B | 49107-0066 | 1 | ||
| COVER-EXHAUST PIPE,MIDDLE RH | 49107C | 49107-0067 | 1 | ||
| WASHER,6.5X22X1.6 | 92022 | 92022-237 | 10 | ||
| WASHER,8.5X22X3.2 | 92022A | 92022-276 | 4 | ||
| COLLAR | 92152 | 92152-0423 | 10 | ||
| DAMPER | 92161 | 92161-0319 | 20 | ||
| CLAMP | 92171 | 92171-1330 | 1 | ||
| WASHER,6.5X18X2.0 | 92200 | 92200-2035 | 3 | ||
| NUT,8MM | 92210 | 92210-1242 | 6 |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X25 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS,6X12 | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX-SMALL,8MM | |
| REF # | 318 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,MUFFLER CONNECTING | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST HOLDER | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MUFFLER | |
| REF # | 18087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST | |
| REF # | 18088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER | |
| REF # | 49106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,RR | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,FR | |
| REF # | 49107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,MIDDLE LH | |
| REF # | 49107B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,MIDDLE RH | |
| REF # | 49107C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X22X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X22X3.2 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X18X2.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
