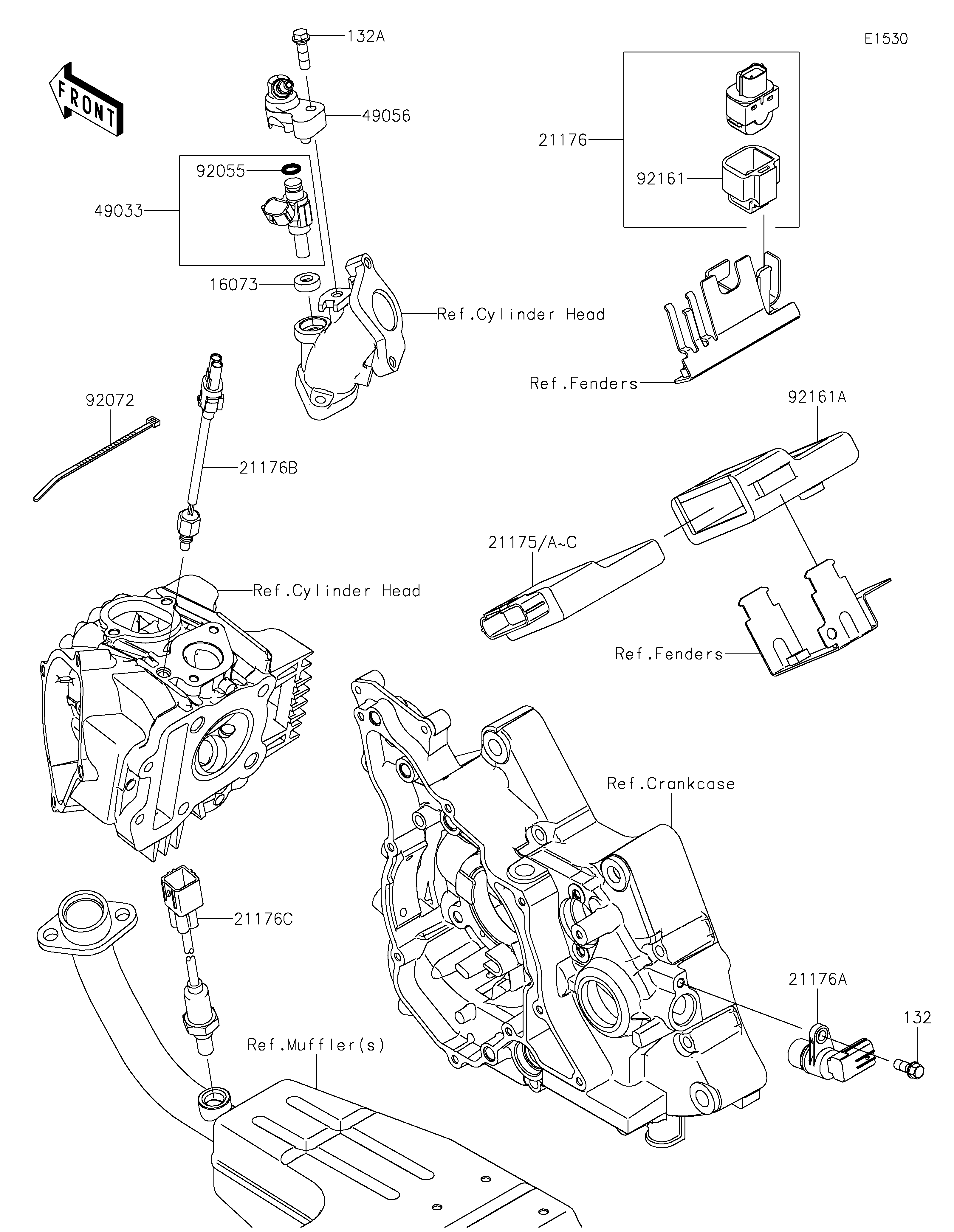

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X16 | 132 | 132BA0616 | 1 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132BA0620 | 1 | ||
| INSULATOR | 16073 | 16073-0129 | 1 | ||
| CONTROL UNIT-ELECTRONIC | 21175B | 21175-1524 | 1 | CN,US | |
| CONTROL UNIT-ELECTRONIC | 21175C | 21175-1525 | 1 | CA | |
| SENSOR,VEHICLE-DOWN | 21176 | 21176-0704 | 1 | ||
| SENSOR,SPEED | 21176A | 21176-0806 | 1 | ||
| SENSOR,ENGINE TEMP | 21176B | 21176-0817 | 1 | ||
| SENSOR,OXYGEN | 21176C | 21176-0826 | 1 | ||
| NOZZLE-INJECTION | 49033 | 49033-0038 | 1 | ||
| PIPE-INJECTION | 49056 | 49056-0043 | 1 | ||
| RING-O,INJECTION NOZZLE | 92055 | 92055-0124 | 1 | ||
| BAND | 92072 | 92072-0054 | 1 | ||
| DAMPER | 92161 | 92161-0951 | 1 | ||
| DAMPER,ECU | 92161A | 92161-1788 | 1 |
