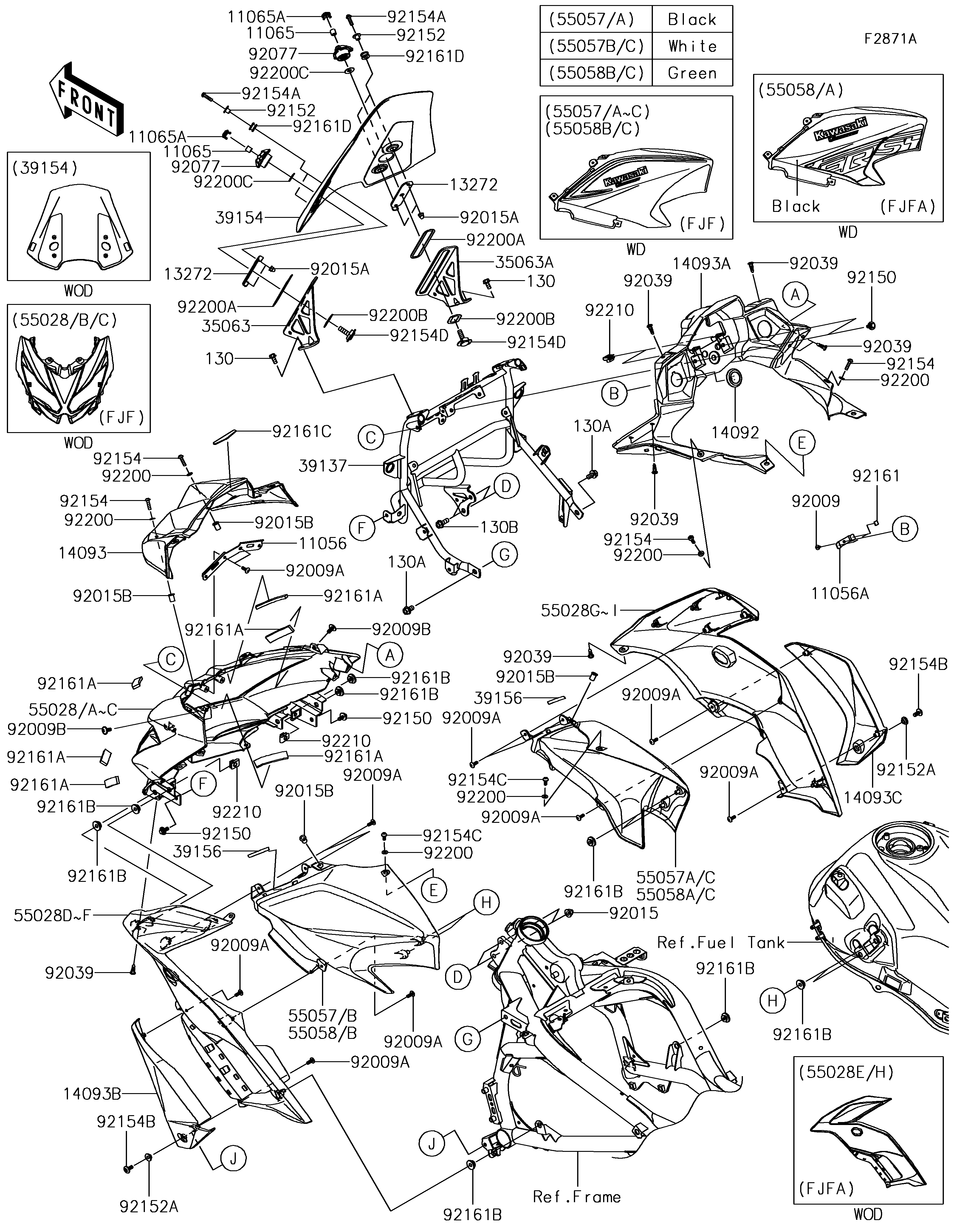

2018 VERSYS® 650 ABS - Cowling(FJF/FJFA)
11056
11056
11056A
11056A
11065
11065
11065
11065
11065A
11065A
11065A
11065A
13272
13272
13272
13272
14092
14092
14093
14093
14093A
14093A
14093B
14093B
14093C
14093C
35063
35063
35063A
35063A
39137
39137
39154
39154
39156
39156
39156
39156
55028
55028
55028B
55028B
55028C
55028C
55028D
55028D
55028F
55028F
55028G
55028G
55028I
55028I
55057
55057
55057A
55057A
55057B
55057B
55057C
55057C
55058B
55058B
55058C
55058C
92009
92009
130
130
130
130
130A
130A
130A
130A
130B
130B
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92077
92077
92077
92077
92150
92150
92150
92150
92150
92150
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154C
92154C
92154D
92154D
92154D
92154D
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161C
92161C
92161D
92161D
92161D
92161D
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200B
92200B
92200B
92200B
92200C
92200C
92200C
92200C
92210
92210
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEAD LAMP | 11056 | 11056-3975 | 1 | ||
| BRACKET,CAP COVER | 11056A | 11056-4313 | 2 | ||
| CAP | 11065 | 11065-0156 | 2 | ||
| CAP,KNOB | 11065A | 11065-0734 | 2 | ||
| PLATE,WINDSHIELD | 13272 | 13272-2333 | 2 | ||
| COVER,DC SOCKET | 14092 | 14092-0214 | 2 | ||
| COVER,METER,UPP | 14093 | 14093-0093 | 1 | ||
| COVER,METER | 14093A | 14093-0094 | 1 | ||
| COVER,RADIATOR,LH | 14093B | 14093-0095 | 1 | ||
| COVER,RADIATOR RH | 14093C | 14093-0096 | 1 | ||
| STAY,WINDSHIELD,LH | 35063 | 35063-1321 | 1 | ||
| STAY,WINDSHIELD,RH | 35063A | 35063-1322 | 1 | ||
| STAY-COMP,UPP COWL. | 39137 | 39137-0669 | 1 | ||
| WINDSHIELD | 39154 | 39154-0361 | 1 | ||
| PAD,6X70 | 39156 | 39156-1920 | 2 | ||
| COWLING,UPP,M.M.C.GREEN | 55028 | 55028-0514-36T | 1 | CN | |
| COWLING,UPP,P.B.WHITE | 55028B | 55028-0514-54X | 1 | CA,US | |
| COWLING,UPP,M.F.S.BLACK | 55028C | 55028-0514-739 | 1 | ||
| COWLING,SIDE,LH,M.C.GRAY | 55028D | 55028-0515-51A | 1 | ||
| COWLING,SIDE,LH,M.F.S.BLACK | 55028F | 55028-0515-739 | 1 | ||
| COWLING,SIDE,RH,M.C.GRAY | 55028G | 55028-0516-51A | 1 | ||
| COWLING,SIDE,RH,M.F.S.BLACK | 55028I | 55028-0516-739 | 1 | ||
| COWLING,TANK SIDE,LH,M.F.S.BLK | 55057 | 55057-5492-739 | 1 | ||
| COWLING,TANK SIDE,RH,M.F.S.BLK | 55057A | 55057-5493-739 | 1 | ||
| COWLING,TANK SIDE,LH,P.B.WHITE | 55057B | 55057-5495-54X | 1 | CA,US | |
| COWLING,TANK SIDE,RH,P.B.WHITE | 55057C | 55057-5496-54X | 1 | CA,US | |
| COWLING,TANK SIDE,LH,M.M.C.GRN | 55058B | 55058-5025-36T | 1 | CN | |
| COWLING,TANK SIDE,RH,M.M.C.GRN | 55058C | 55058-5026-36T | 1 | CN | |
| SCREW,TAPPING,4X8 | 92009 | 92009-1155 | 2 | ||
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 4 | ||
| BOLT-FLANGED,8X14 | 130A | 130BA0814 | 2 | ||
| BOLT-FLANGED,8X20 | 130B | 130BA0820 | 2 | ||
| SCREW,TAPPING,5X14 | 92009A | 92009-1197 | 12 | ||
| SCREW,6X14 | 92009B | 92009-1662 | 2 | ||
| NUT,CAP,8MM | 92015 | 92015-1151 | 2 | ||
| NUT,LOCK,FLANGE CAP,5MM | 92015A | 92015-1263 | 4 | ||
| NUT,WELL,5MM | 92015B | 92015-1757 | 4 | ||
| RIVET | 92039 | 92039-0709 | 8 | ||
| KNOB,ADJUSTERS | 92077 | 92077-0034 | 2 | ||
| BOLT,FLANGED,6X14 | 92150 | 92150-1689 | 4 | ||
| COLLAR | 92152 | 92152-0092 | 4 | ||
| COLLAR,6.5X10X5.6 | 92152A | 92152-0445 | 2 | ||
| BOLT,SOCKET,5X20 | 92154 | 92154-0216 | 4 | ||
| BOLT,SOCKET,5X20 | 92154A | 92154-0919 | 4 | ||
| BOLT,SOCKET,6X14 | 92154B | 92154-0932 | 2 | ||
| BOLT,SOCKET,5X12 | 92154C | 92154-1421 | 2 | ||
| BOLT,PLATE,8X30 | 92154D | 92154-1438 | 2 | ||
| DAMPER | 92161 | 92161-0816 | 4 | ||
| DAMPER,15X70X5 | 92161A | 92161-1380 | 6 | ||
| DAMPER | 92161B | 92161-1531 | 10 | ||
| DAMPER,10X65X2 | 92161C | 92161-1758 | 1 | ||
| DAMPER | 92161D | 92161-1938 | 4 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 6 | ||
| WASHER | 92200A | 92200-0801 | 2 | ||
| WASHER,23.5X32X1 | 92200B | 92200-0802 | 2 | ||
| WASHER,8.2X20X1 | 92200C | 92200-1751 | 2 | ||
| NUT,CLIP,6MM | 92210 | 92210-0933 | 4 |
