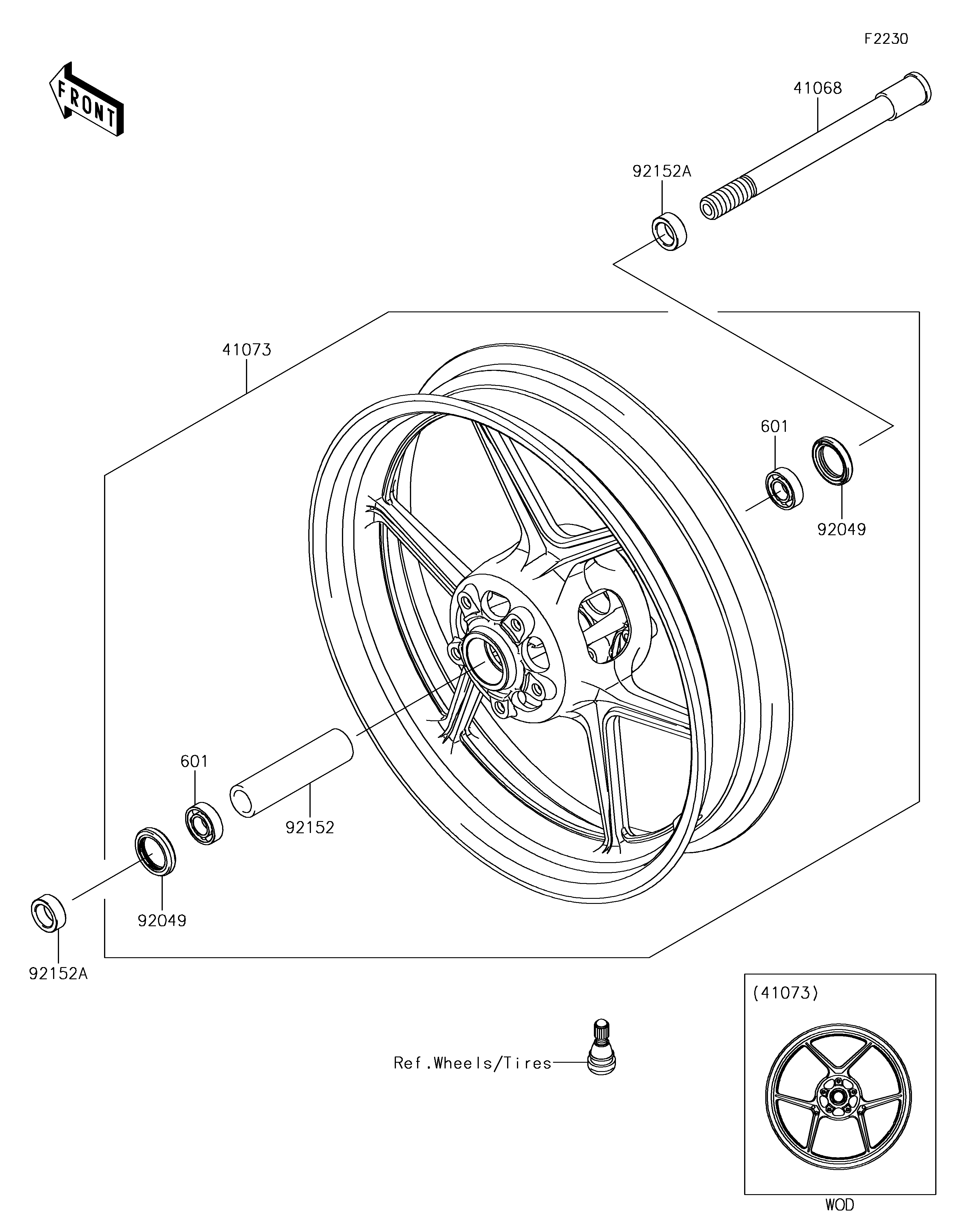

41068
41073
601
601
92049
92049
92152
92152A
92152A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,FR 41068 41068-0606 1
WHEEL-ASSY,FR,G.BLACK 41073 41073-0655-QT 1
BEARING-BALL,#6004UUC3 601 601B6004UU 2
SEAL-OIL,BJN30427 92049 92049-0130 2
COLLAR,FR HUB,L=115 92152 92152-0087 1
COLLAR,20X30X11 92152A 92152-0828 2
