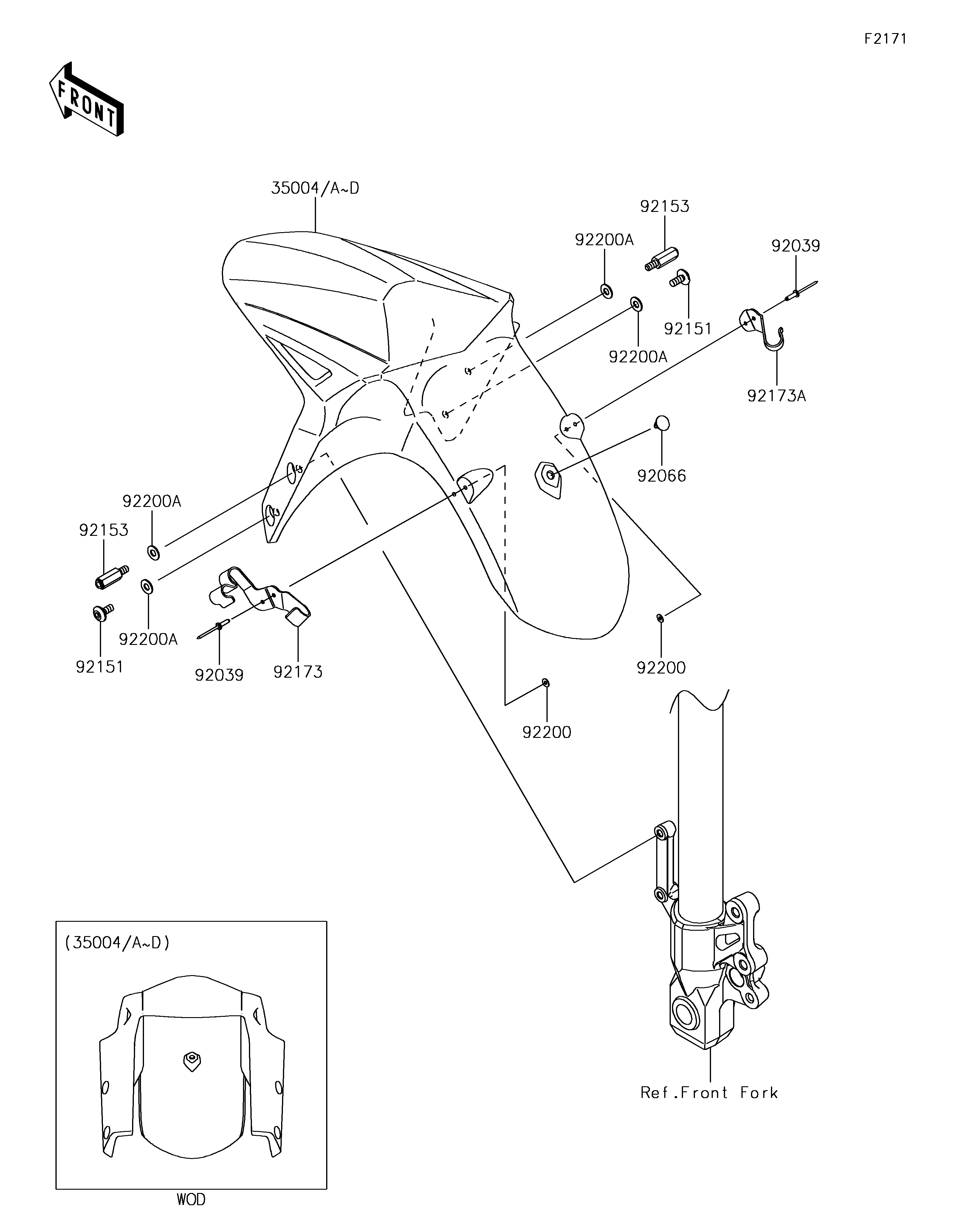

Parts Diagrams |
35004A
92039
92039
92066
92151
92151
92153
92153
92173
92173A
92200
92200
92200A
92200A
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FRONT,C.L.GREEN | 35004A | 35004-0340-51P | 1 | ||
| RIVET | 92039 | 92039-0705 | 4 | ||
| PLUG,ANCHOR CLIP | 92066 | 92066-0741 | 1 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 2 | ||
| BOLT,6MM | 92153 | 92153-1533 | 2 | ||
| CLAMP,FENDER,LH | 92173 | 92173-1286 | 1 | ||
| CLAMP,FENDER,RH | 92173A | 92173-1287 | 1 | ||
| WASHER,3.3X8X0.5 | 92200 | 92200-0514 | 4 | ||
| WASHER,6.5X14X1 | 92200A | 92200-1388 | 4 |
| FENDER-FRONT,C.L.GREEN | |
| REF # | 35004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG,ANCHOR CLIP | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6MM | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FENDER,LH | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FENDER,RH | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,3.3X8X0.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X14X1 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
