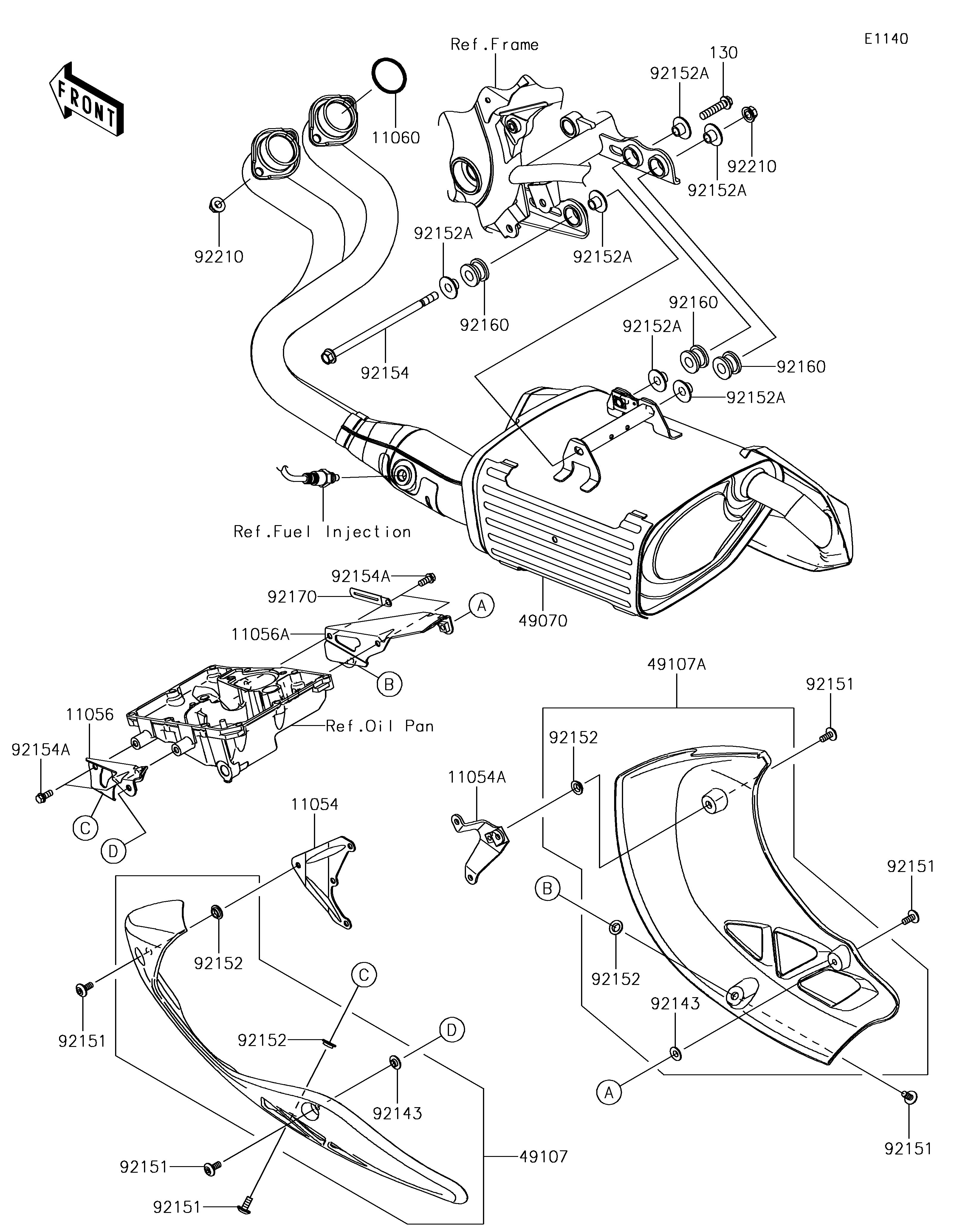

2017 Versys 650 ABS - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054A
11056
11056A
11060
130
49070
49107
49107A
92143
92143
92151
92151
92151
92151
92151
92151
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92154
92154A
92154A
92160
92160
92160
92170
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,EX.COVER,UPP,LH 11054 11054-0420 1
BRACKET,EX.COVER,UPP,RH 11054A 11054-0421 1
BRACKET,EX.COVER,LWR,LH 11056 11056-3927 1
BRACKET,EX.COVER,LWR,RH 11056A 11056-4298 1
GASKET,EXHAUST PIPE HOLDER 11060 11060-1103 2
BOLT-FLANGED,8X35 130 130CD0835 1
MUFFLER-COMP 49070 49070-0782 1
COVER-EXHAUST PIPE,LH,F.BLACK 49107 49107-0081-6Z 1
COVER-EXHAUST PIPE,RH,F.BLACK 49107A 49107-0082-6Z 1
COLLAR 92143 92143-1087 2
BOLT,SOCKET,6X14 92151 92151-1654 6
COLLAR,8.8X11.2X4 92152 92152-0909 4
COLLAR 92152A 92152-1692 6
BOLT,FLANGED,8X165 92154 92154-0189 1
BOLT,FLANGED,6X14 92154A 92154-0777 4
DAMPER,MUFFLER MOUNT 92160 92160-1116 3
CLAMP 92170 92170-1514 1
NUT,8MM 92210 92210-1114 5
