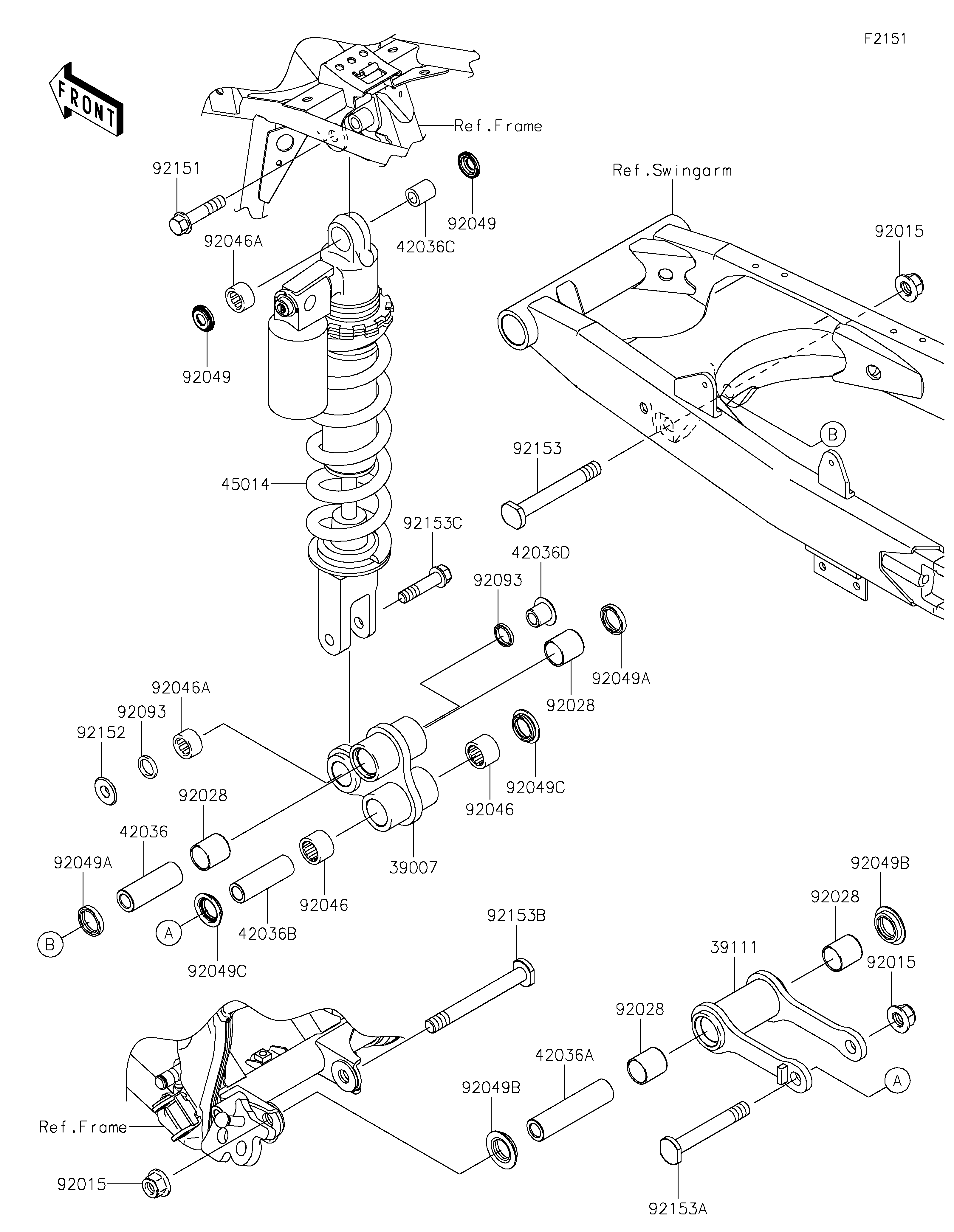

2020 KLX®140G - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
39007
39111
42036
42036A
42036B
42036C
42036D
45014
92015
92015
92015
92028
92028
92028
92028
92046
92046
92046A
92046A
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
92093
92093
92151
92152
92153
92153A
92153B
92153C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK,P.SILVER 39007 39007-0141-458 1
ROD-TIE,SUSPENSION,P.SILVER 39111 39111-0062-458 1
SLEEVE,12.1X20X58 42036 42036-0046 1
SLEEVE,12.1X20X82.6 42036A 42036-0047 1
SLEEVE,12.1X18X58 42036B 42036-0058 1
SLEEVE,10X16X19 42036C 42036-1248 1
SLEEVE 42036D 42036-1351 1
SHOCKABSORBER,BLACK 45014 45014-0545-10 1
NUT,LOCK,FLANGED,12MM 92015 92015-1433 3
BUSHING 92028 92028-1598 4
BEARING-NEEDLE,18BM2416 92046 92046-1144 2
BEARING-NEEDLE,16BM2212 92046A 92046-1192 2
SEAL-OIL 92049 92049-0069 2
SEAL-OIL 92049A 92049-0112 2
SEAL-OIL,ARM 92049B 92049-1109 2
SEAL-OIL 92049C 92049-1328 2
SEAL 92093 92093-0139 2
BOLT,FLANGED,10X45 92151 92151-1413 1
COLLAR 92152 92152-1139 1
BOLT,12X95 92153 92153-1827 1
BOLT,12X85 92153A 92153-1828 1
BOLT,12X108 92153B 92153-1829 1
BOLT,FLANGED,10X42 92153C 92153-1957 1
