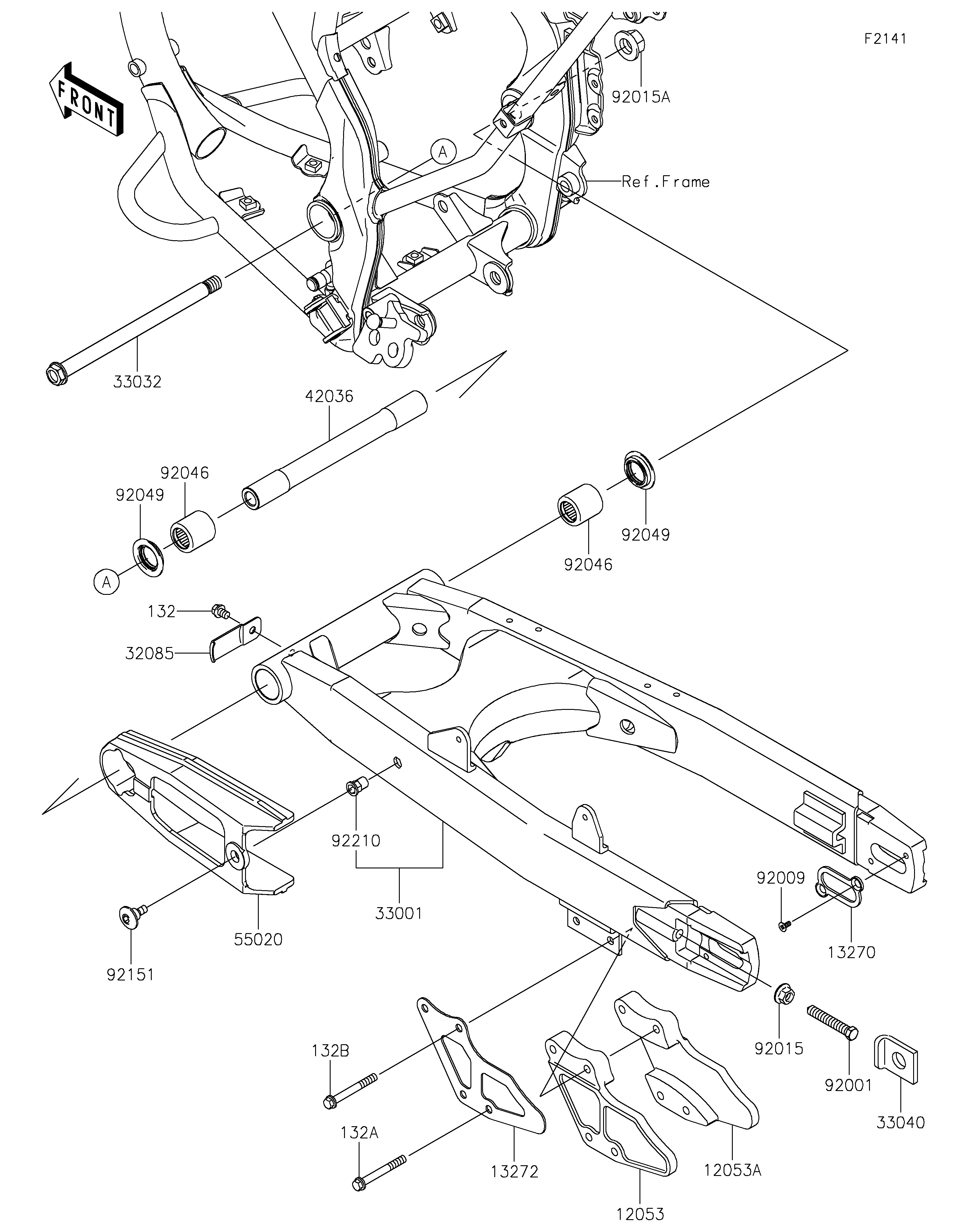

2020 KLX®140G - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
12053
12053A
132
13270
13272
132A
132B
32085
33001
33032
33040
42036
55020
92001
92009
92015
92015A
92046
92046
92049
92049
92151
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE-CHAIN 12053 12053-0116 1
GUIDE-CHAIN 12053A 12053-0118 1
BOLT-FLANGED-SMALL,6X8 132 132BA0608 1
PLATE 13270 13270-1899 2
PLATE,CHAIN GUIDE 13272 13272-0406 1
BOLT-FLANGED-SMALL,6X45 132A 132BA0645 2
BOLT-FLANGED-SMALL,6X50 132B 132BA0650 2
STOPPER 32085 32085-0138 1
ARM-COMP-SWING 33001 33001-0656 1
SHAFT-SWING ARM,14X227 33032 33032-0030 1
ADJUSTER-CHAIN 33040 33040-0032 2
SLEEVE,PIVOT,L=197.8 42036 42036-0045 1
GUARD,CHAIN 55020 55020-0336 1
BOLT,8X46 92001 92001-1179 2
SCREW,5X10 92009 92009-1828 4
NUT,FLANGED,8MM 92015 92015-1014 2
NUT,14MM 92015A 92015-1407 1
BEARING-NEEDLE,BM202726 92046 92046-1110 2
SEAL-OIL,ARM 92049 92049-1109 2
BOLT,SOCKET,6X18 92151 92151-1149 1
NUT,POP,6MM,L=15 92210 92210-1397 1
