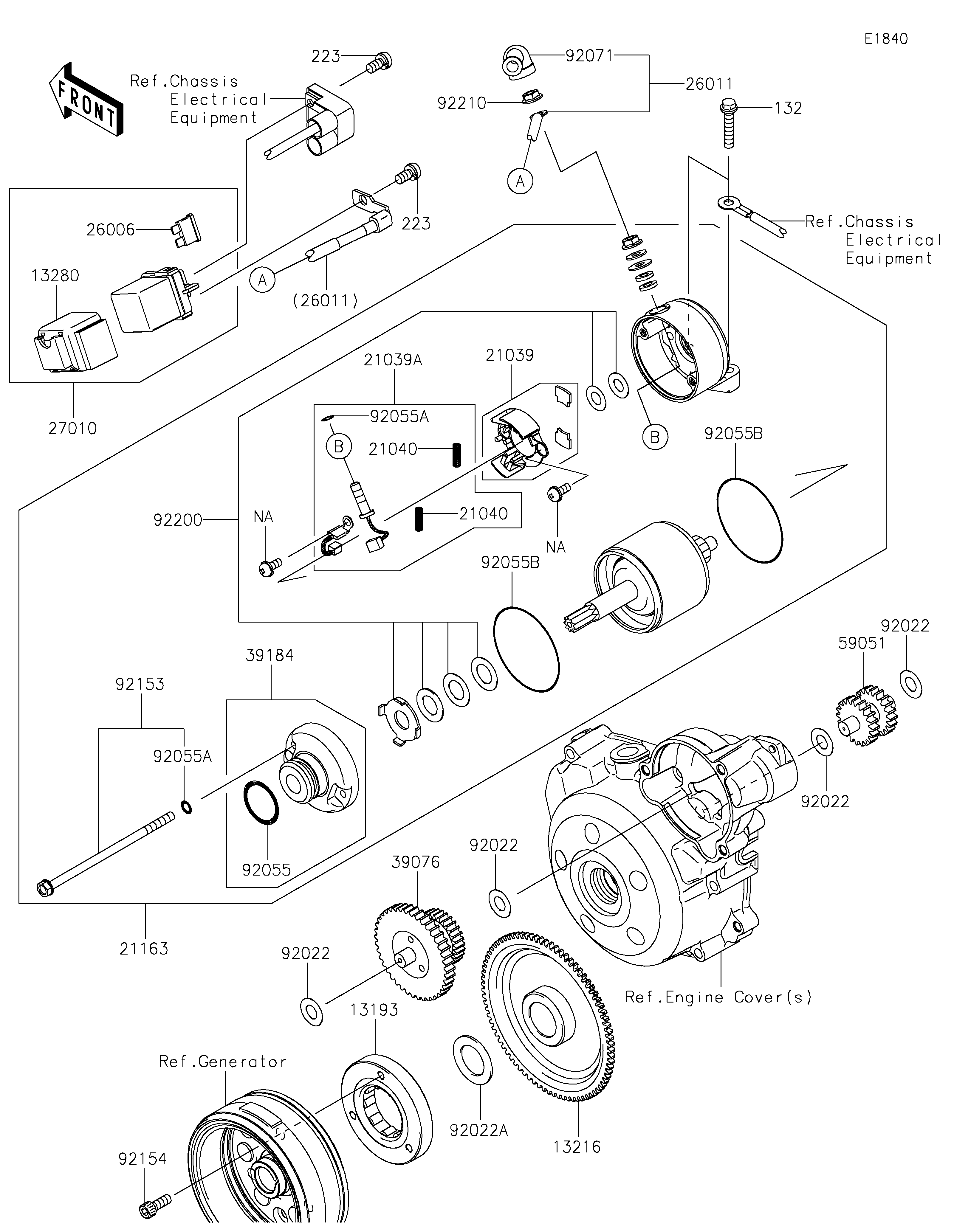

2020 KLX®140G - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13193
132
13216
13280
21039
21039A
21040
21040
21163
223
223
26006
26011
27010
39076
39184
59051
92022
92022
92022
92022
92022A
92055
92055A
92055A
92055B
92055B
92071
92153
92154
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY-ONEWAY 13193 13193-0005 1
BOLT-FLANGED-SMALL,6X30 132 132BD0630 2
GEAR-COMP,FREE WHEEL 13216 13216-0040 1
HOLDER 13280 13280-0818 1
BRUSH 21039 21039-0007 1
BRUSH 21039A 21039-0008 1
SPRING-BRUSH 21040 21040-0004 2
STARTER-ELECTRIC 21163 21163-0762 1
SCREW-PAN-WS-CROS,5X10 223 223AA0510 2
FUSE,BLADE,10A,RED 26006 26006-1007 1
WIRE-LEAD,STARTER 26011 26011-0782 1
SWITCH,MAGNETIC 27010 27010-0798 1
LIMITER,STARTER IDLE GEAR 39076 39076-0020 1
BRACKET-ASSY 39184 39184-0015 1
GEAR-SPUR,IDLE 59051 59051-0785 1
WASHER,10.2X20X0.5 92022 92022-1649 4
WASHER,22.3X35X1.6 92022A 92022-212 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 3
RING-O 92055B 92055-1550 2
GROMMET 92071 92071-0705 1
BOLT 92153 92153-1914 2
BOLT,SOCKET,6X16 92154 92154-0235 3
WASHER,SET 92200 92200-0407 1
NUT,FLANGED,6MM 92210 92210-1514 1
