Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
35004
35019
35022
35022A
39156
39156
92150
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92153
92153
92153

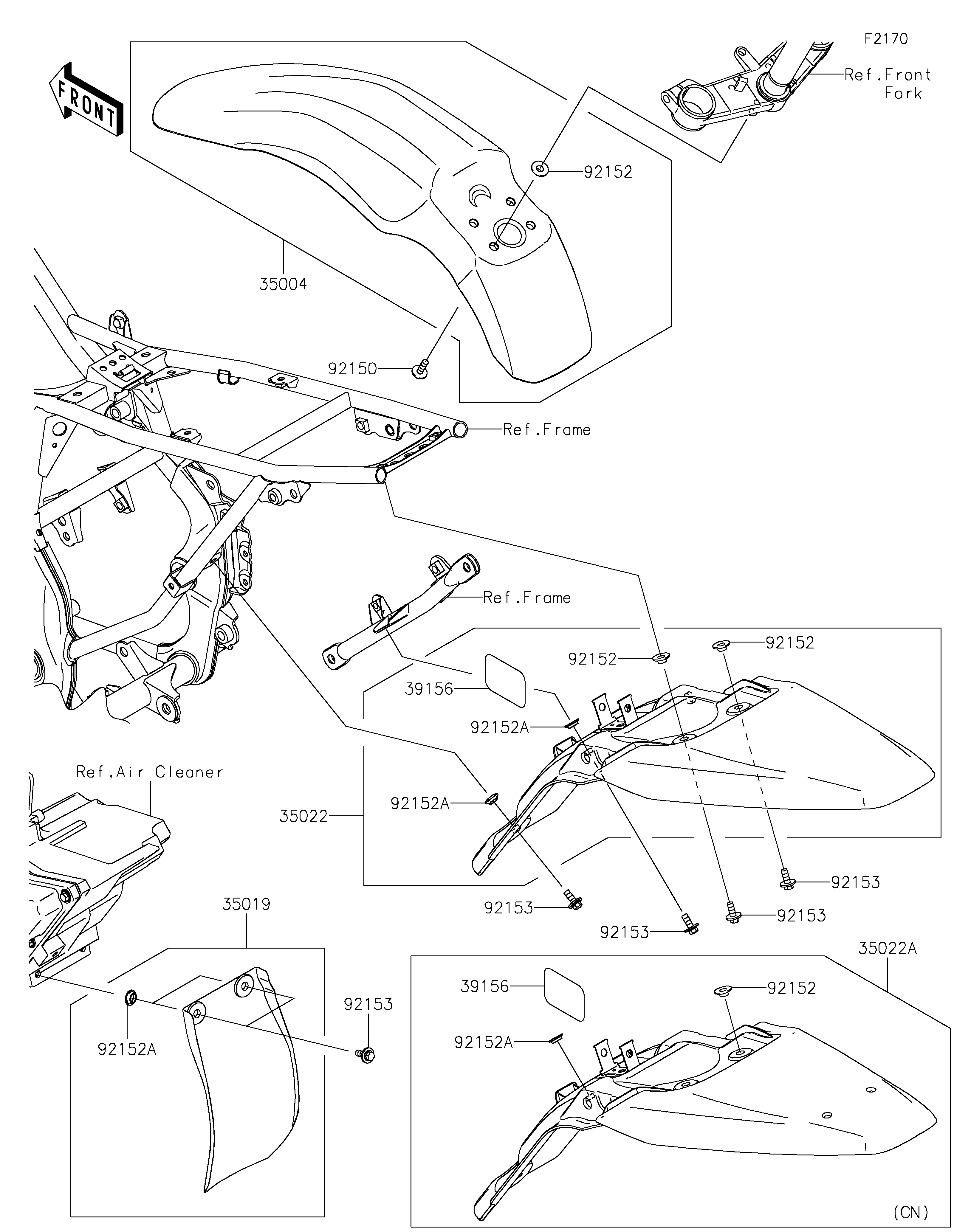

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FRONT,L.GREEN | 35004 | 35004-0088-290 | 1 | ||
| FLAP,RR FENDER,FR | 35019 | 35019-0630 | 1 | ||
| FENDER-COMP-REAR,L.GREEN | 35022 | 35022-0054-290 | 1 | US | |
| FENDER-COMP-REAR,L.GREEN | 35022A | 35022-0055-290 | 1 | CN | |
| PAD | 39156 | 39156-0453 | 1 | ||
| BOLT,FLANGED,6X20 | 92150 | 92150-1339 | 4 | ||
| COLLAR | 92152 | 92152-0427 | 6 | ||
| COLLAR,8.8X11.2X4 | 92152A | 92152-0909 | 4 | ||
| BOLT,6X16 | 92153 | 92153-0863 | 6 |
