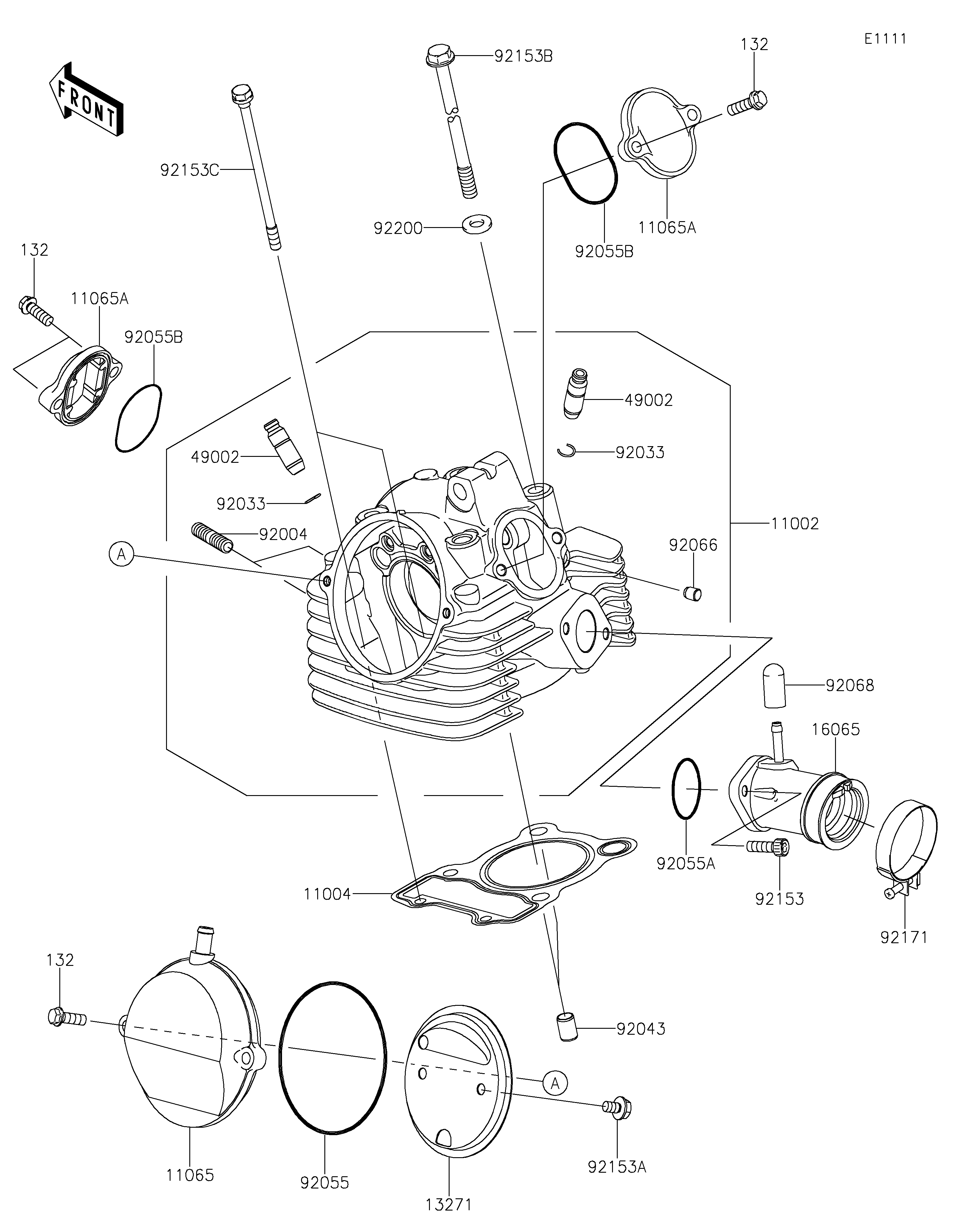

2019 KLX®140L - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11002
11004
11065
11065A
11065A
132
132
132
13271
16065
49002
49002
92004
92033
92033
92043
92055
92055A
92055B
92055B
92066
92068
92153
92153A
92153B
92153C
92171
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-ASSY-CYLINDER 11002 11002-0061 1
GASKET-HEAD 11004 11004-0065 1
CAP 11065 11065-0212 1
CAP,VALVE ADJUSTING 11065A 11065-0252 2
BOLT-FLANGED-SMALL,6X20 132 132BA0620 6
PLATE,BREATHER 13271 13271-1844 1
HOLDER-CARBURETOR 16065 16065-0054 1
GUIDE-VALVE 49002 49002-0019 2
STUD,8X22 92004 92004-1217 2
RING-SNAP 92033 92033-1247 2
PIN,8.2X10X14 92043 92043-1264 2
RING-O,86X1.9 92055 92055-0202 1
RING-O,32MM 92055A 92055-1256 1
RING-O,ADJUST CAP 92055B 92055-1655 2
PLUG,OIL LINE,7.2X8 92066 92066-1012 1
PLUG,12X25 92068 92068-006 1
BOLT,6X20 92153 92153-0481 2
BOLT,6X10 92153A 92153-1140 2
BOLT,8X201 92153B 92153-1141 4
BOLT,FLANGED,6X110 92153C 92153-1970 2
CLAMP 92171 92171-0691 1
WASHER,8.2X17X2.3 92200 92200-1631 4
