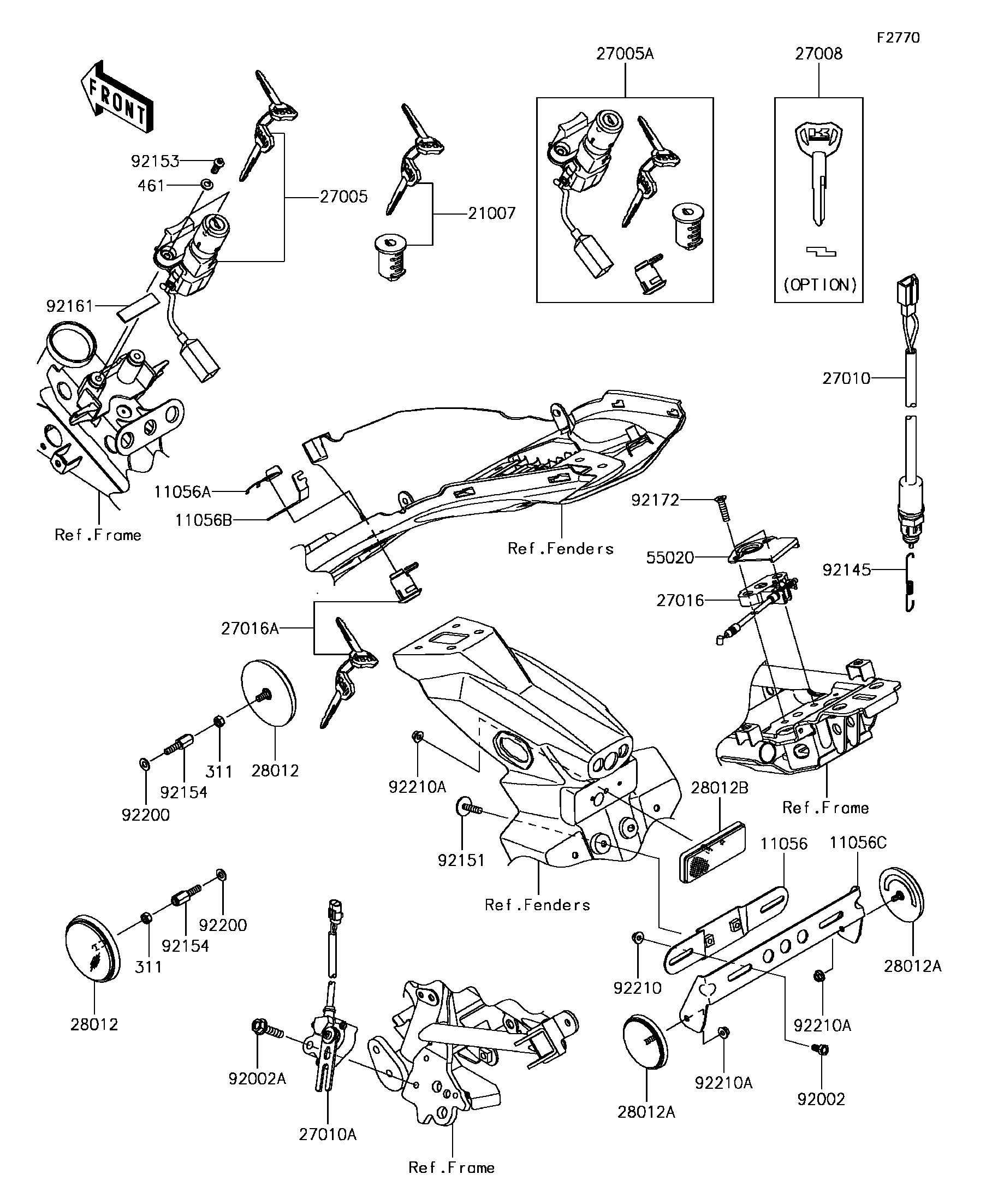

2018 Z125 PRO KRT EDITION - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
11056C
21007
27005
27005A
27008
27010
27010A
27016
27016A
28012
28012
28012A
28012A
28012B
311
311
461
55020
92002
92002A
92145
92151
92153
92154
92154
92161
92172
92200
92200
92210
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE PLATE 11056 11056-0139 1
BRACKET,CLASP 11056A 11056-0238 1
BRACKET,SEAT LOCK 11056B 11056-2119 1
BRACKET 11056C 11056-7906 1
ROTOR 21007 21007-5081 1
SWITCH-ASSY-IGNITION 27005 27005-0612 1
SWITCH-ASSY-IGNITION 27005A 27005-5158 1
KEY-LOCK,BLANK 27008 27008-0559 1 (OPTION)
SWITCH,RR BRAKE 27010 27010-0828 1
SWITCH,SIDE STAND 27010A 27010-0829 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0081 1
LOCK-ASSY 27016A 27016-5393 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
NUT-HEX,5MM 311 311AB0500 2
WASHER-SPRING,6MM 461 461DA0600 2
GUARD,SEAT LOCK 55020 55020-0554 1
BOLT,6X12 92002 92002-1132 2
BOLT,FLANGED,6X25 92002A 92002-1582 1
SPRING 92145 92145-1723 1
BOLT,6X25 92151 92151-1241 2
BOLT,TORX,6X16 92153 92153-0967 2
BOLT,6X20 92154 92154-2193 2
DAMPER 92161 92161-1359 1
SCREW,6X25 92172 92172-0965 2
WASHER,6.5X16X1.0 92200 92200-0796 2
NUT,FLANGED,6MM 92210 92210-1514 2
NUT,FLANGED,5MM 92210A 92210-1607 3
