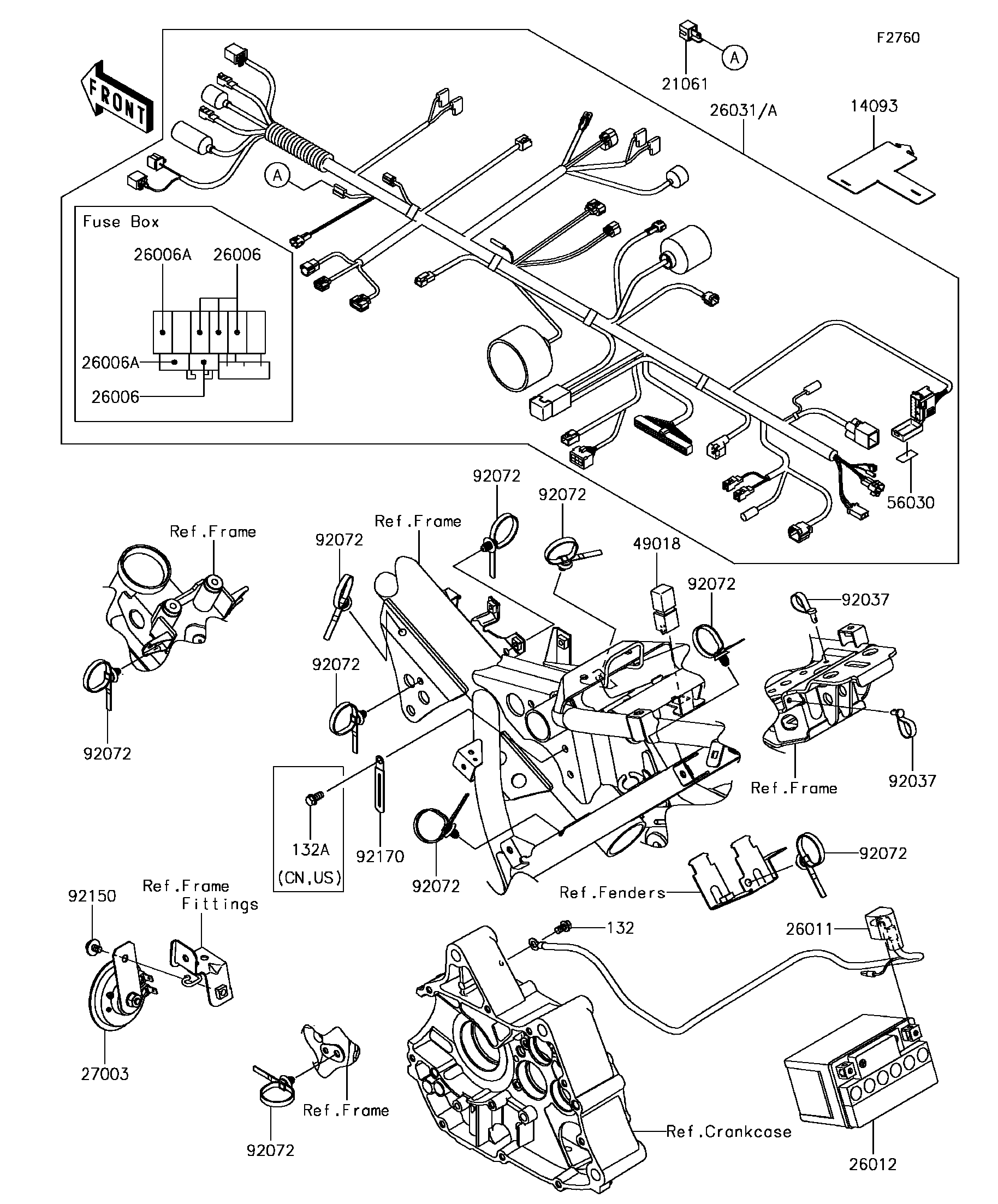

2018 Z125 PRO KRT EDITION - Chassis Electrical Equipment
132
14093
21061
26006
26006
26006A
26006A
26011
26012
26031A
27003
49018
56030
92037
92037
92072
92072
92072
92072
92072
92072
92072
92072
92072
92150
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BA0610 | 1 | ||
| COVER,CONNECTOR | 14093 | 14093-0486 | 1 | ||
| RECTIFIER | 21061 | 21061-1003 | 1 | ||
| FUSE,MINI BLADE,10A | 26006 | 26006-0031 | 4 | ||
| FUSE,MINI BLADE,20A | 26006A | 26006-0032 | 2 | ||
| WIRE-LEAD | 26011 | 26011-0920 | 1 | ||
| BATTERY,FTH4L-BS,12V 3AH | 26012 | 26012-0725 | 1 | ||
| HARNESS,MAIN | 26031A | 26031-1996 | 1 | CA | |
| HORN | 27003 | 27003-0120 | 1 | ||
| DIODE | 49018 | 49018-0005 | 1 | ||
| LABEL,FUSE BOX | 56030 | 56030-0983 | 1 | ||
| CLAMP,SPEED,L=58 | 92037 | 92037-1163 | 2 | ||
| BAND,OS170-FT7(BLACK) | 92072 | 92072-1414 | 9 | ||
| BOLT,6X14 | 92150 | 92150-1340 | 1 | ||
| CLAMP | 92170 | 92170-1514 | 1 | ||
| BOLT-FLANGED-SMALL,6X12 | 132A | 132BA0612 | 1 | US | |
| HARNESS,MAIN | 26031 | 26031-1995 | 1 | US |
| BOLT-FLANGED-SMALL,6X10 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CONNECTOR | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RECTIFIER | |
| REF # | 21061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,MINI BLADE,10A | |
| REF # | 26006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FUSE,MINI BLADE,20A | |
| REF # | 26006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BATTERY,FTH4L-BS,12V 3AH | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| HORN | |
| REF # | 27003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIODE | |
| REF # | 49018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,FUSE BOX | |
| REF # | 56030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,SPEED,L=58 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,OS170-FT7(BLACK) | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X12 | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
