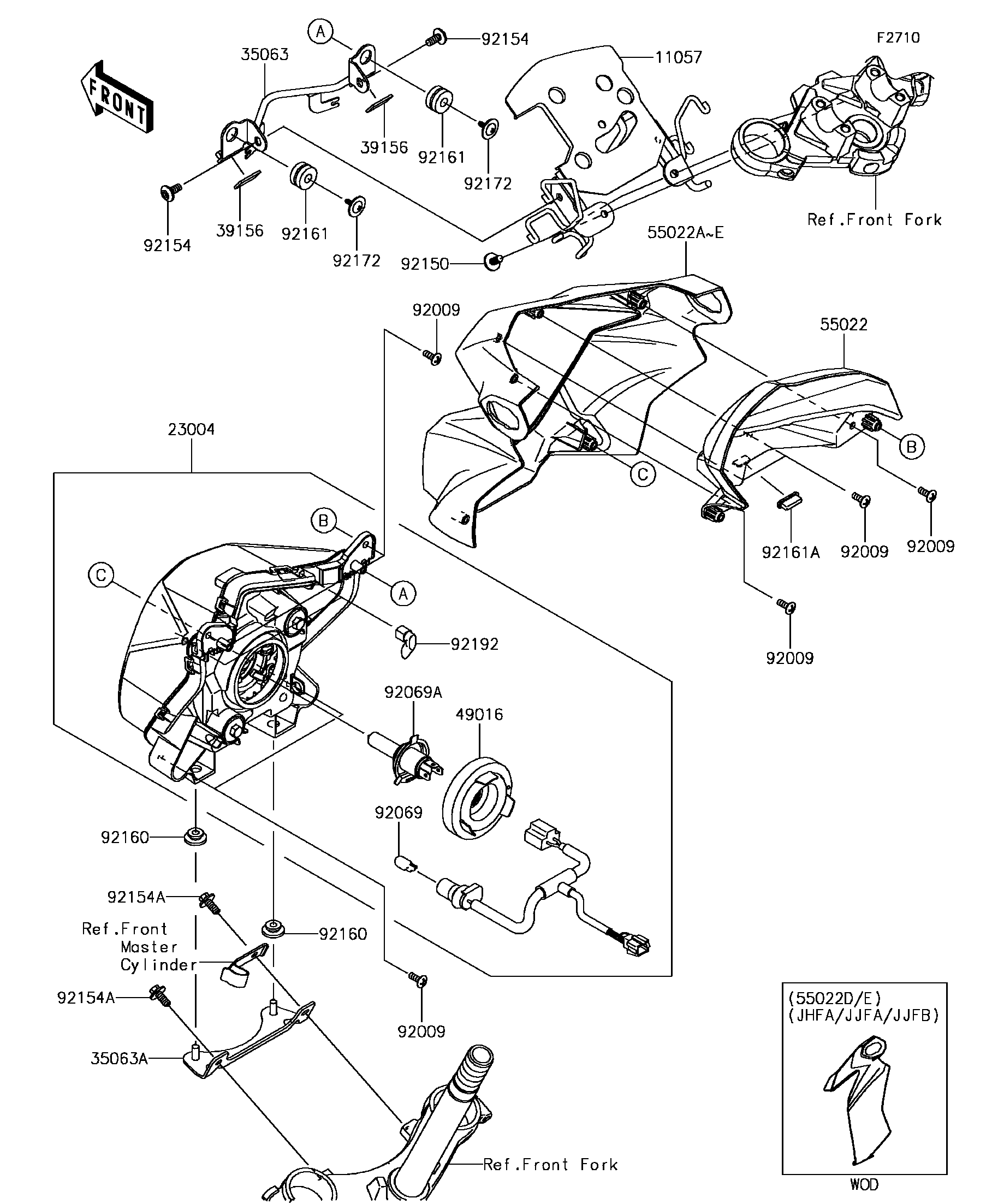

2018 Z125 PRO KRT EDITION - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
23004
35063
35063A
39156
39156
49016
55022
55022E
92009
92009
92009
92009
92009
92069
92069A
92150
92154
92154
92154A
92154A
92160
92160
92161
92161
92161A
92172
92172
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP 11057 11057-0608 1
LAMP-HEAD 23004 23004-0362 1
STAY 35063 35063-1334 1
STAY,HEAD LAMP 35063A 35063-1335 1
PAD,13X25X2 39156 39156-2137 2
COVER-SEAL 49016 49016-0627 1
COVER-HEAD LAMP,UPP 55022 55022-0317 1
COVER-HEAD LAMP,LWR,L.GRN+EBY 55022E 55022-0318-774 1
SCREW,TAPPING,5X14 92009 92009-1197 8
BULB,12V 5W 92069 92069-0059 1
BULB,12V 35/35W 92069A 92069-0091 1
BOLT,6X14 92150 92150-1340 2
BOLT,SOCKET,6X14 92154 92154-2161 2
BOLT,6X16 92154A 92154-2162 2
DAMPER 92160 92160-1613 2
DAMPER 92161 92161-0054 2
DAMPER 92161A 92161-1813 1
SCREW,TAPPING+PW,5X14 92172 92172-0477 2
TUBE,BREATHER 92192 92192-1528 2
