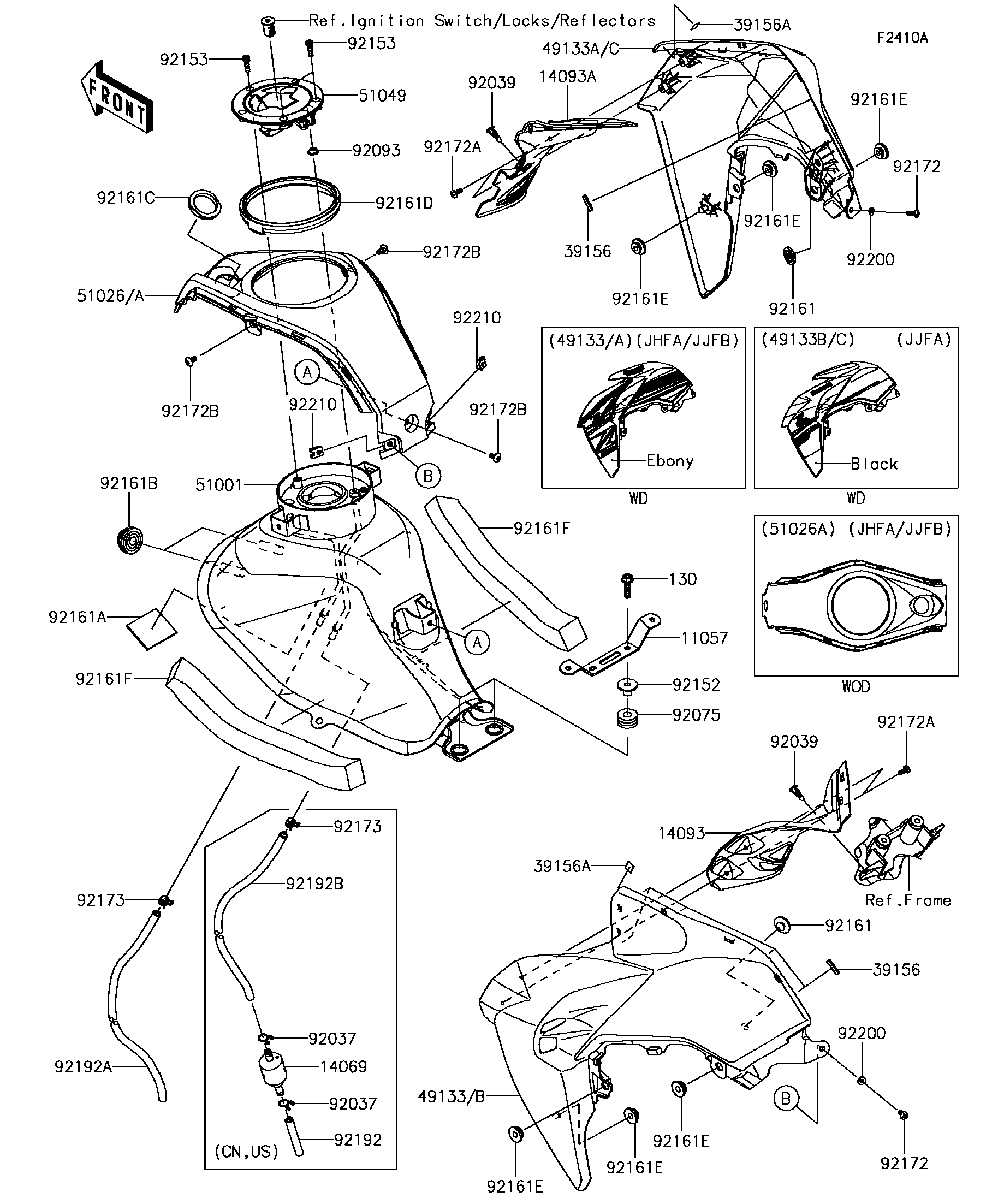

2018 Z125 PRO KRT EDITION - Fuel Tank(JHFA/JJFA/JJFB)
11057
11057
14093
14093
14093A
14093A
39156
39156
39156
39156
39156A
39156A
39156A
39156A
49133
49133
49133A
49133A
51001
51001
51026A
51026A
51049
51049
92039
92039
92039
92039
92075
92075
92093
92093
92152
92152
92153
92153
92153
92153
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161F
92161F
92161F
92161F
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92172B
92172B
92173
92173
92173
92173
130
130
92192A
92192A
92200
92200
92200
92200
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SIDE COVER | 11057 | 11057-0244 | 1 | ||
| COVER,INNER,LH | 14093 | 14093-0332 | 1 | ||
| COVER,INNER,RH | 14093A | 14093-0333 | 1 | ||
| PAD,5X20X2 | 39156 | 39156-2117 | 10 | ||
| PAD,10X10X0.2 | 39156A | 39156-2118 | 2 | ||
| SHROUD,LH,EBONY | 49133 | 49133-5257-H8 | 1 | ||
| SHROUD,RH,EBONY | 49133A | 49133-5258-H8 | 1 | ||
| TANK-COMP-FUEL | 51001 | 51001-0848 | 1 | ||
| COVER TANK,L.GREEN | 51026A | 51026-0012-777 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-0728 | 1 | ||
| RIVET | 92039 | 92039-0709 | 2 | ||
| DAMPER,10X24X12 | 92075 | 92075-1690 | 2 | ||
| SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | ||
| COLLAR | 92152 | 92152-0697 | 2 | ||
| BOLT,SOCKET,5X16 | 92153 | 92153-1616 | 3 | ||
| DAMPER,8X22X10 | 92161 | 92161-1685 | 2 | ||
| DAMPER,40X50X2 | 92161A | 92161-1757 | 1 | ||
| DAMPER,10X32X8 | 92161B | 92161-1791 | 2 | ||
| DAMPER | 92161C | 92161-1797 | 1 | ||
| DAMPER | 92161D | 92161-1798 | 1 | ||
| DAMPER | 92161E | 92161-1810 | 6 | ||
| DAMPER | 92161F | 92161-1820 | 2 | ||
| SCREW,4X12 | 92172 | 92172-0715 | 2 | ||
| SCREW,4X12 | 92172A | 92172-0959 | 4 | ||
| SCREW,5X10 | 92172B | 92172-1090 | 3 | ||
| CLAMP | 92173 | 92173-1143 | 1 | CA | |
| BOLT-FLANGED,6X25 | 130 | 130BA0625 | 2 | ||
| TUBE,6X9X630 | 92192A | 92192-1647 | 1 | ||
| WASHER,4X9.5X1 | 92200 | 92200-0546 | 2 | ||
| NUT,4MM | 92210 | 92210-0620 | 2 | ||
| BREATHER,FUEL TANK | 14069 | 14069-1004 | 1 | US | |
| CLAMP | 92037 | 92037-1712 | 2 | US | |
| CLAMP | 92173 | 92173-1143 | 2 | US | |
| TUBE,6X9X60 | 92192 | 92192-1489 | 1 | US | |
| TUBE,6X9X505 | 92192B | 92192-1678 | 1 | US |
