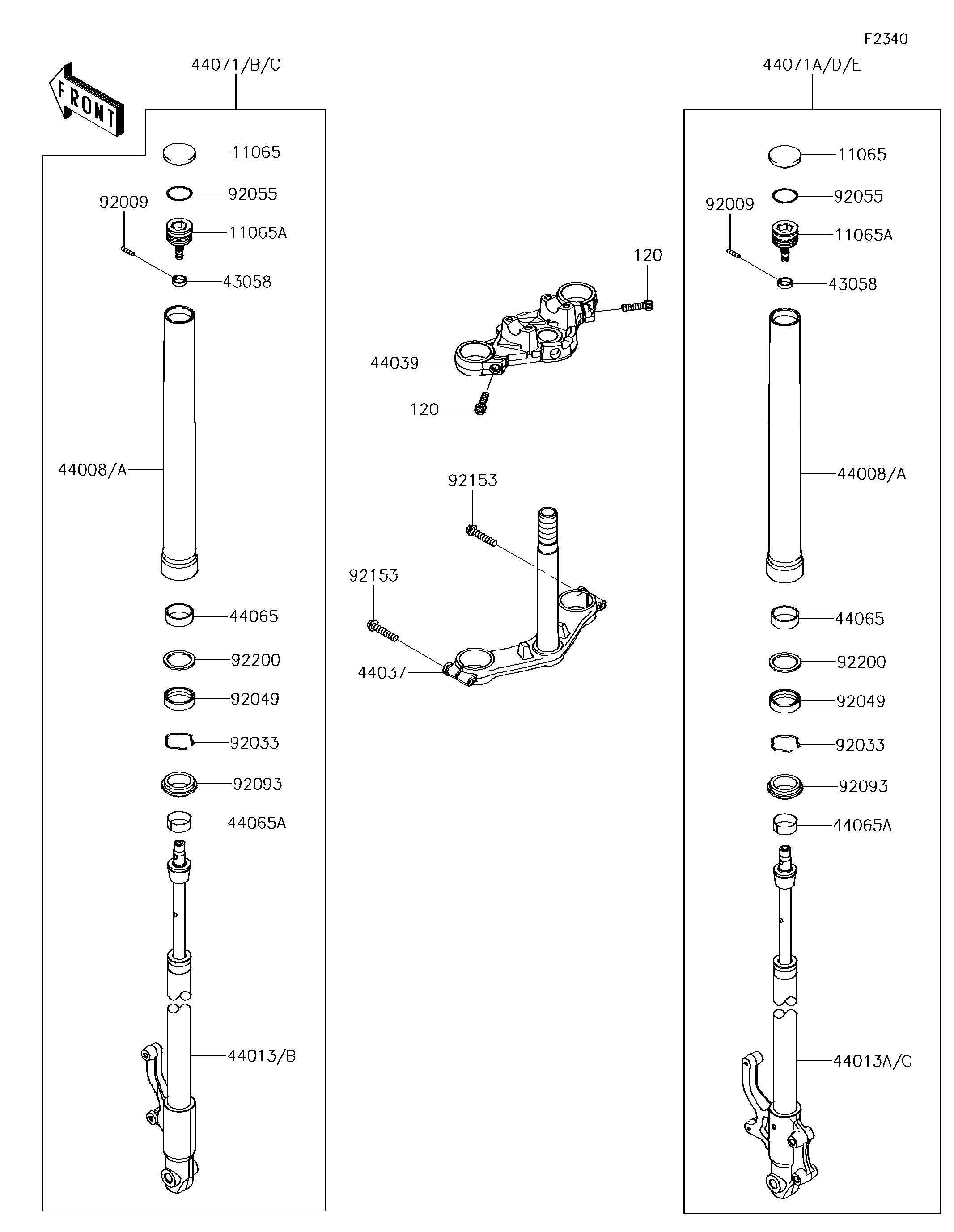

2018 Z125 PRO KRT EDITION - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065A
11065A
120
120
43058
43058
44008A
44008A
44013B
44013C
44037
44039
44065
44065
44065A
44065A
44071C
44071E
92009
92009
92033
92033
92049
92049
92055
92055
92093
92093
92153
92153
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0005 2
CAP 11065A 11065-0926 2
BOLT-SOCKET,8X30 120 120CB0830 2
RING 43058 43058-1072 2
PIPE-FORK OUTER,C.GOLD 44008A 44008-0081-58C 2
PIPE-FORK INNER,LH,F.S.BLACK 44013B 44013-0306-18R 1
PIPE-FORK INNER,RH,F.S.BLACK 44013C 44013-0307-18R 1
HOLDER-FORK UNDER 44037 44037-0163 1
HOLDER-FORK UPPER,F.S.BLACK 44039 44039-0165-18R 1
BUSHING-FRONT FORK 44065 44065-1099 2
BUSHING-FRONT FORK 44065A 44065-1101 2
DAMPER-ASSY,FORK,LH,C.GOLD 44071C 44071-1259-58C 1
DAMPER-ASSY,FORK,RH,C.GOLD 44071E 44071-1260-58C 1
SCREW 92009 92009-1625 2
RING-SNAP 92033 92033-1038 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-0003 2
RING-O,FORK TOP CAP 92055 92055-1051 2
SEAL,FORK OUTER TUBE 92093 92093-0001 2
BOLT,8X40 92153 92153-0020 2
WASHER 92200 92200-1061 2
