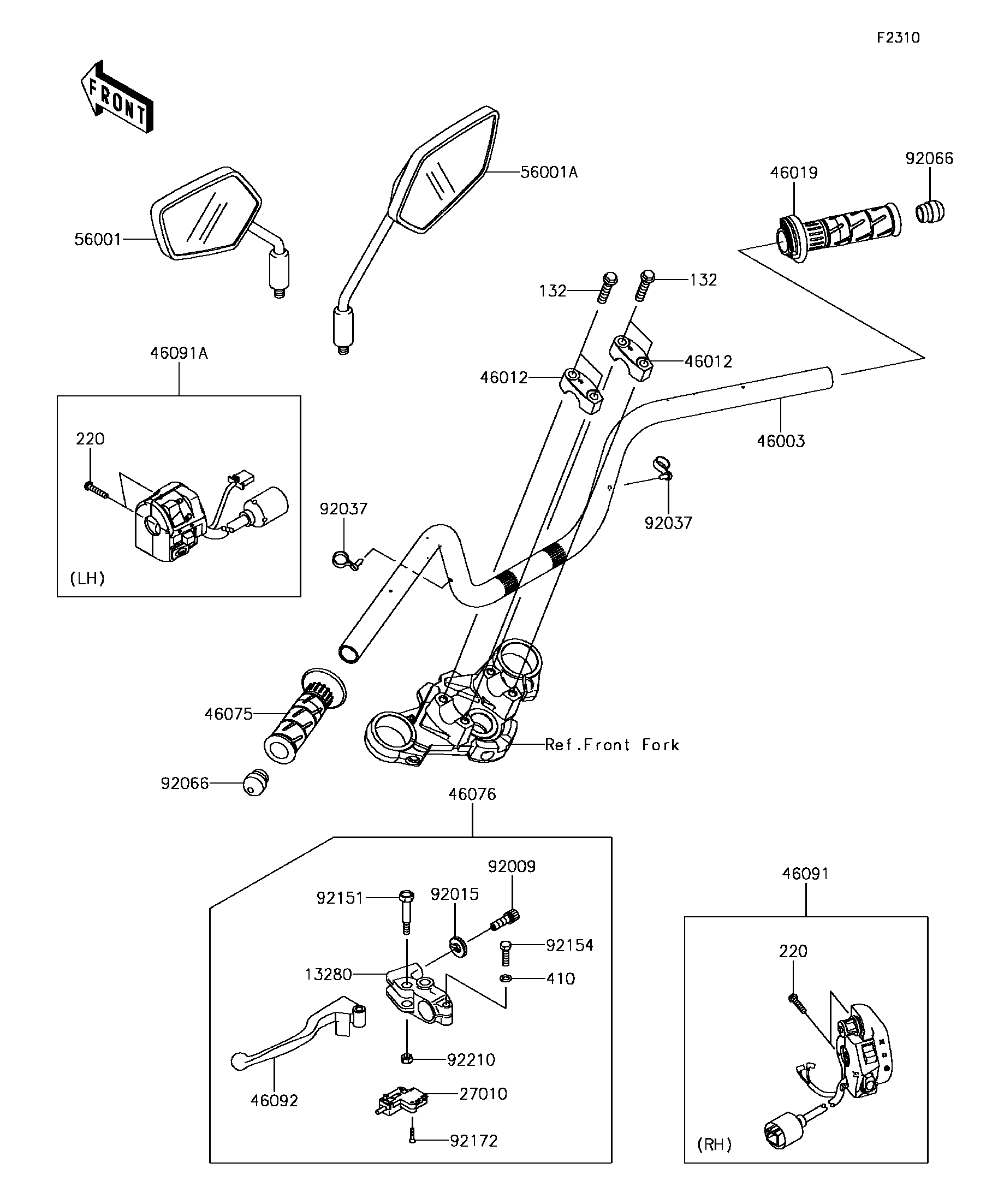

2018 Z125 PRO KRT EDITION - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
132
132
13280
220
220
27010
410
46003
46012
46012
46019
46075
46076
46091
46091A
46092
56001
56001A
92009
92015
92037
92037
92066
92066
92151
92154
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X35 132 132E0835 4
HOLDER,CLUTCH LEVER 13280 13280-0105 1
SCREW-PAN-CROS,5X25 220 220AB0525 4
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
WASHER-PLAIN-SMALL,6MM 410 410AB0600 1
HANDLE,F.S.BLACK 46003 46003-0655-18R 1
HOLDER-HANDLE,UPP,F.S.BLACK 46012 46012-0101-18R 2
GRIP-ASSY,THROTTLE 46019 46019-0047 1
GRIP 46075 46075-0606 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0116 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0318 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0319 1
LEVER-GRIP,CLUTCH 46092 46092-0567 1
MIRROR-ASSY,LH 56001 56001-0312 1
MIRROR-ASSY,RH 56001A 56001-0313 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015 92015-1197 1
CLAMP,SPEED,L=58 92037 92037-1163 2
PLUG 92066 92066-0825 2
BOLT,LEVER SET 92151 92151-1986 1
BOLT,UPSET,6X22 92154 92154-1422 1
SCREW-CSK-CROS,3X16 92172 92172-1187 2
NUT,LOCK,6MM 92210 92210-1551 1
