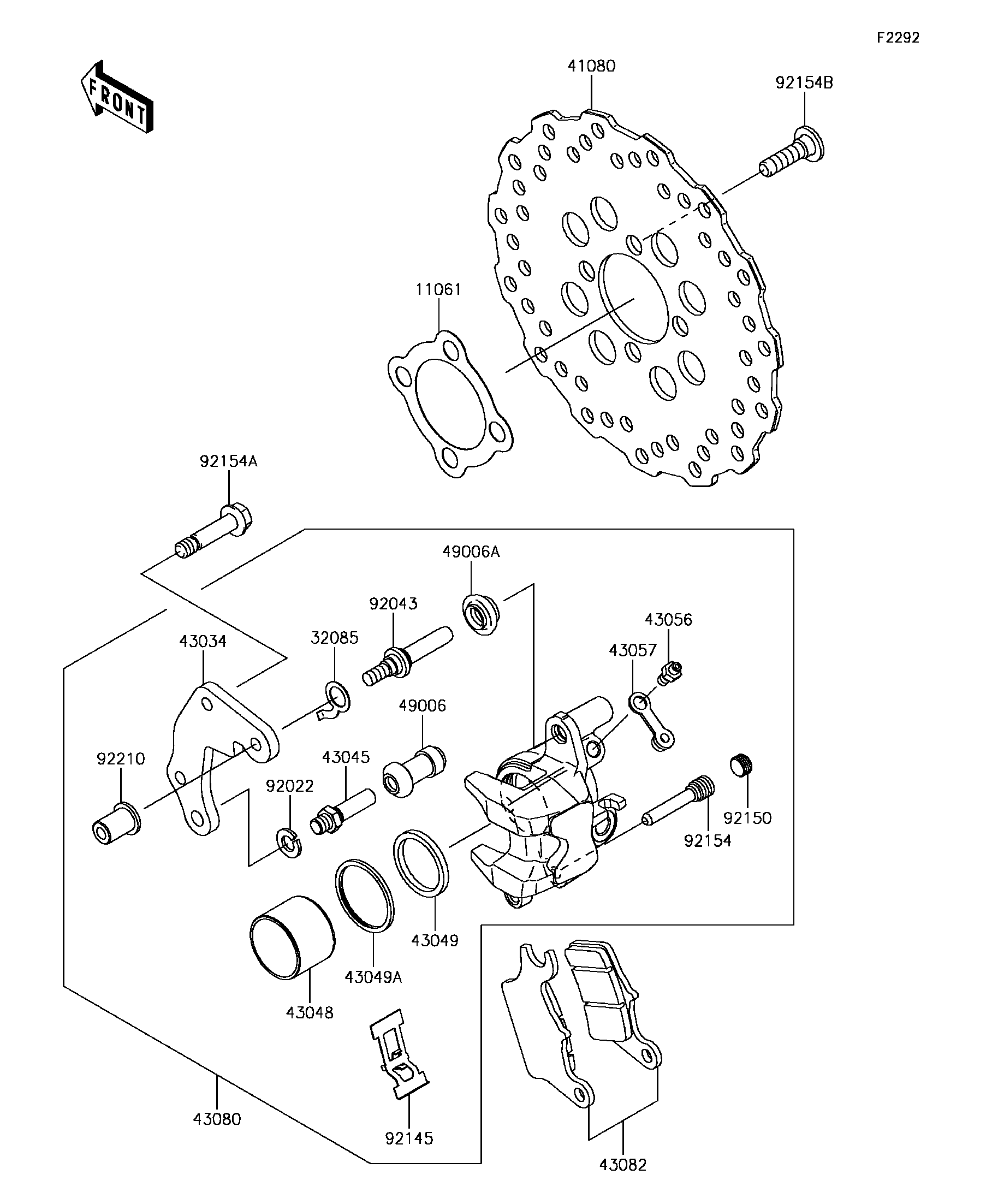

2018 Z125 PRO KRT EDITION - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
11061
32085
41080
43034
43045
43048
43049
43049A
43056
43057
43080
43082
49006
49006A
92022
92043
92145
92150
92154
92154A
92154B
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,BRAKE DISC 11061 11061-0006 1
STOPPER 32085 32085-0737 1
DISC,FR 41080 41080-0645 1
HOLDER-BRAKE 43034 43034-0119 1
SHAFT-CALIPER 43045 43045-1010 1
PISTON-CALIPER 43048 43048-0022 1
PACKING,PISTON SEAL 43049 43049-1023 1
PACKING,PISTON SEAL 43049A 43049-1024 1
BREATHER-BRAKE 43056 43056-0004 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,FR,BLACK 43080 43080-0159-DJ 1
PAD-ASSY-BRAKE 43082 43082-0134 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
WASHER,WAVE 92022 92022-1373 1
PIN,8X17 92043 92043-0757 1
SPRING 92145 92145-0939 1
BOLT,PLUG 92150 92150-1692 1
BOLT 92154 92154-1120 1
BOLT,FLANGED,8X36 92154A 92154-1260 2
BOLT,SOCKET,8X30 92154B 92154-1865 4
NUT 92210 92210-0615 1
