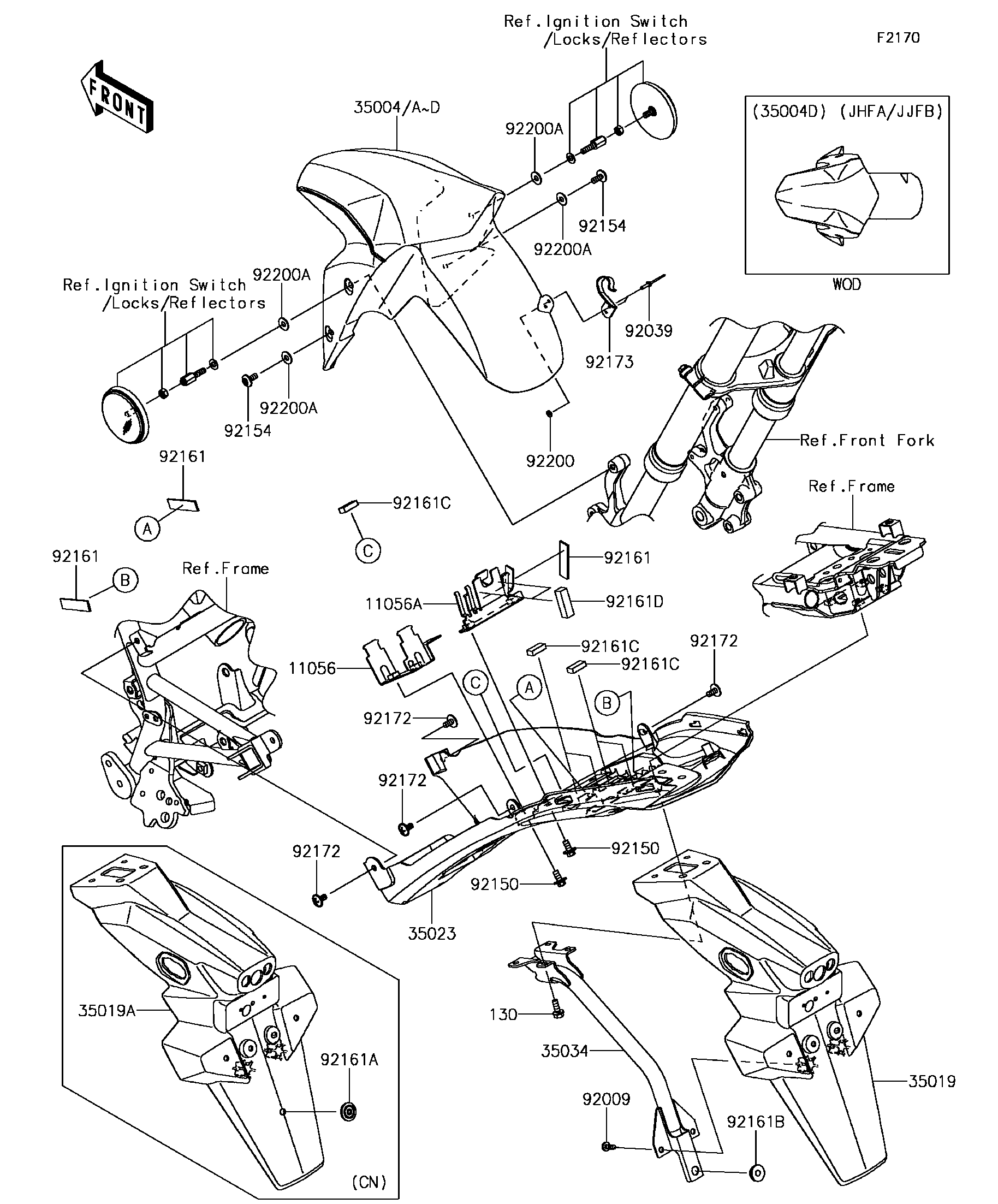

2018 Z125 PRO KRT EDITION - Fenders

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
130
35004D
35019
35023
35034
92009
92039
92150
92150
92154
92154
92161
92161
92161
92161B
92161C
92161C
92161C
92161D
92172
92172
92172
92172
92173
92200
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-7604 1
BRACKET 11056A 11056-7605 1
BOLT-FLANGED,6X16 130 130BA0616 4
FENDER-FRONT,L.GREEN 35004D 35004-0352-777 1
FLAP 35019 35019-0605 1 _________________________________________CA,US
FENDER-REAR 35023 35023-0410 1
REINFORCE 35034 35034-0597 1
SCREW,6X14 92009 92009-3845 2
RIVET 92039 92039-1231 2
BOLT,6X14 92150 92150-1340 4
BOLT,SOCKET,6X14 92154 92154-2161 2
DAMPER 92161 92161-1359 3
DAMPER 92161B 92161-1810 1
DAMPER 92161C 92161-1842 5
DAMPER,10X35X11 92161D 92161-1924 2
SCREW,6X12 92172 92172-0394 4
CLAMP 92173 92173-1485 1
WASHER,3.5X8X1 92200 92200-1251 2
WASHER,6.5X16X1 92200A 92200-1784 4
