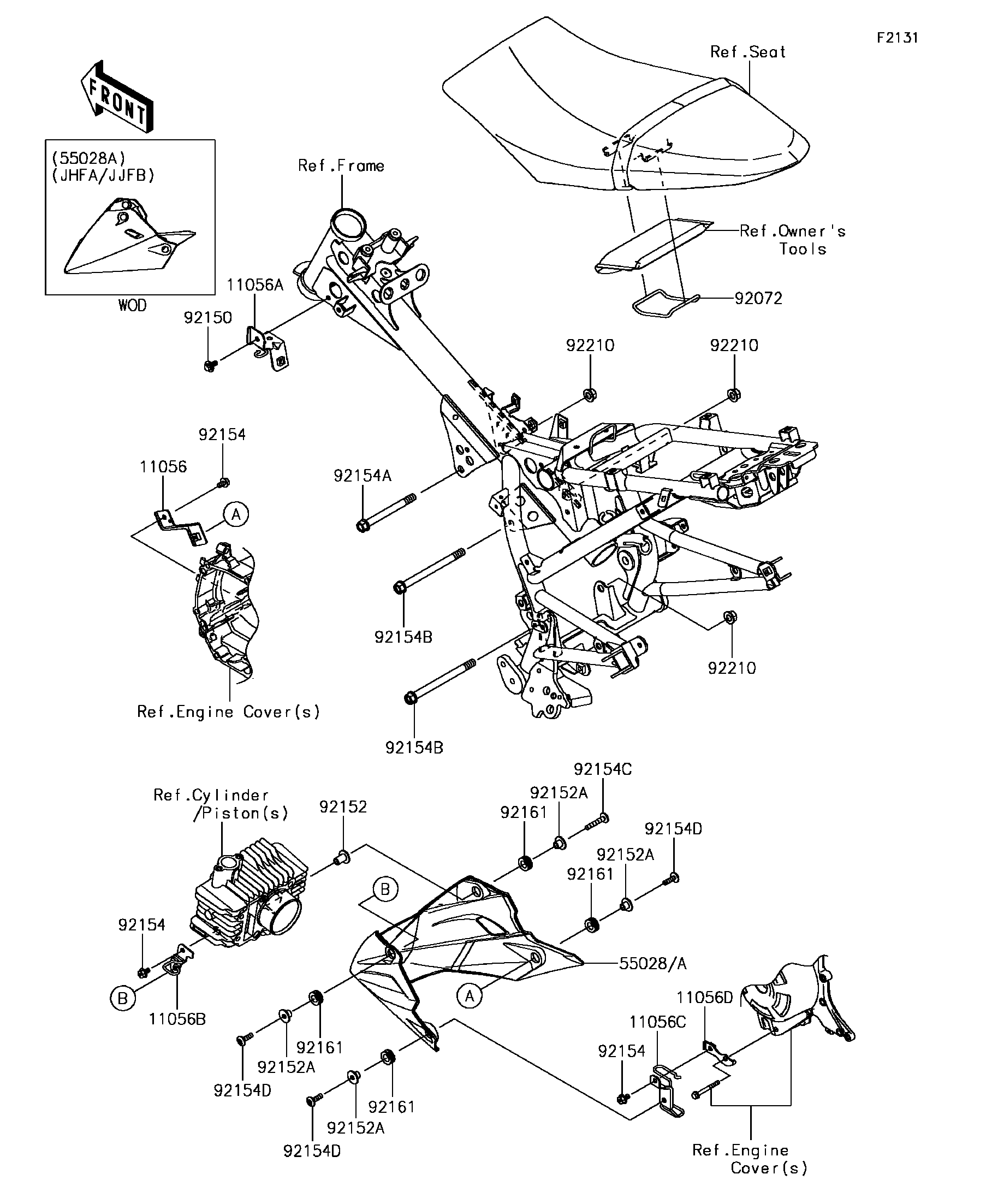

2018 Z125 PRO KRT EDITION - Frame Fittings
11056
11056A
11056B
11056C
11056D
55028A
92072
92150
92152
92152A
92152A
92152A
92152A
92154
92154
92154
92154A
92154B
92154B
92154C
92154D
92154D
92154D
92161
92161
92161
92161
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,RR,RH | 11056 | 11056-7592 | 1 | ||
| BRACKET | 11056A | 11056-7593 | 1 | ||
| BRACKET,FR,LH | 11056B | 11056-7607 | 1 | ||
| BRACKET,RR,LH | 11056C | 11056-7608 | 1 | ||
| BRACKET,GENERATOR COVER | 11056D | 11056-7718 | 1 | ||
| COWLING,LWR,L.GREEN+EBY | 55028A | 55028-0562-774 | 1 | ||
| BAND,TOOL | 92072 | 92072-0781 | 1 | ||
| BOLT,6X14 | 92150 | 92150-1340 | 1 | ||
| COLLAR,6.5X10X18 | 92152 | 92152-1560 | 1 | ||
| COLLAR,6.5X10X10.4 | 92152A | 92152-1688 | 4 | ||
| BOLT,FLANGED,6X10 | 92154 | 92154-1256 | 3 | ||
| BOLT,FLANGED,10X100 | 92154A | 92154-1257 | 1 | ||
| BOLT,FLANGED,10X125 | 92154B | 92154-1258 | 2 | ||
| BOLT,SOCKET,6X35 | 92154C | 92154-2121 | 1 | ||
| BOLT,SOCKET,6X20 | 92154D | 92154-2122 | 3 | ||
| DAMPER,10X20X8 | 92161 | 92161-1828 | 4 | ||
| NUT,FLANGED,10MM | 92210 | 92210-0869 | 3 |
