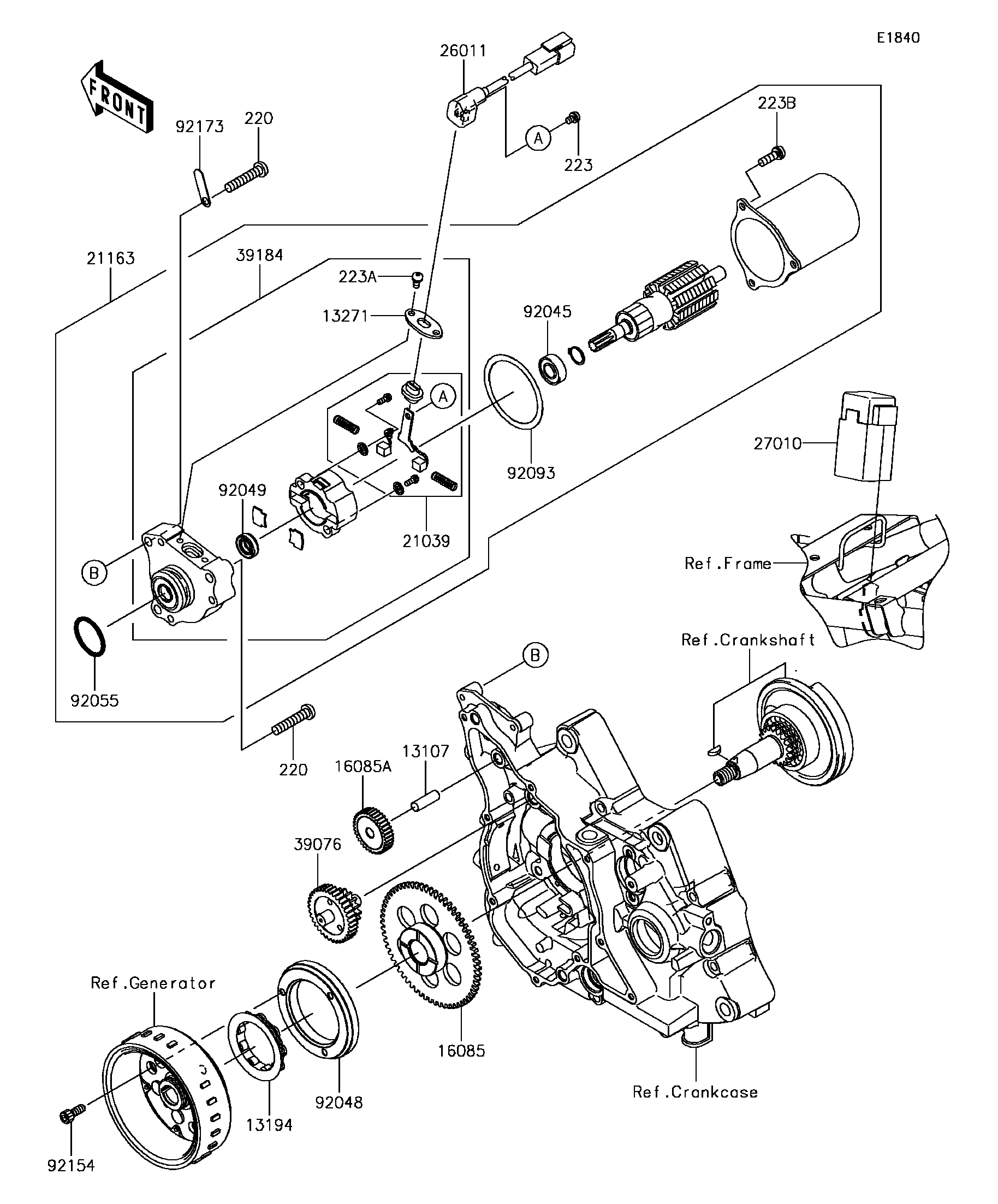

2018 Z125 PRO KRT EDITION - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13107
13194
13271
16085
16085A
21039
21163
220
220
223
223A
223B
26011
27010
39076
39184
92045
92048
92049
92055
92093
92154
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,8X25 13107 13107-1142 1
CLUTCH-ONEWAY 13194 13194-0019 1
PLATE 13271 13271-0674 1
GEAR,62T 16085 16085-0659 1
GEAR,IDLE,45T 16085A 16085-0662 1
BRUSH,STARTER MOTOR(SET) 21039 21039-1067 1
STARTER-ELECTRIC 21163 21163-0049 1
SCREW-PAN-CROS,6X30 220 220AD0630 3
SCREW-PAN-WS-CROS,4X6 223 223AA0406 1
SCREW-PAN-WS-CROS,4X8 223A 223AA0408 2
SCREW-PAN-WS-CROS,5X16 223B 223AA0516 3
WIRE-LEAD 26011 26011-0055 1
SWITCH 27010 27010-0085 1
LIMITER 39076 39076-0022 1
BRACKET-ASSY 39184 39184-0014 1
BEARING-BALL,STARTER MOTOR 92045 92045-1349 1
RACE 92048 92048-0023 1
SEAL-OIL,STARTER MOTOR 92049 92049-1465 1
RING-O 92055 92055-1276 1
SEAL,STARTER MOTOR 92093 92093-1079 1
BOLT,SOCKET,6X16 92154 92154-0235 3
CLAMP 92173 92173-1585 1
