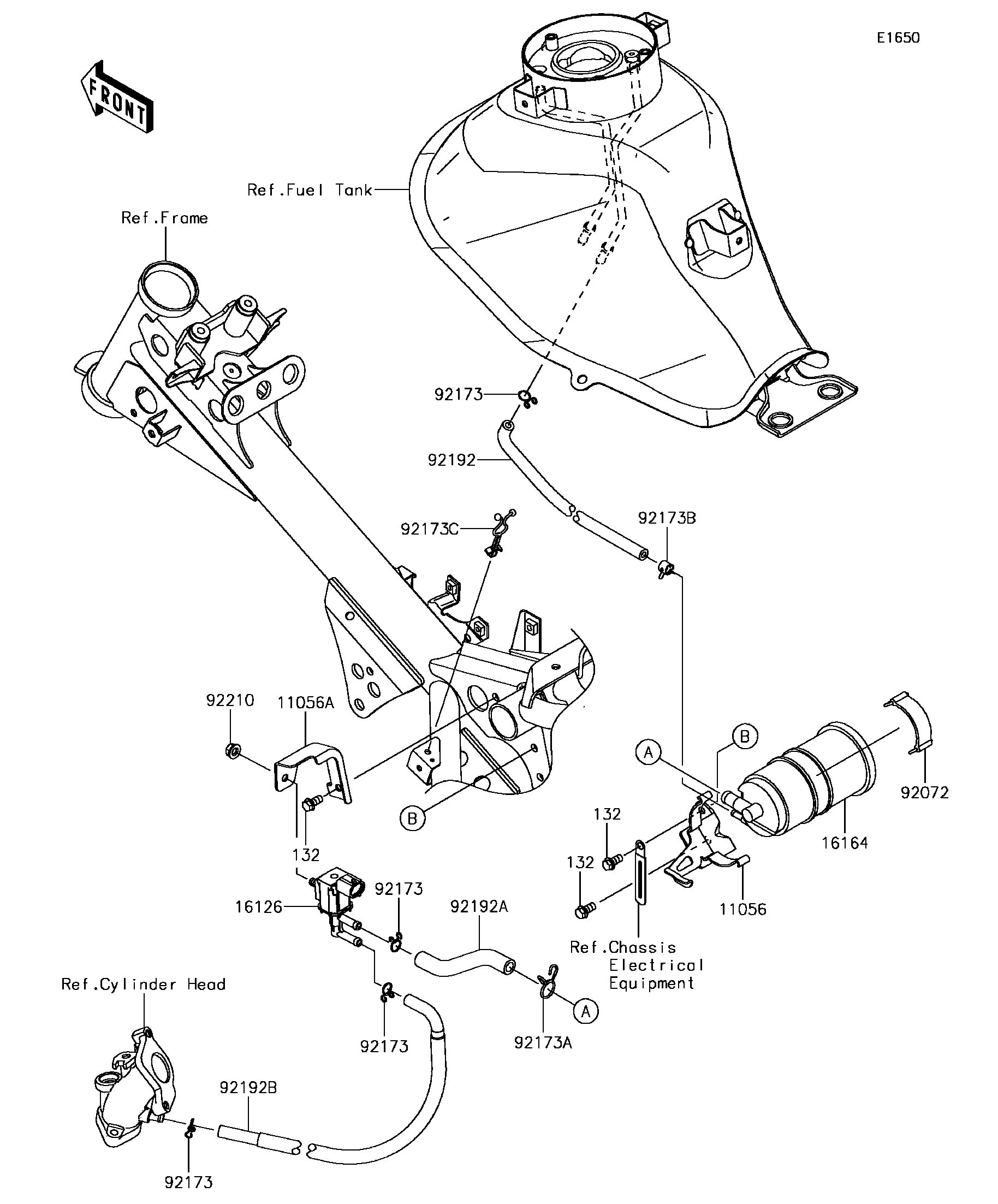

2018 Z125 PRO KRT EDITION - Fuel Evaporative System(CA)
11056
11056A
132
132
132
16126
16164
92072
92173
92173
92173
92173
92173A
92173B
92173C
92192
92192A
92192B
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CANISTER | 11056 | 11056-7523 | 1 | CA | |
| BRACKET,VALVE | 11056A | 11056-7743 | 1 | CA | |
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 3 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0704 | 1 | CA | |
| BAND,L=50 | 92072 | 92072-1419 | 1 | CA | |
| CLAMP | 92173 | 92173-0050 | 4 | CA | |
| CLAMP,14MM | 92173A | 92173-1015 | 1 | CA | |
| CLAMP | 92173B | 92173-1143 | 1 | CA | |
| CLAMP | 92173C | 92173-1616 | 1 | CA | |
| TUBE,TANK-CANISTER | 92192 | 92192-1484 | 1 | CA | |
| TUBE,CANISTER-VALVE | 92192A | 92192-1531 | 1 | CA | |
| TUBE,VALVE-PIPE INTAKE | 92192B | 92192-1747 | 1 | CA | |
| NUT,FLANGED,6MM | 92210 | 92210-1514 | 1 | CA |
| BRACKET,CANISTER | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BRACKET,VALVE | |
| REF # | 11056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X12 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CA |
| REMARKS | |
| VALVE,SOLENOID | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=50 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,14MM | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92173B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92173C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-CANISTER | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CANISTER-VALVE | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,VALVE-PIPE INTAKE | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
