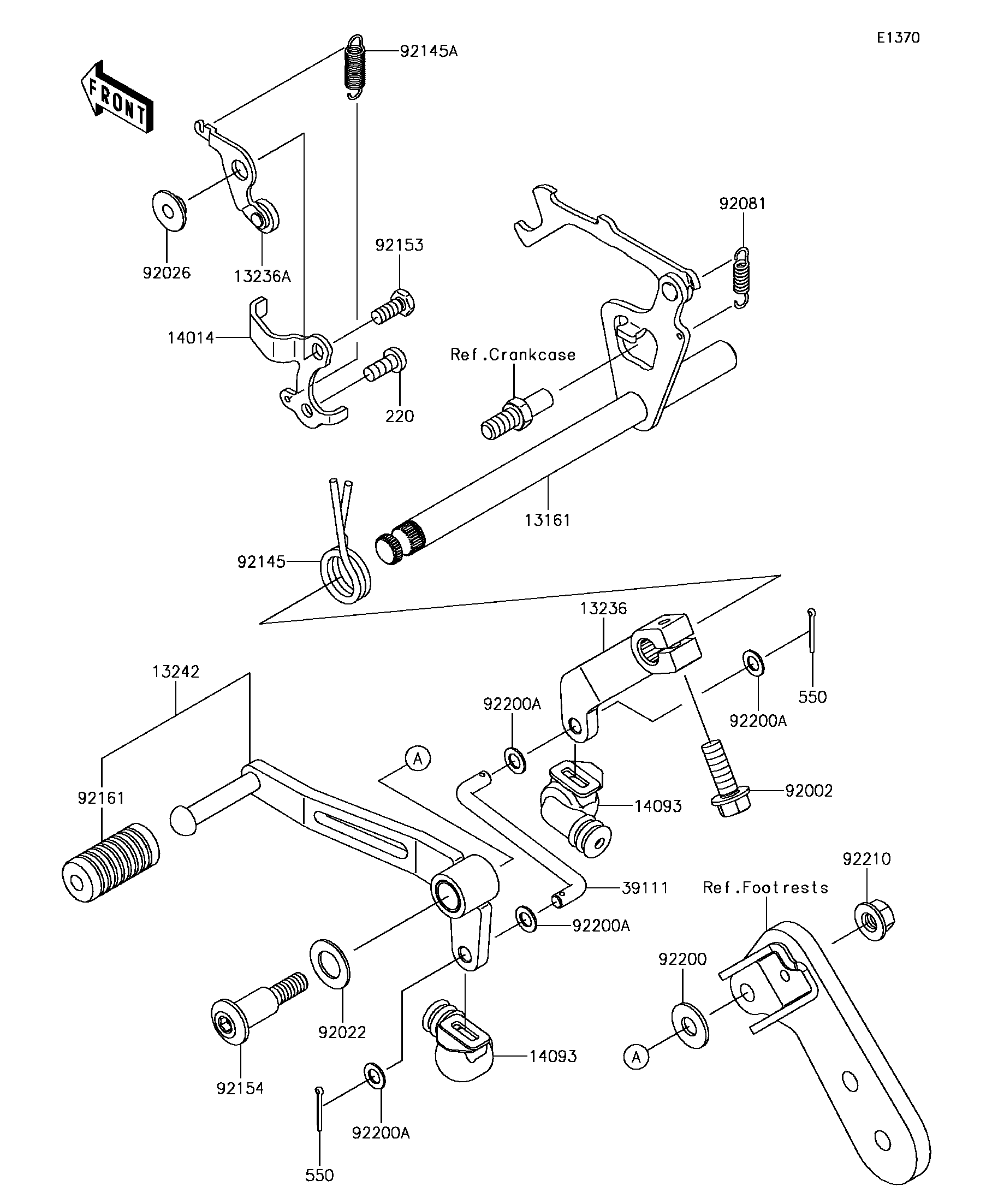

2018 Z125 PRO KRT EDITION - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
13161
13236
13236A
13242
14014
14093
14093
220
39111
550
550
92002
92022
92026
92081
92145
92145A
92153
92154
92161
92200
92200A
92200A
92200A
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SHAFT 13161 13161-0575 1
LEVER-COMP 13236 13236-0766 1
LEVER-COMP,POSITION 13236A 13236-1256 1
LEVER-ASSY-CHANGE,PEDAL 13242 13242-0126 1
PLATE-POSITION 14014 14014-0558 1
COVER 14093 14093-0321 2
SCREW-PAN-CROS,6X14 220 220AA0614 1
ROD-TIE 39111 39111-0340 1
PIN-COTTER,2.0X15 550 550AA2015 2
BOLT,6X20 92002 92002-1237 1
WASHER,12.5X22X1.2 92022 92022-072 1
SPACER 92026 92026-1217 1
SPRING,CHANGE LEVER 92081 92081-076 1
SPRING,CHANGE SHAFT RETURN 92145 92145-0984 1
SPRING,CHANGE LEVER 92145A 92145-0986 1
BOLT,6X14 92153 92153-0571 1
BOLT 92154 92154-1305 1
DAMPER,CHANGE PEDAL 92161 92161-1357 1
WASHER,8.5X20X1.6 92200 92200-0490 1
WASHER,6.3X15X1.6 92200A 92200-1821 4
NUT,FLANGED,8MM 92210 92210-1376 1
