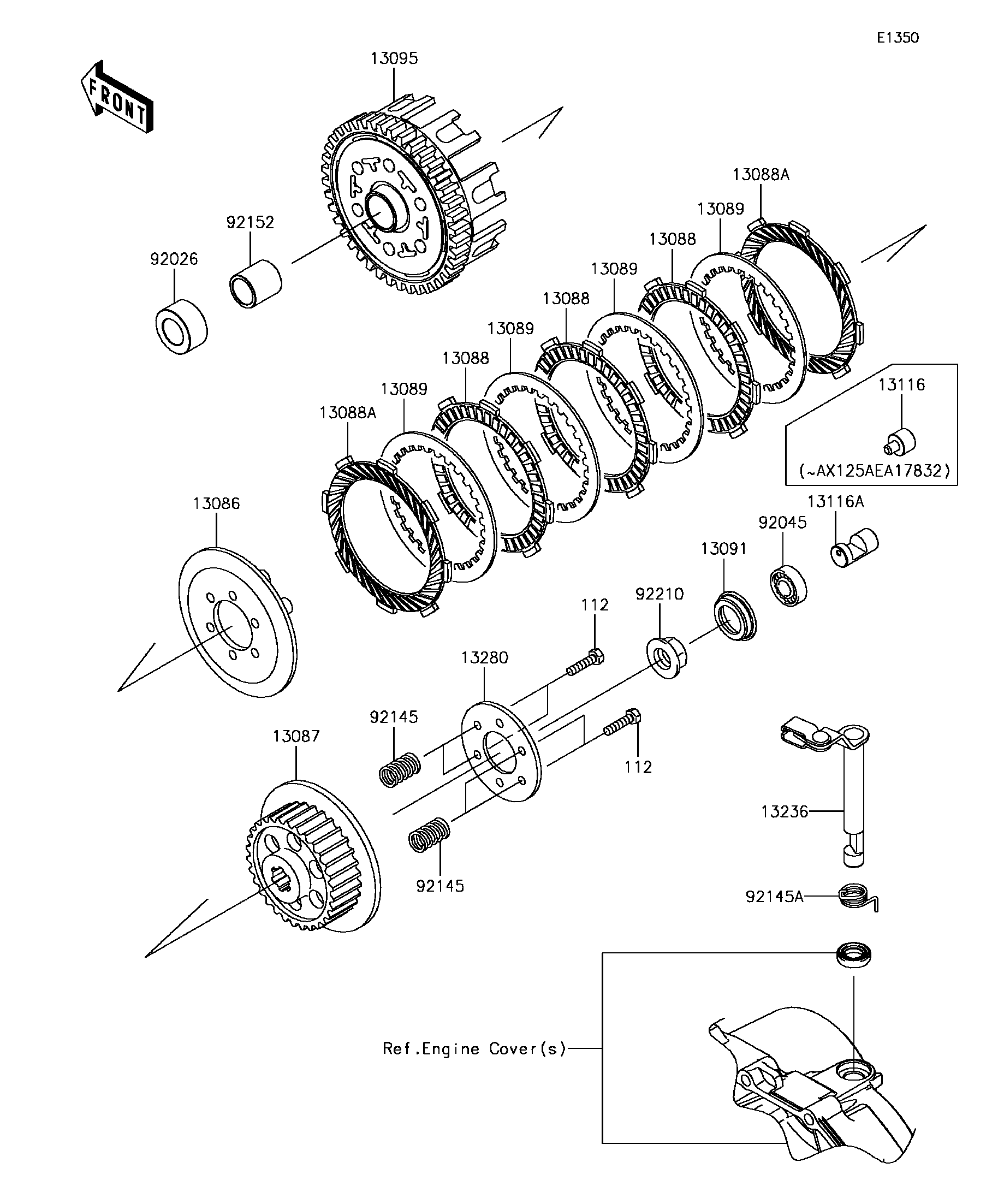

Parts Diagrams |
112
112
13086
13087
13088
13088
13088
13088A
13088A
13089
13089
13089
13089
13091
13095
13116A
13236
13280
92026
92045
92145
92145
92145A
92152
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,5X20 | 112 | 112BA0520 | 6 | ||
| WHEEL-CLUTCH | 13086 | 13086-1065 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1151 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-0048 | 3 | ||
| PLATE-FRICTION | 13088A | 13088-1142 | 2 | ||
| PLATE-CLUTCH | 13089 | 13089-1087 | 4 | ||
| HOLDER | 13091 | 13091-1787 | 1 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1403 | 1 | ||
| ROD-PUSH | 13116A | 13116-0731 | 1 | ( AX125AEA17833 - ) | |
| LEVER-COMP,CLUTCH,RELEASE | 13236 | 13236-0787 | 1 | ||
| HOLDER,CLUTCH | 13280 | 13280-0370 | 1 | ||
| SPACER | 92026 | 92026-1605 | 1 | ||
| BEARING-BALL,#628 | 92045 | 92045-1123 | 1 | ||
| SPRING,CLUTCH HUB | 92145 | 92145-1456 | 6 | ||
| SPRING | 92145A | 92145-1582 | 1 | ||
| COLLAR,12X22X22.7 | 92152 | 92152-0929 | 1 | ||
| NUT,14MM | 92210 | 92210-1374 | 1 |
| BOLT-UPSET,5X20 | |
| REF # | 112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WHEEL-CLUTCH | |
| REF # | 13086 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB-CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-COMP-CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-PUSH | |
| REF # | 13116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( AX125AEA17833 - ) |
| LEVER-COMP,CLUTCH,RELEASE | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#628 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH HUB | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,12X22X22.7 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
