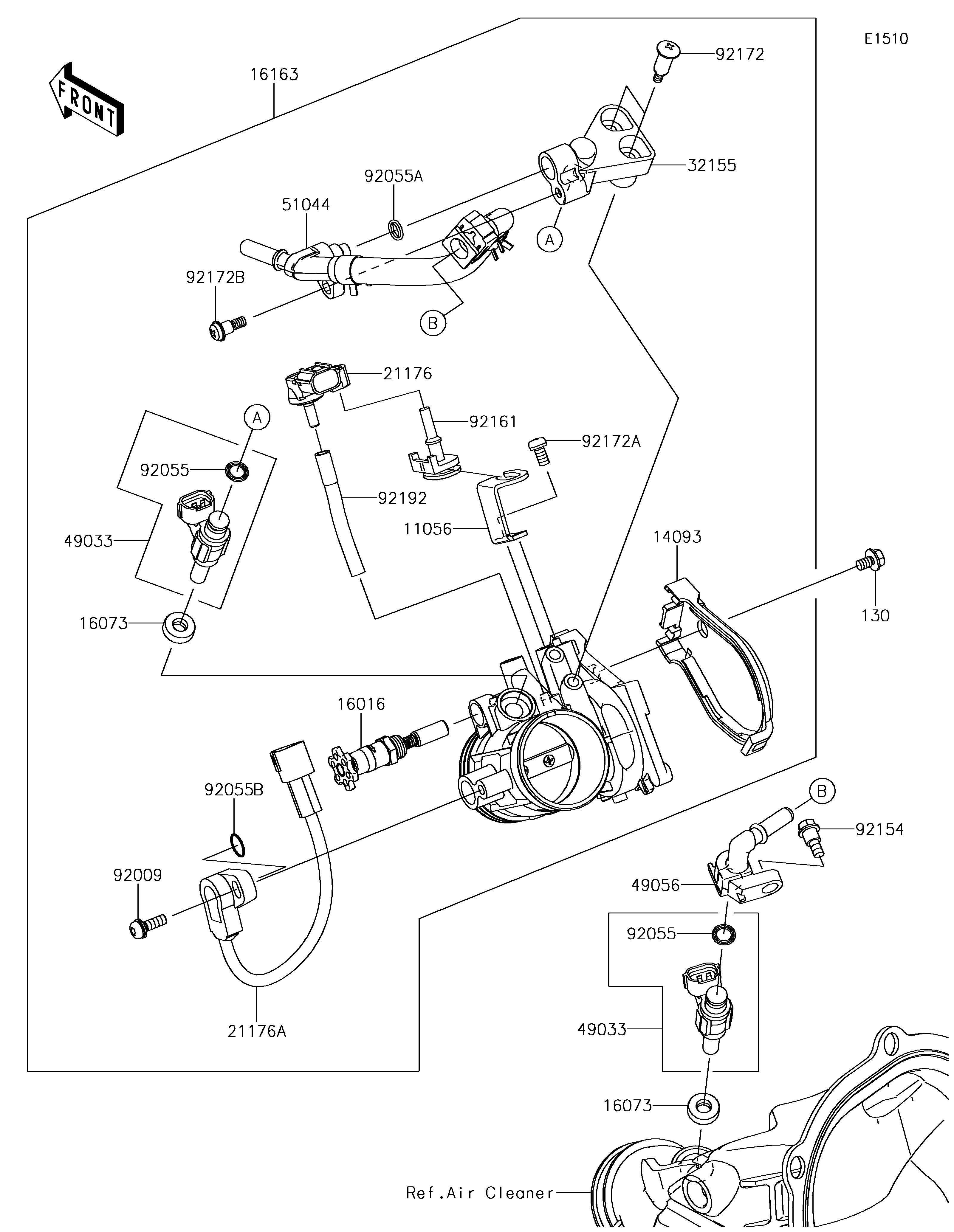

2019 KX™250 - Throttle

DOWNLOAD PDF
SELECT A NEW PART
11056
130
14093
16016
16073
16073
16163
21176
21176A
32155
49033
49033
49056
51044
92009
92055
92055
92055A
92055B
92154
92161
92172
92172A
92172B
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-7946 1
BOLT-FLANGED,5X8 130 130BA0508 1
COVER,THROTTLE DUST 14093 14093-0431 1
PLUNGER 16016 16016-0027 1
INSULATOR 16073 16073-0129 2
THROTTLE-ASSY 16163 16163-0917 1
SENSOR,PRESSURE 21176 21176-0111 1
SENSOR,THROTTLE POSITION 21176A 21176-0840 1
PIPE,FUEL 32155 32155-2219 1
NOZZLE-INJECTION 49033 49033-0556 2
PIPE-INJECTION 49056 49056-0048 1
TUBE-ASSY 51044 51044-0829 1
SCREW,THROTTLE SENSOR 92009 92009-1981 1
RING-O,INJECTION NOZZLE 92055 92055-0124 2
RING-O 92055A 92055-0872 1
RING-O 92055B 92055-1671 1
BOLT,FLANGED,5X8 92154 92154-1021 1
DAMPER 92161 92161-0673 1
SCREW,PIPE INJECTION 92172 92172-0064 2
SCREW 92172A 92172-0393 1
SCREW 92172B 92172-0776 1
TUBE 92192 92192-1748 1
